Description
Article no.: 296
Latest monitor from lilliput.Very slim with a weight of only 365g. High resolution with shutter controll and audio meter.
Includes:
1pc Lcd monitor
1pc Sunhood
1pc shoemount
1pc Sony np-f570 6000 mah battery
1pc Sony charger
2pc battery plates .QM91D, and F970
1pc Hdmi to minihdmi cable 0.5m
1pc powersupply
1pc stativ
4 shutter cables for canon and nikon
Functions:

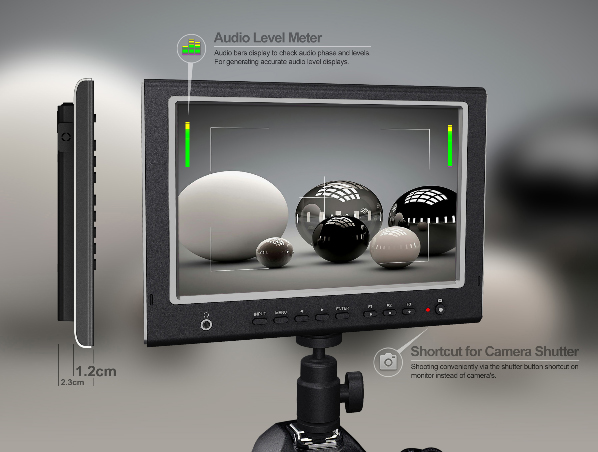

Shutter controll
Audio meter
Peaking
zebra/exposure
False color
Histogram
5d-II camera
color mode
Underscan
Overscan
Centermarker
Aspect ratio
Specs:
Screen size (diagonal): 7"
Aspect ratio: 16:9
Resolution: (pixels) 1280x800 (native), 1920×1080 (maximum)
Pixel pitch (mm): 0.135×0.135
Scan frequency (Hz:) 60-72
Response time (ms): 6
Viewing angle (degrees) 178
Brightness (cd/m²): 400
Contrast ratio: 800:1
LCD backlight: LED
Video inputs: HDMI
Video outputs: HDMI
Audio outputs: <1W
Touch screen inputs: None
Input power source: DC 12V
﹒HDMI/ SDI Supported formats:
﹒1080/24p/24psf/25p/30p/50i/60i/50p/60p；
﹒720/50p，720/60p、480i；576i、576p
Includes:
1pc Lcd monitor
1pc Sunhood
1pc shoemount
1pc Sony np-f570 6000 mah battery
1pc Sony charger
2pc battery plates .QM91D, and F970
1pc Hdmi to minihdmi cable 0.5m
1pc powersupply
1pc stativ
4 shutter cables for canon and nikon
Functions:
Shutter controll
Audio meter
Peaking
zebra/exposure
False color
Histogram
5d-II camera
color mode
Underscan
Overscan
Centermarker
Aspect ratio
Specs:
Screen size (diagonal): 7"
Aspect ratio: 16:9
Resolution: (pixels) 1280x800 (native), 1920×1080 (maximum)
Pixel pitch (mm): 0.135×0.135
Scan frequency (Hz:) 60-72
Response time (ms): 6
Viewing angle (degrees) 178
Brightness (cd/m²): 400
Contrast ratio: 800:1
LCD backlight: LED
Video inputs: HDMI
Video outputs: HDMI
Audio outputs: <1W
Touch screen inputs: None
Input power source: DC 12V
﹒HDMI/ SDI Supported formats:
﹒1080/24p/24psf/25p/30p/50i/60i/50p/60p；
﹒720/50p，720/60p、480i；576i、576p
