Lilliput 10.1" A11 4K HDMI & 3G-SDI Monitor with L-Series Battery Plate

Lilliput 10.1" A11 4K HDMI & 3G-SDI Monitor

The Lilliput 10.1" A11 4K HDMI & 3G-SDI Monitor is a compact and powerful field monitor tailored for video professionals using DSLR and mirrorless cameras. With its Full HD panel, this monitor delivers stunning visuals, ensuring that every detail of your footage is captured with clarity and precision.

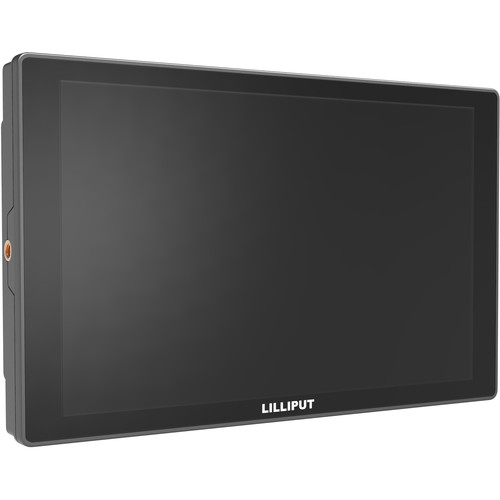

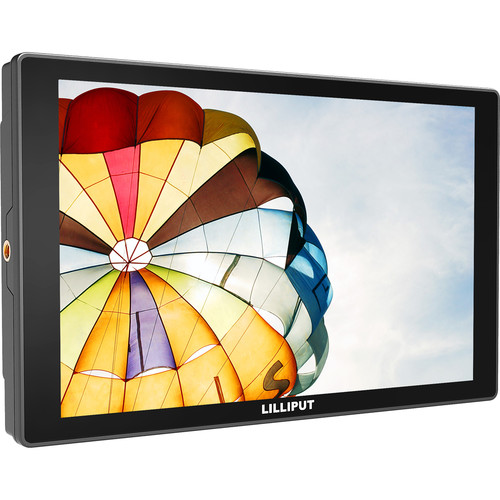

Crisp 10.1" Display

Featuring a 10.1" LCD panel, the A11 monitor boasts a brightness of 320 cd/m² and a contrast ratio of 1000:1. This combination provides vibrant colors and sharp images, making it easy to view your content in various lighting conditions. The rich 8-bit color depth enhances the overall viewing experience, allowing for accurate color representation.

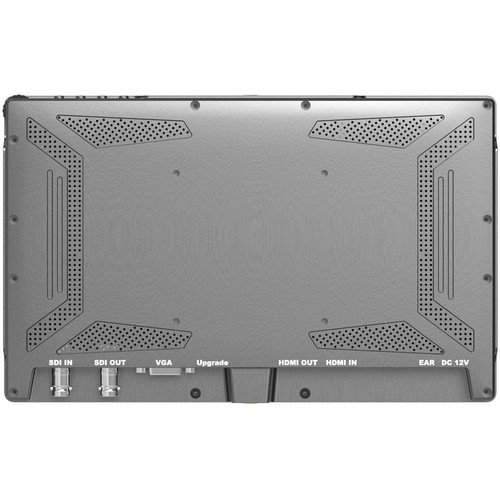

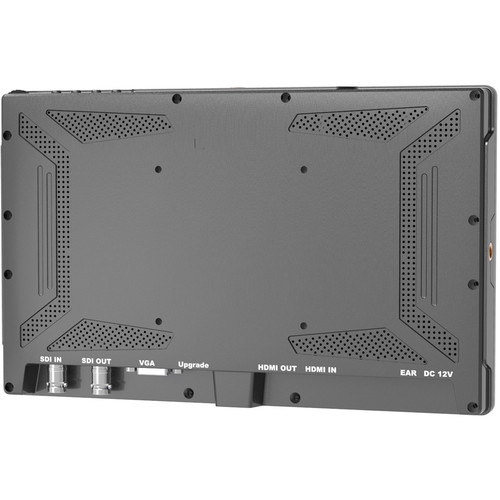

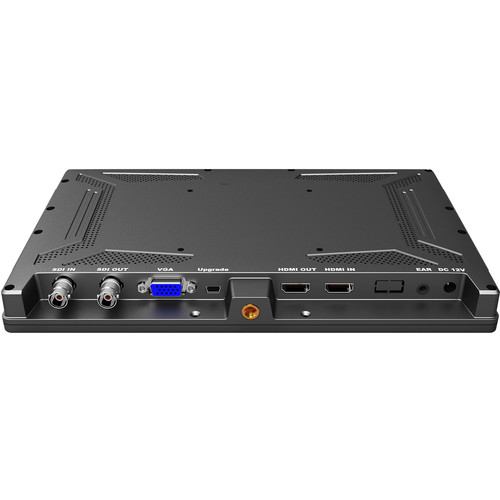

3G-SDI & 4K HDMI Input/Output

Equipped with both 4K HDMI and 3G-SDI input/output options, the A11 monitor ensures compatibility with a wide range of devices. Whether you are connecting to a camera or other video equipment, the monitor supports 4K30 HDMI and 3G-SDI signals, providing flexibility for your production needs.

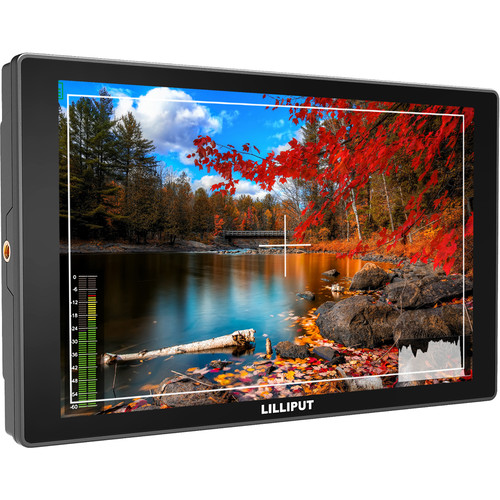

Integrated Monitoring Tools

The A11 comes with a suite of integrated tools designed to assist in precise video monitoring. Features such as focus peaking, histogram, false color, and zoom allow you to fine-tune your shots with confidence. Additionally, two user-assignable buttons enable quick access to your most frequently used tools, streamlining your workflow.

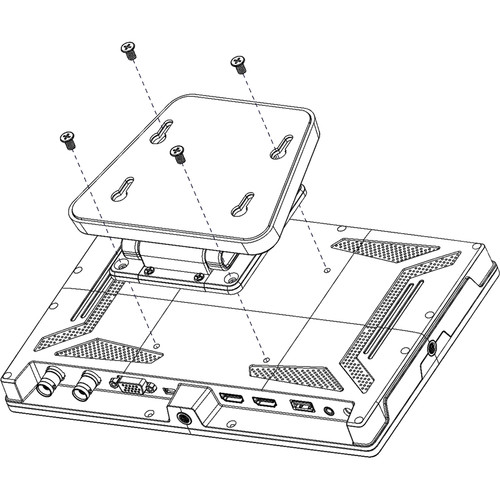

Power & Mounting Options

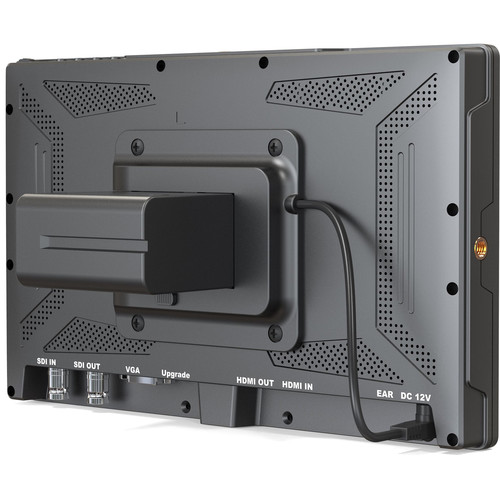

Powering the A11 monitor is straightforward, as it includes a Sony L-series type battery plate. For added versatility, you can also use a V-mount or Gold mount battery plate, ensuring you have the power you need for extended shoots. The monitor features a 1/4"-20 mounting thread and a 75 x 75mm VESA pattern, providing multiple mounting options for your setup.

Enhanced Viewing Angles

With a horizontal and vertical viewing angle of 175°, the A11 monitor allows for easy viewing from various positions. This feature is particularly beneficial when working in collaborative environments or when multiple crew members need to monitor the footage simultaneously.

Included:

Lilliput 10.1" A11 4K HDMI & 3G-SDI Monitor with L-Series Battery Plate
Sony L-Series Type Battery Plate
AC Adapter

Specifications:

- Display: 10.1" LCD panel
- Brightness: 320 cd/m²
- Contrast Ratio: 1000:1
- Color Depth: 8-bit
- Viewing Angle: 175° horizontal and vertical
- Inputs/Outputs: 4K30 HDMI, 3G-SDI, VGA
- Integrated Tools: Focus peaking, selectable aspect ratios, exposure control, false color, histogram, zoom, audio meter
- User-Assignable Buttons: 2
- Power: Sony L-series battery plate included; compatible with V-mount or Gold mount plates

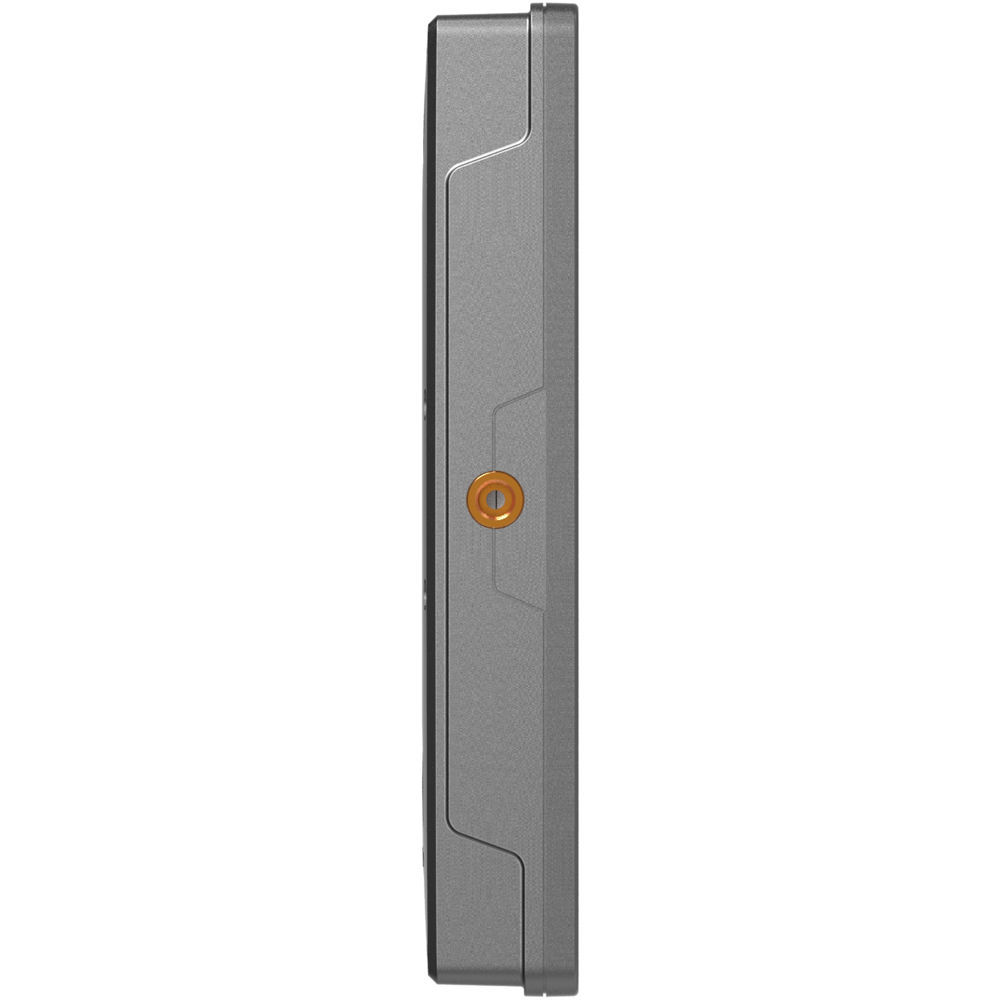

- Mounting: 75 x 75mm VESA pattern, 1/4"-20 mounting thread
- Input Voltage: 7 to 24V DC
