Lilliput RM-7028S Dual 7" 3U 3G-SDI Rackmount

Lilliput RM-7028S Dual 7" 3U 3G-SDI Rackmount

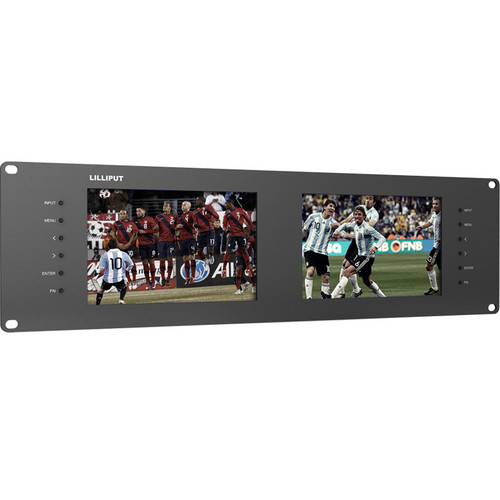

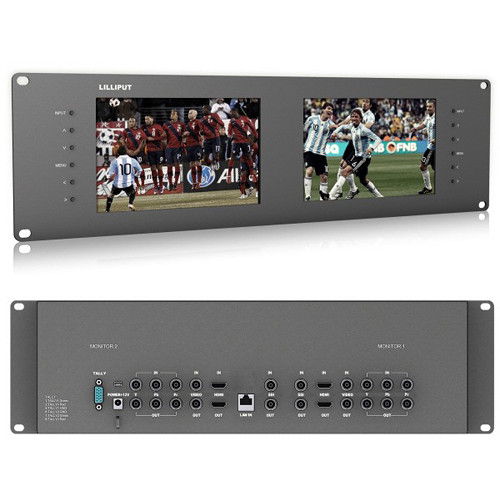

The Dual 7" 3U 3G-SDI Monitor Rackmount from Lilliput features two 7" IPS panels with a native resolution of 1280 x 800. The monitors are equipped with a 3G-SDI connectivity and can be mounted in a 3U rack system or events managers board. They are fitted with a 2674 processing chip that gives a greater range of input frequencies. This DSLR optimized system is compatible with professional multimedia and video equipment.

Features:

• Compatible with Black Magic Pocket Cinema camera
• Twin 7" IPS monitors with widescreen aspect
• 800:1 contrast ratio gives accurate color representation
• Sunlight readable with a 400 cd/m2 brightness output
• DSLR optimized system
• 3G SDI, HDMI, component (YPbPr), and composite connectivity

Included:

Lilliput Dual 7" 3U 3G-SDI Monitor Rackmount
12V/2A Power Adapter (UK,EU,US)
Limited 1-Year Warranty

Specs:

Screen Size (Diagonal)	2 x 7" (17.8 cm)
Screen Type	IPS LED screen
Aspect Ratio	16:9
Native Resolution	1280 x 800
Maximum Resolution	1920 x 1080
Viewing Angle	178°/178°
Brightness	400 cd/m2
Contrast Ratio	800:1

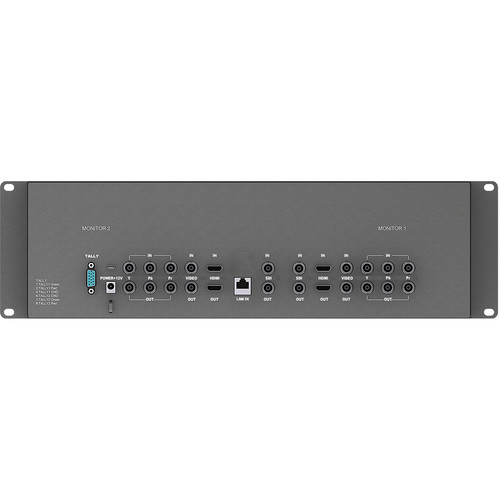

Video Inputs	2 x 3G-SDI 2 x HDMI 2 x YPbPr 2 x Composite 2 x Tally connection 1 x USB mini
Video Outputs	2 x 3G-SDI 2 x HDMI 2 x YPbPr 2 x Composite
Input Voltage	12 VDC
Operating Temperature	-4 to 140°F (-20 to 60°C)
Dimensions	5.3 x 19 x 1" (13.4 x 48.3 x 2.5 cm)
Weight	6.4 lb (2.9 kg)

Packaging Info
Package Weight	6.85 lb
Box Dimensions (LxWxH)	23.4 x 7.0 x 3.8"
