Description
Article no.: 7626

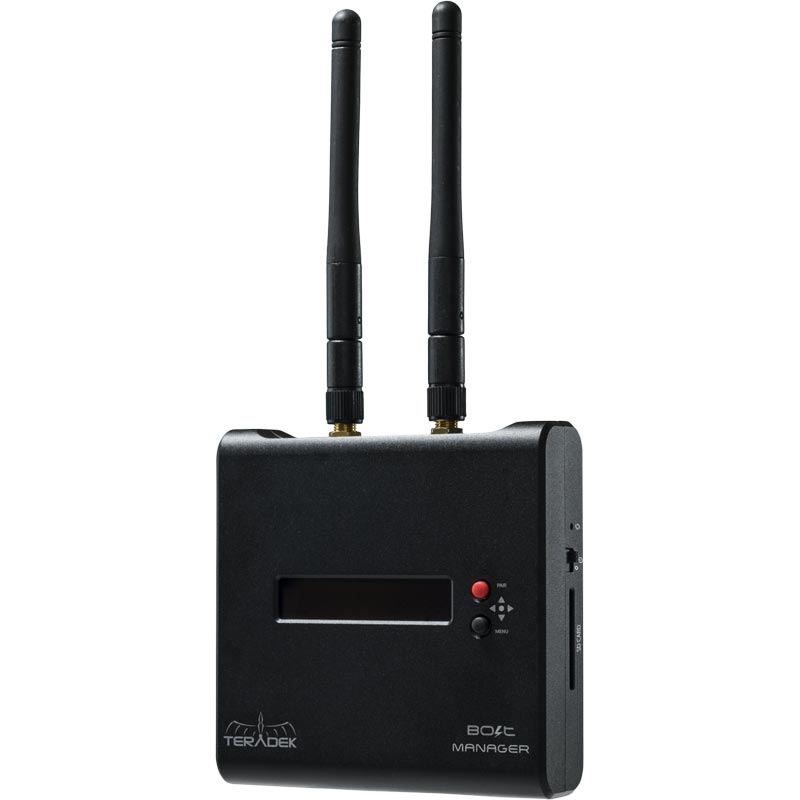

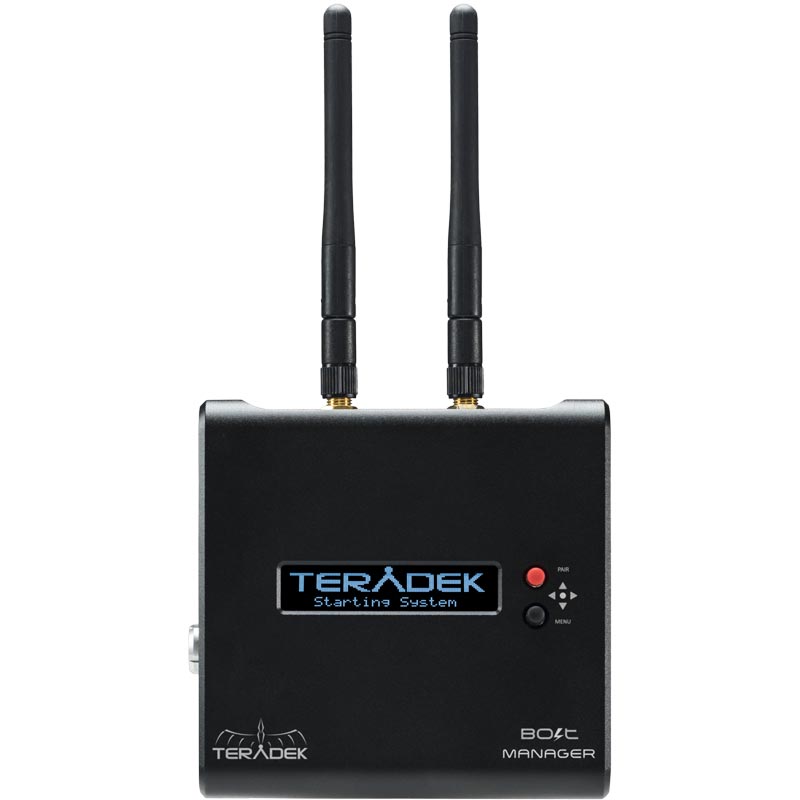

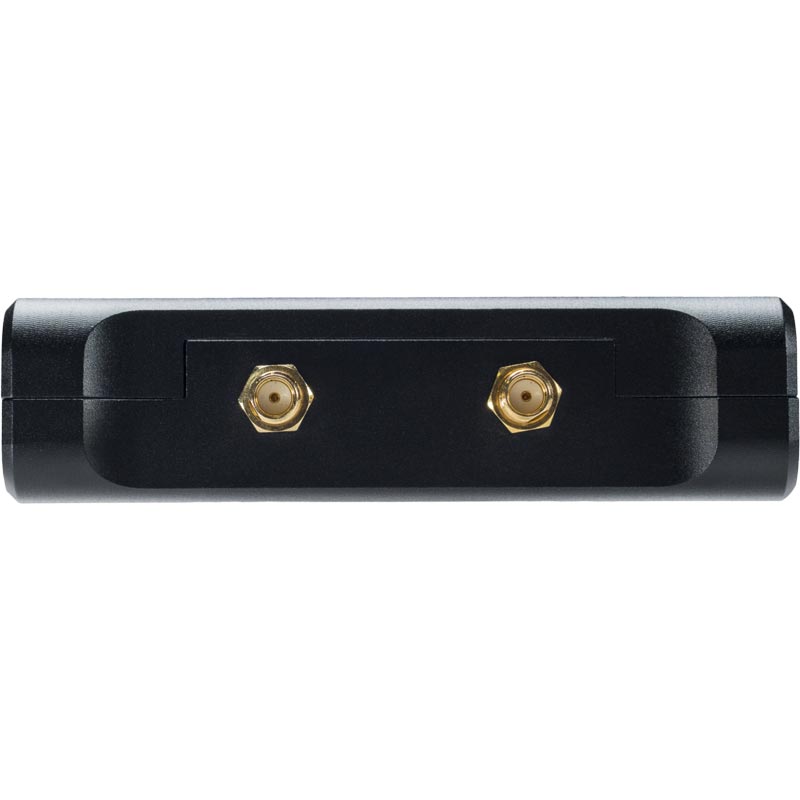

Teradek Bolt Manager
- Quick configuration tool for all Bolt models (3rd Generation or newer)
- Update firmware & pair receivers with the click of a button
- Manage channels across a multi-receiver set
- Does not require a computer
- Connect up to 4 receivers at once
Specifications
- Material: Machined Aluminum, black anodized & lasered
- Dimensions: Approx 5in x 5in x 2in
- Weight: 8.7 oz
- Mountability: table top, with rubber feet
- Output Voltage: 14.4V max from D-Tap Connector

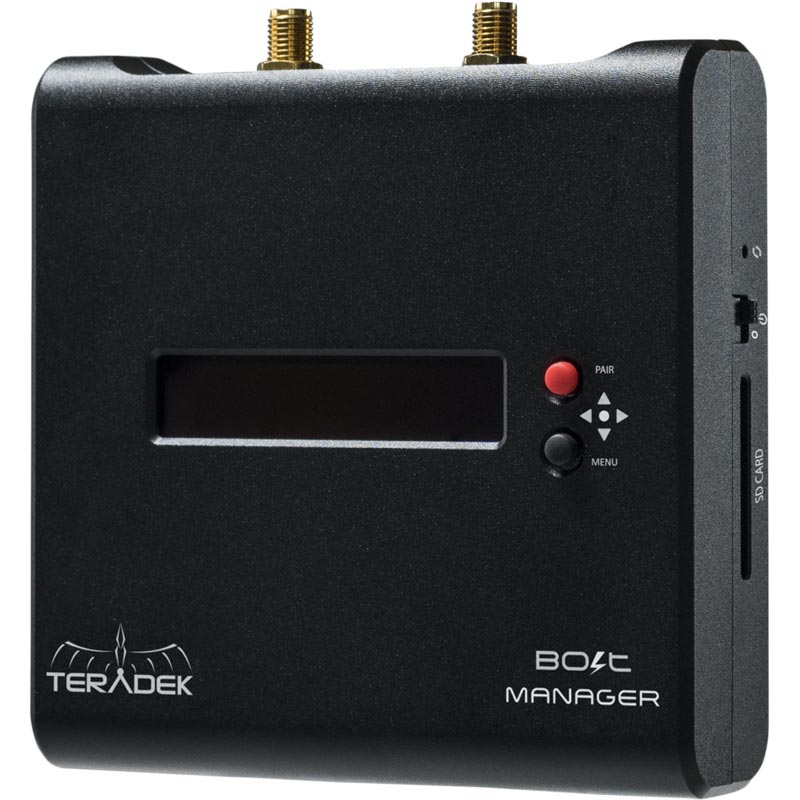

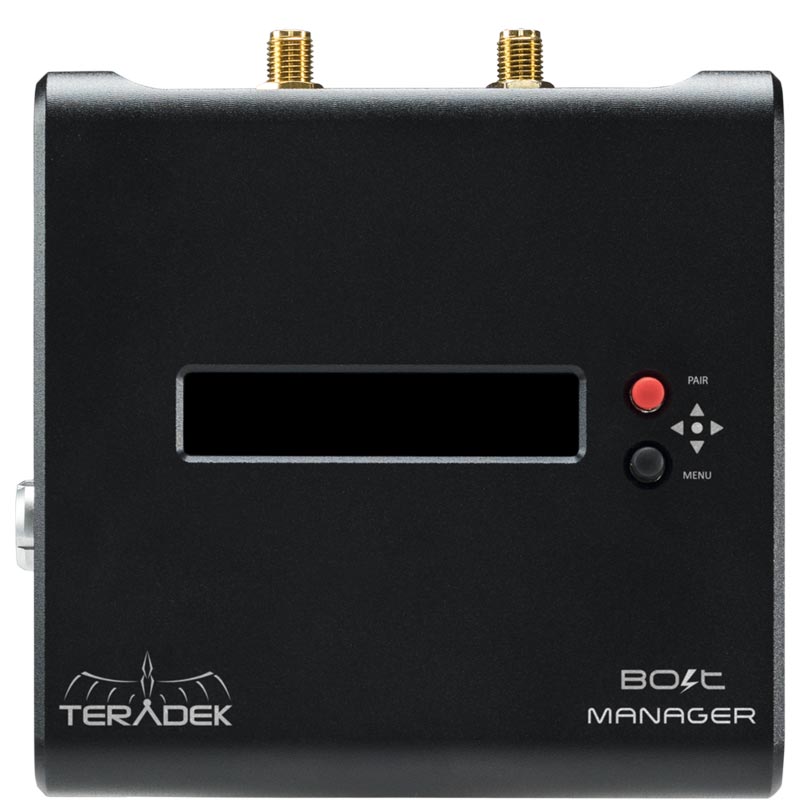

- Configuration Interfaces: OLED with 2 x joysticks and status LEDs | WebUI for firmware upgrade

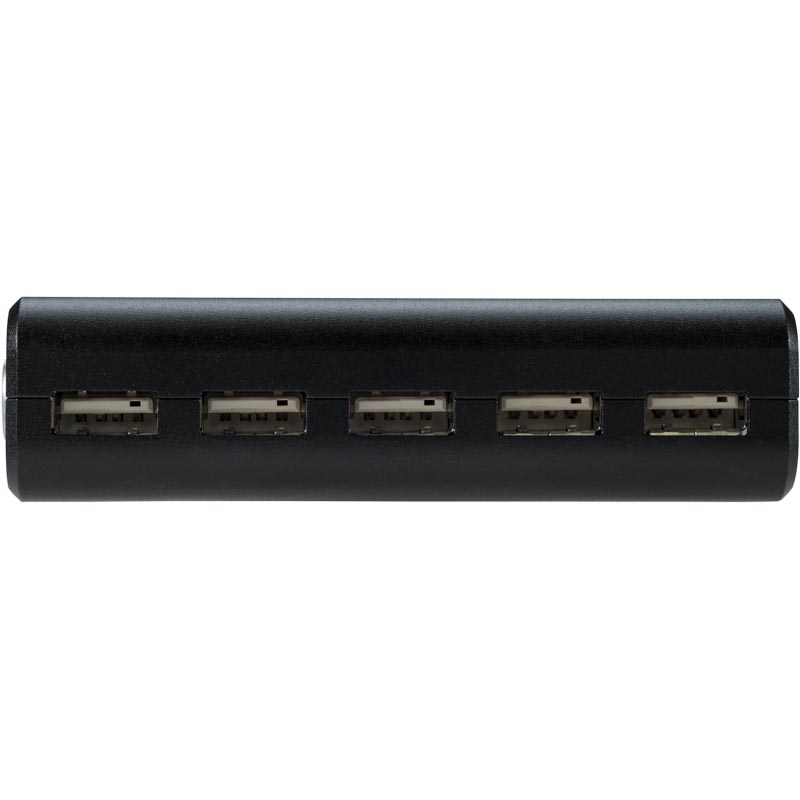

- Usb Interface Functionality: 5 Powered USB 2.0 host port | Upgrade via Mini-USB

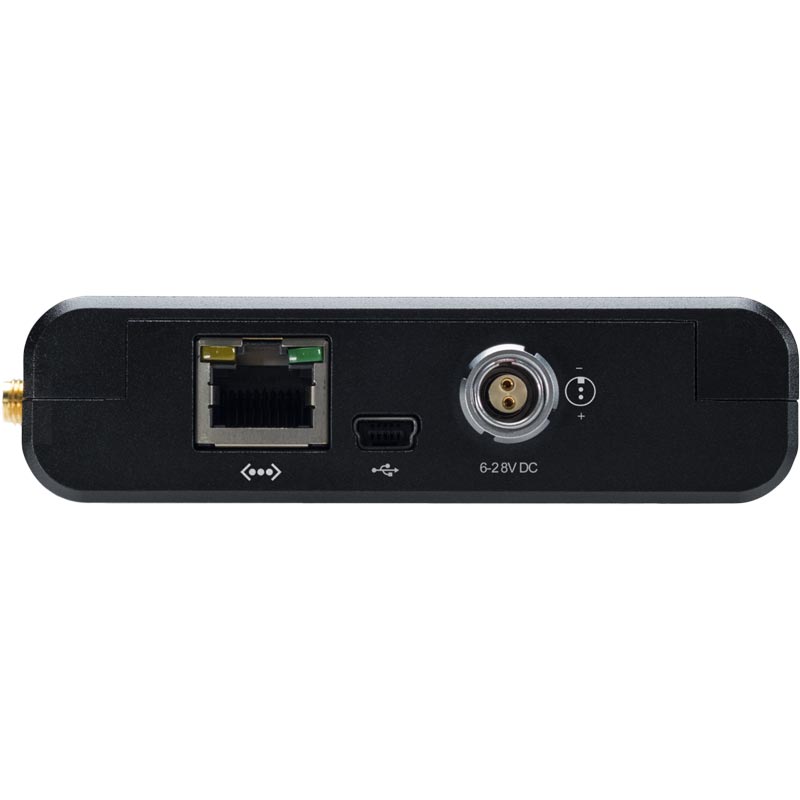

- Power Input: 2 pin-connector 6-28V DC
- Battery: None
- Operating Temperature: 0 - 50 degrees C ambient
- Humidity: 0-95% non-condensing
- Ethernet: 10/100BASE-T
- Wireless: WiFi: Dual Band MIMO 802.11 a/b/g/n

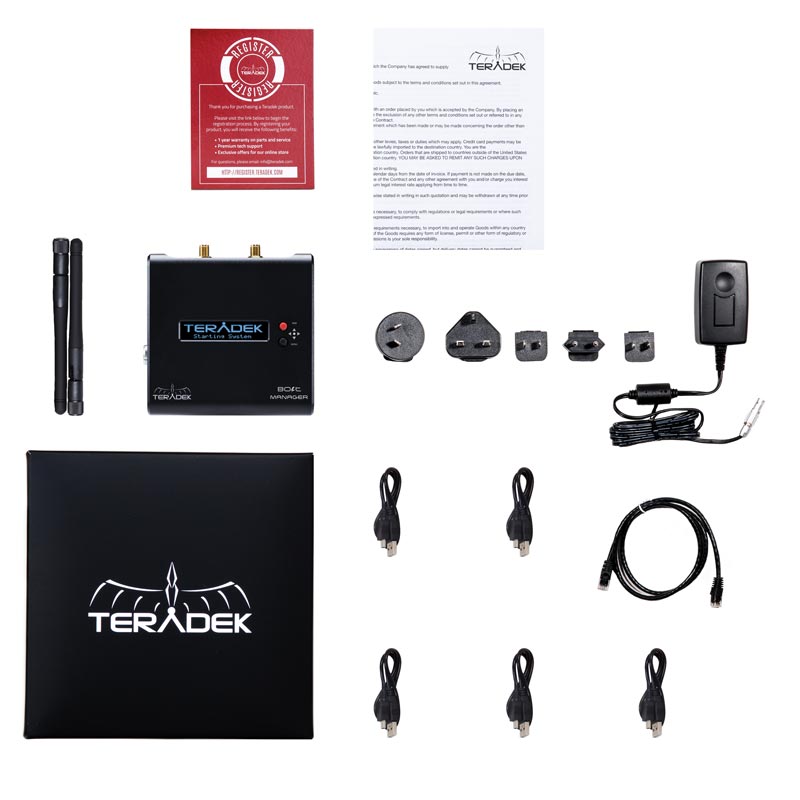

Included:
- 2x 2dBi Wifi 2.4/5.8 GHz
- 1x 2-pin Connector to PowerTap 18 inch Cable
- 5x Mini USB (5pin) to USB - 18 inch Cable
- 1x Ethernet Cable
