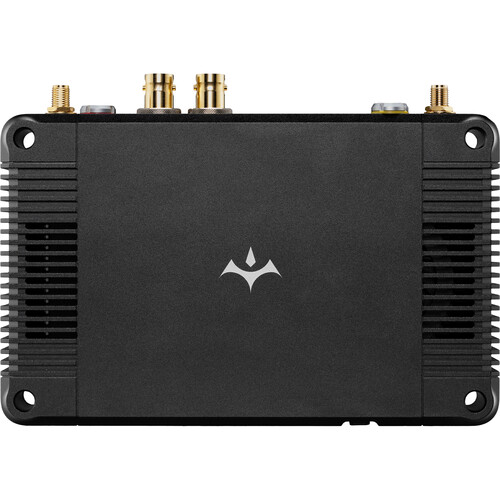

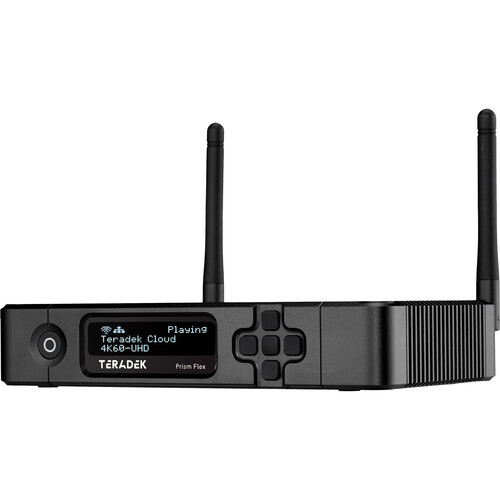

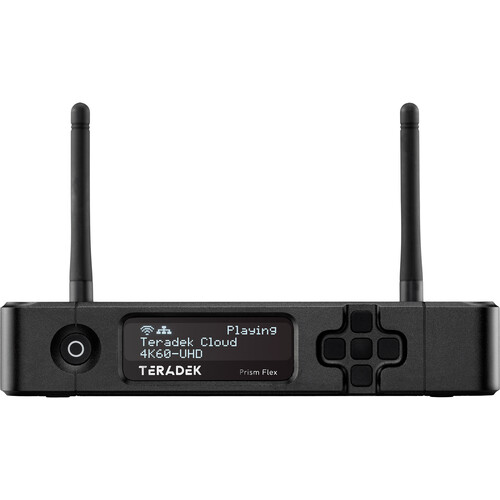

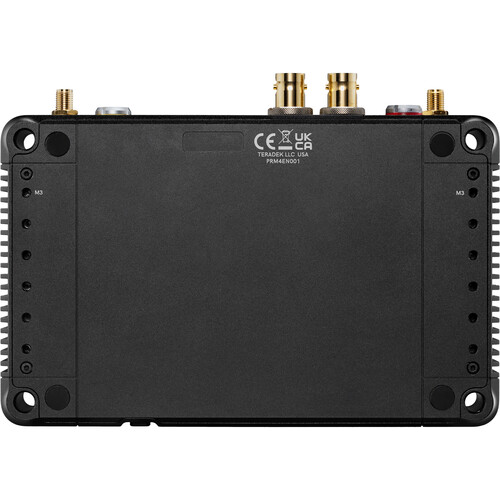

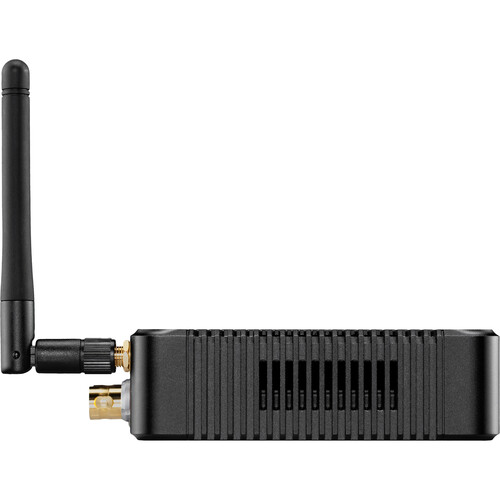

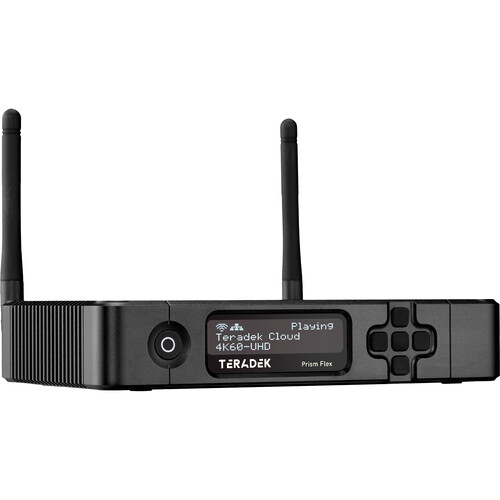

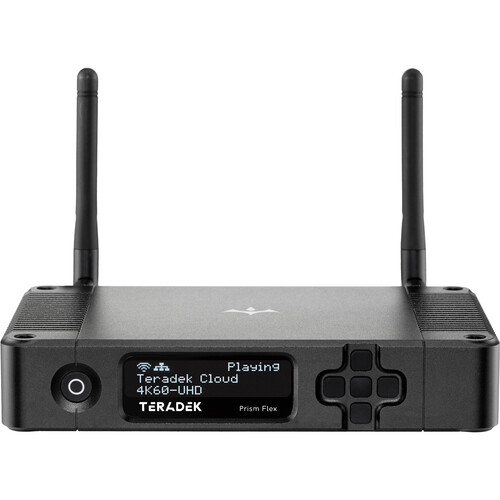

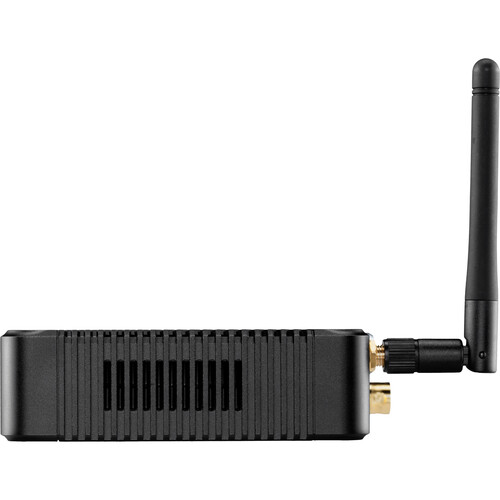

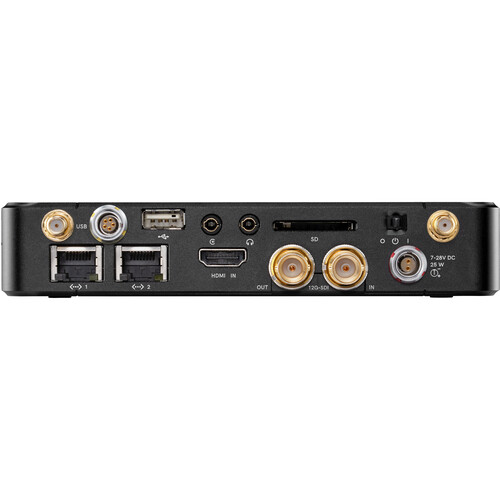

Teradek Prism 856 Prism Flex Mk II HEVC/AVC 12G-SDI/HDMI Encoder
£4,350
- VAT free purchase available at checkout.
- BrandTeradek
Description
Article no.: 9878
Teradek Prism 856 Prism Flex Mk II HEVC/AVC 12G-SDI/HDMI Encoder
Prism Flex Mk II is engineered with a flexible I/O and a compact, low-SWaP design, making it an ideal fit for any workflow. Whether placed on a tabletop, atop a camera, or nestled between a video switcher and audio mixer, it seamlessly integrates into your setup. With the capability to encode or decode up to 4Kp60 video, it delivers exceptional 10-bit 4:2:2 image quality, supporting various streaming protocols like TRT, SRT, MPEG-TS, RTSP/RTP, and RTMP(S). Additionally, it connects effortlessly to Teradek's Core Cloud platform for enhanced operational flexibility.The Compact Solution
Prism Flex stands out as the professional's go-to tool for live production, offering ultra-low latency and 4K HDR streaming within a low-SWaP design. Its compact form factor ensures it fits effortlessly into any video workflow, making it a versatile asset for professionals in the field.Enterprise Performance
Delivering ultra-reliable, low-latency, and high-quality streaming, Prism Flex excels in performance. It supports HEVC and AVC streaming, allowing users to choose from a wide range of protocols to transmit video feeds to CDNs, decoders, and various software solutions, ensuring optimal delivery of content.On-Board Recording
With Prism Flex, you can record your live feed and upload content directly to Core Cloud for archiving or low-latency distribution to clients and stakeholders. Collaborations with Frame.io, Sony, and PIX enhance its capabilities, providing built-in camera-to-cloud functionality for streamlined production workflows.Designed for Size, Weight, and Power
Prism Flex is meticulously designed to deliver broadcast-grade performance while being compact and power-efficient. Weighing just 11.6oz and consuming a maximum of 24W, it is the perfect encoder for large-scale, set-and-forget streaming video deployments, making it an ideal choice for those with space and power constraints.Add Reliability When You Need It the Most
Enhance your connectivity with our high-performance modems, designed to deliver a reliable internet connection even in the most demanding network conditions. Featuring a sturdy aluminum chassis, versatile 3¼"-20 mounting options, and a secure 5-pin locking connector for seamless integration with your Prism Flex, these modems ensure durability and ease of use. With global SIM compatibility and support for a wide range of data bands, our Nodes are equipped to work with nearly any SIM card, providing you with the flexibility you need for uninterrupted streaming over LTE, 5G, and private mobile networks.Features:
- Ultra-Low Latency: As low as 100ms over WAN
- Network Flexibility: WiFi, Ethernet, & Cellular
- Camera-to-Cloud: Frame.io, Sony C3P, Sony Ci, PIX
- From HD to 4K: 4:2:2 | 10-bit HDR
- On-Board Recording: Store and Forward
- Multiple Protocols: SRT, TRT, RTMP(S), and more
Specifications:
- Video
Video Inputs - 1x 12G/6G/3G/HD/SD-SDI (75 Ω BNC)
- 1x HDMI 2.0 Type-A receptacle
Video Outputs - 1x 12G/6G/3G/HD/SD-SDI (75 Ω BNC)
Supported Nodes - Single Encode, Bi-directional Encode/Decode (additional license)
Supported Resolutions - 4K DCI: p23.98/24/25/29.97/30/59.94
- 4K UHD: p23.98/24/25/29.97/30/50/59.94/60
- 1080p: 23.98/24/25/29.97/30/50/59.94/60
- 1080i: 50/59.94/60
- 1080PsF: 23/24/25/29/30
- 720p: 50/59.94/60
- 576i
- 480i
Audio
Audio Compression - AAC-LC
Audio Bitrate - 32kbps to 512kbps
Audio Sample Rate - 48kHz
Audio Input - Embedded over SDI and HDMI, 3.5mm TRRS Stereo
- Line Level Analog or Microphone in, adjustable gain
Audio Output - 3.5mm TRRS Stereo Headphone output, adjustable gain
IFB - Analog 3.5mm Line Level, USB-A Headset or Audio Interface (< 1.5A)
Licensable Features
Enable Extra Streams - Extra simultaneous destinations
Enable Decoding - Enabled ability to decode to SDI output
De-Bonding Decoder - N/A
Video Processing
Video Compression/Decompression - ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
- AVC: Baseline, Main, High
- ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
- HEVC: Main
Video Bitrate - 250 Kbps to 85 Mbps
Video Format Conversion Support - Build in video scaler and deinterlacer
Number of Encoded/Decoded Streams - Up to one 4KDCI p60 4:2:2 10bit
HDR Support - Yes (2020-PQ, 2020-HLG, P3D65-PQ)
Color Correction - CDL/1024 1D LUT (supports 10-bit color)
- 33x33x33 3D LUT (supports 10-bit color)
Bonding - TeraLink
Recording - SD Card - Full size, USB Drive, NFS
Camera to Cloud - Core Cloud, Frame.io, Sony Ci, Sony C3 Portal, PIX, Moxion, Avid
Protocol Support
Network Protocols - TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Supported Video Transport Protocols - Teradek Reliable Transport (TRT)
- Teradek Bonding Protocol
- Secure Reliable Transport (SRT)
- Reliable Internet Stream Transport (RIST)
- RTMP/RTMPS
- MPEG-TS DASH (UDP, TCP, TCP Server, Multicast)
- RTSP/RTP
- HLS Server
- Integrated CDNs (YouTube, Facebook, Vimeo)
- Airmix
- WHIP
Remote Management - Teradek Core Cloud, Private SDK
Physical Attributes
Dimensions - 6.25"W x 3.6"D x 1.4"H [162 x 92 x 35mm]
Weight - Weight 11.6oz [328.9g]
Construction - Milled Aluminum
Mounting Options - Desktop, Four 1/4" 20 threaded mounting holes
Interfaces
Construction Interface - Feature-rich Web UI for local device management, configuration, and control, OLED Status Display w/Nav Control Buttons
USB Interface Functionality - 1x Powered 5-Pin Locking Connector with Node Modem support
- 1x Powered USB-A with Node and external storage support
Ethernet - 2x 10/100/1000 BASE-T Gigabit Ethernet (RJ45)
Wireless - WiFi: 2.4/5GHz 802.11 a/b/g/n/ac/ax MIMO - BLE for Network Configuration
Power
Power Input - 2-pin circular locking connector
Voltage - 6-28V DC
Nominal Power Consumption - 18W
- Video
