Teradek Prism Mobile Mk II Dual 4G HEVC/AVC Encoder V Mount
£6,503.75
Discover the ultimate in video simplicity with the Teradek Prism Mobile Mk II Dual 4G HEVC/AVC Encoder V Mount! Perfect for live streaming and high quality broadcasts. Order now and take your video production to the next level!
- VAT free purchase available at checkout.
- BrandTeradek
Description
Article no.: 9890

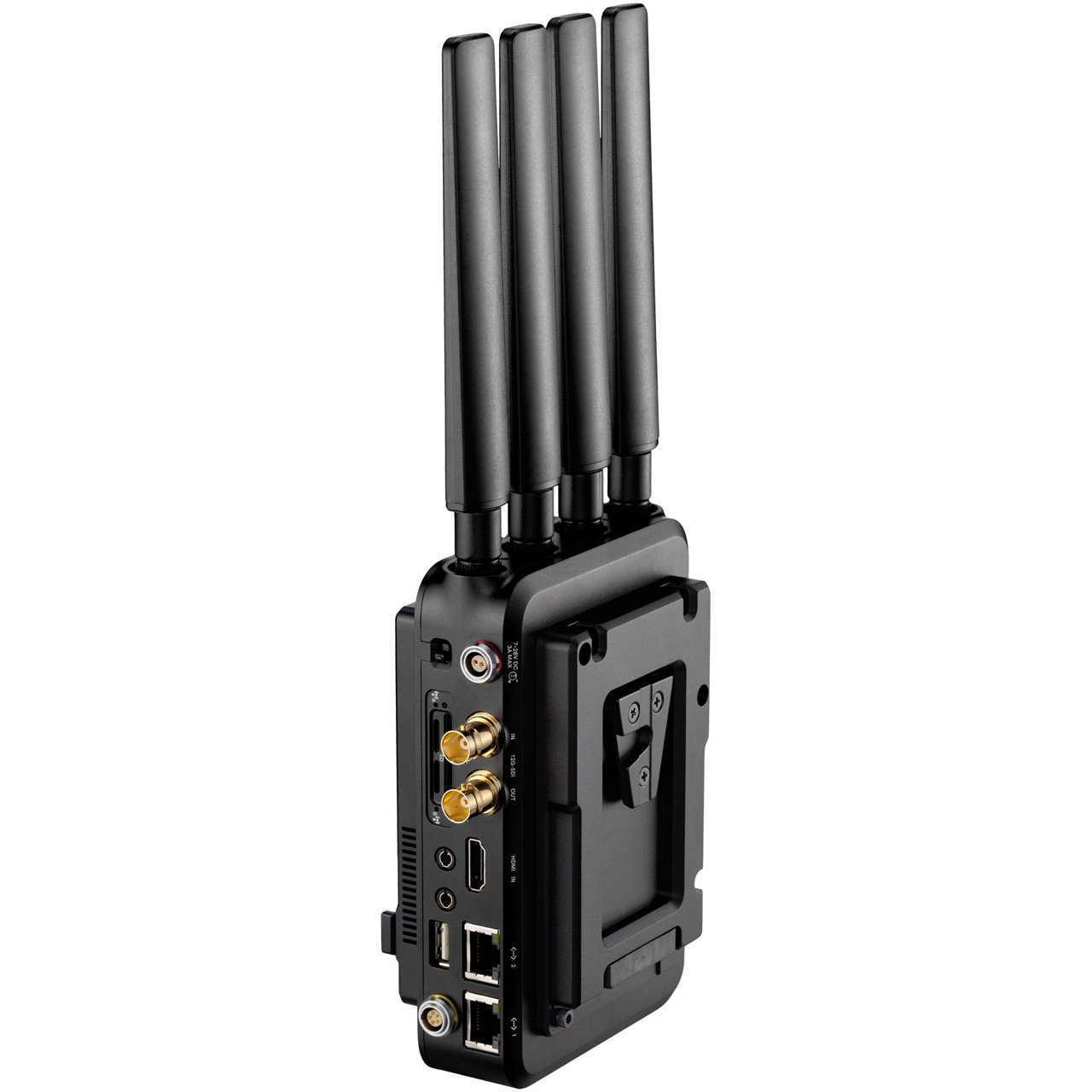

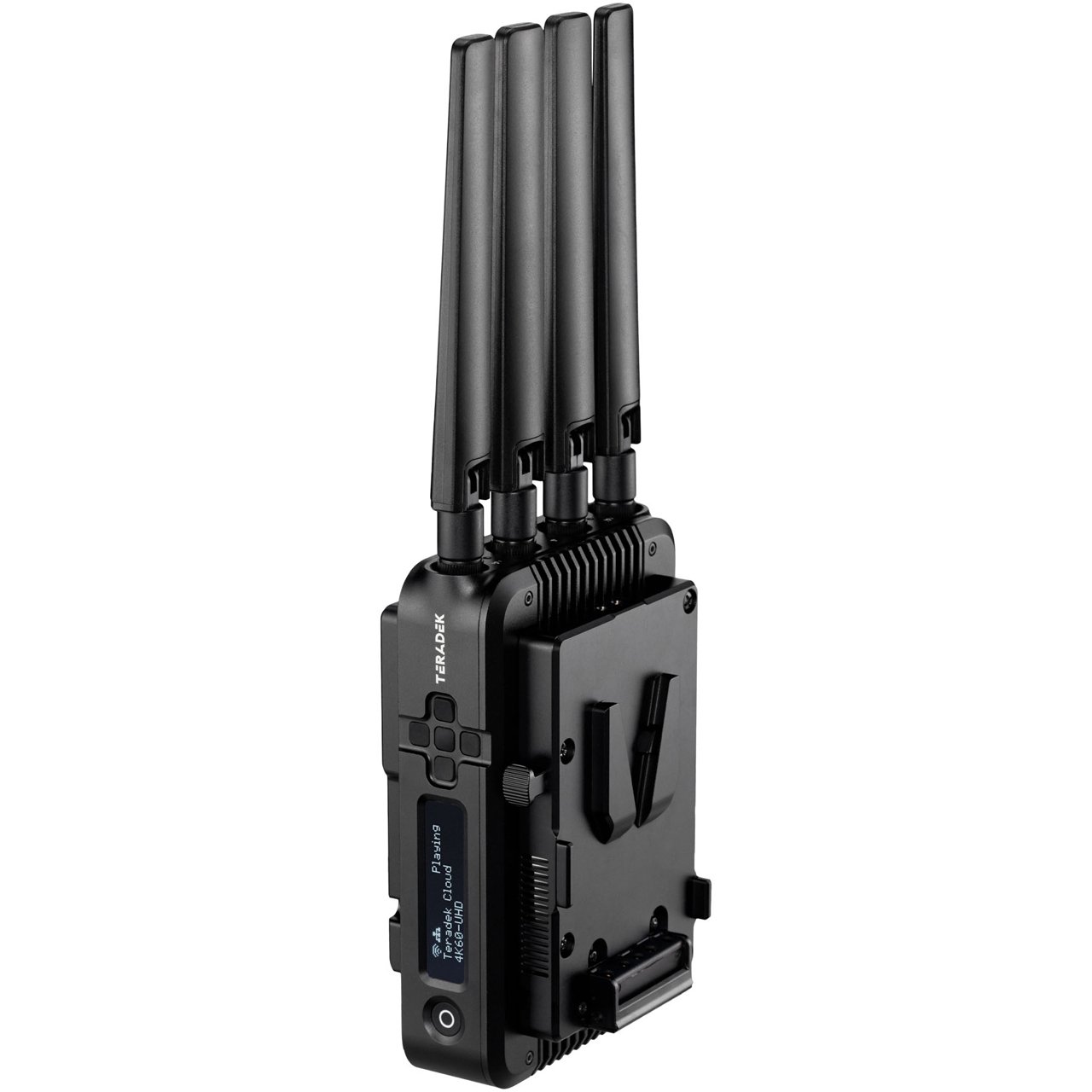

Teradek Prism Mobile Mk II Dual 4G HEVC/AVC Encoder V Mount

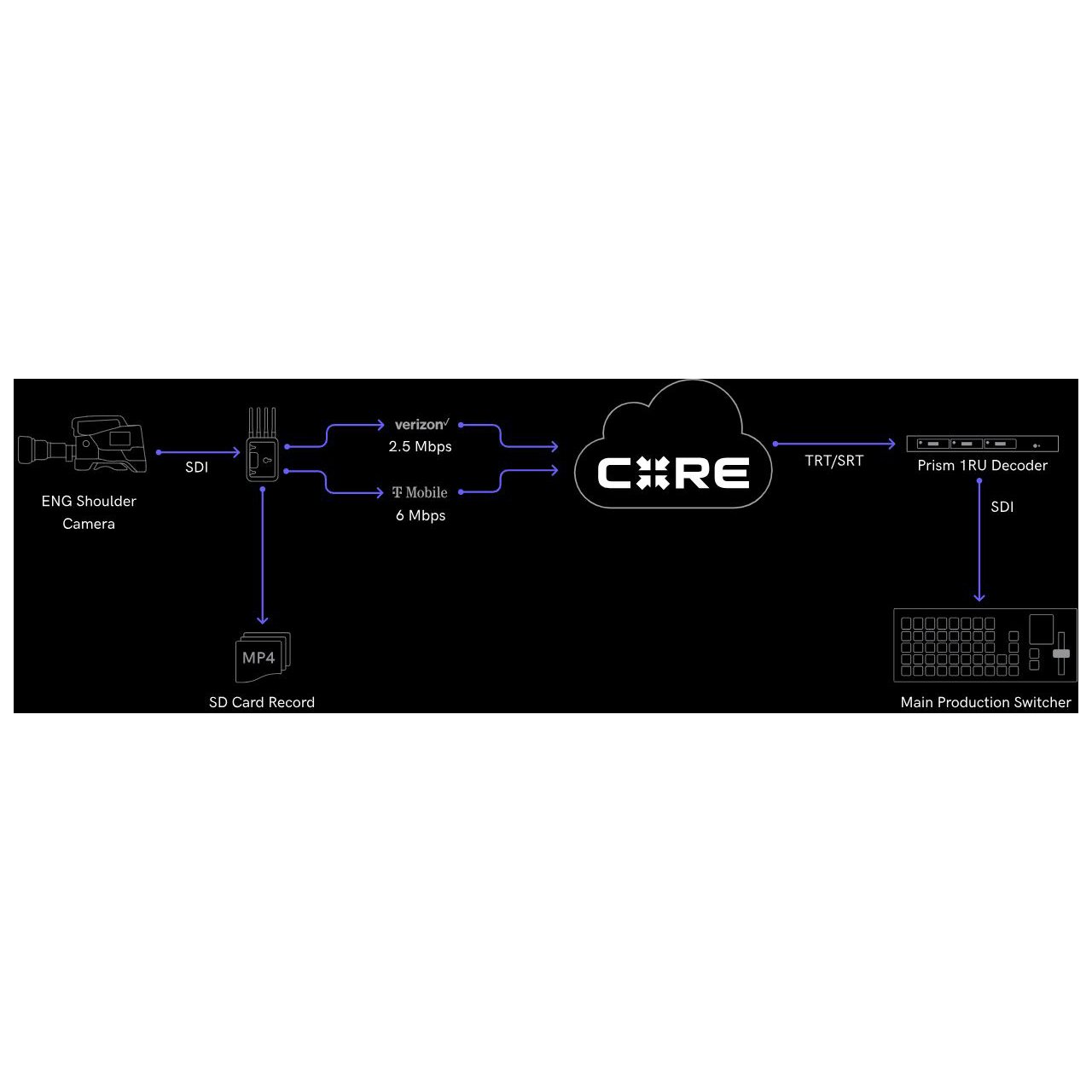

Prism Mobile is the lowest-SWaP, LTE-enabled camera-back video encoder in its class. Utilizing two internal LTE modems, Prism Mobile allows you to reliably contribute secure, low-latency, 4K HDR video from the most challenging locations by aggregating up to nine network sources.
Included
1 x Prism 857 Mobile HEVC/AVC with dual 4G LTE V-Mount
4 x Antenna Ext 600-6000 Mhz 5G Dipole SMA Male
1 x SIM Card Holder
1 x PSU 2pin Conn.to 30W AC Adapter (Int) - 6ft Cable
4 x Antenna Ext 0.617-3.8ghz SMA
2 x Teradek SIM Card
Specifications
Video +

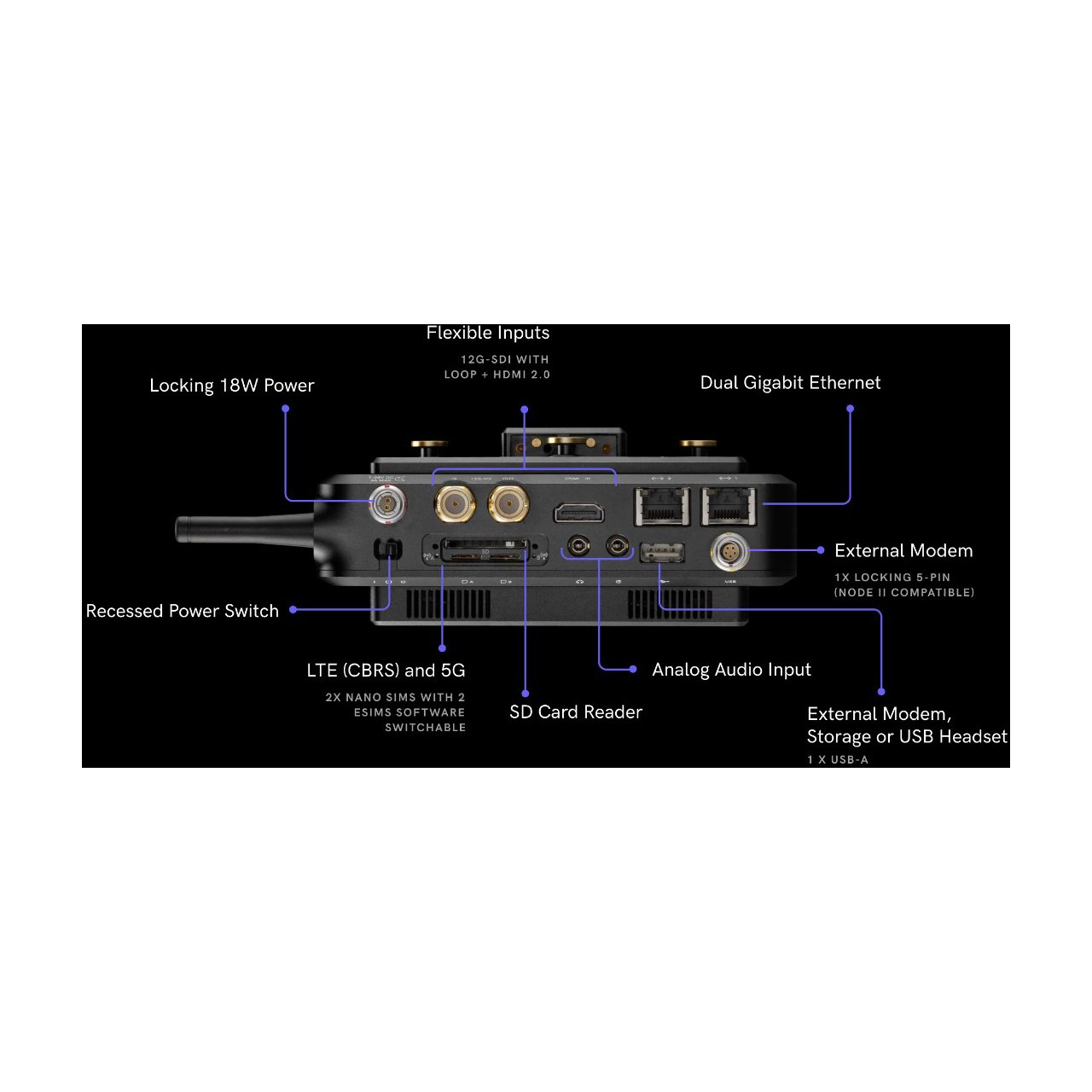

Video Inputs
- 1 x 12G/6G/3G/HD/SD-SDI (75 Ω BNC)
- 1 x HDMI 2.0 Type-A receptacle
Hdr Support
- Yes (Rec. 2100)
Video Outputs
- 1 x 12G/6G/3G/HD/SD-SDI (75 Ω BNC)
Bonding +
Bonding
- Support for up to 9 network inputs:
- 4x Cellular phones
- 2x Internal Node modems
- 1x External modem
- 2x Ethernet networks
Supported Resolutions +
Supported Resolutions
- 4K DCI p23.98/24/25/29.97/30/50/59.94/60
- 4K UHD p23.98/24/25/29.97/30/50/59.94/60
- 1080p 23.98/24/25/29.97/30/50/59.94/60
- 1080i 50/59.94/60
- 1080PsF 23/24/25/29/30
- 720p 50/59.94/60
- 576i
- 480i
Video Processing +
Video Compression
- ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
- AVC: Baseline, Main, High
- ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
- HEVC: Main
Supported Video Bitrate
- 250 Kbps to 85 Mbps
Video Format Conversion Support
- Built in video scaler and deinterlacer
Color Correction
- CDL/1024 1D LUT (supports 10-bit color)
- 33x33x33 3D LUT (supports 10-bit color)
Protocol Support +
Network Protocols
- TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Supported Video Transport Protocols
- Secure Reliable Transport (SRT), RTMP/RTMPS, MPEG-TS (UDP, TCP, TCP Server, Multicast), CDNs (YouTube, Facebook, Vimeo), RTSP/RTP
Remote Control
- Teradek Core
Audio Processing +
Audio Support
- Stero, 5.1 Surround Sound
Audio Compression
- AAC-LC
Supported Audio Bitrate Details
- 32kbps to 512 kbps
Audio Bitrate
- 48kHz
Inputs +
Audio Input
- Embedded over SDI and HDMI, 3.5mm TRRS Stereo Line Level Analog or Microphone in, adjustable gain
Outputs +
Audio Output
- 3.5mm TRRS Stereo Headphone output, adjustable gain
Physical +
Dimensions
- 5.9”W x 3.9”D x 1.3”H [162 x 92 x 35mm]
Weight
- 23.4oz [664g] without plates; 30.5oz (864g) with plates
Construction
- Milled aluminum
Mountability
- Camera-back, Gold, Gold 26V and V-Lock mounts
- Can be mounted using the 1/4” 20 mounting holes
Interfaces +

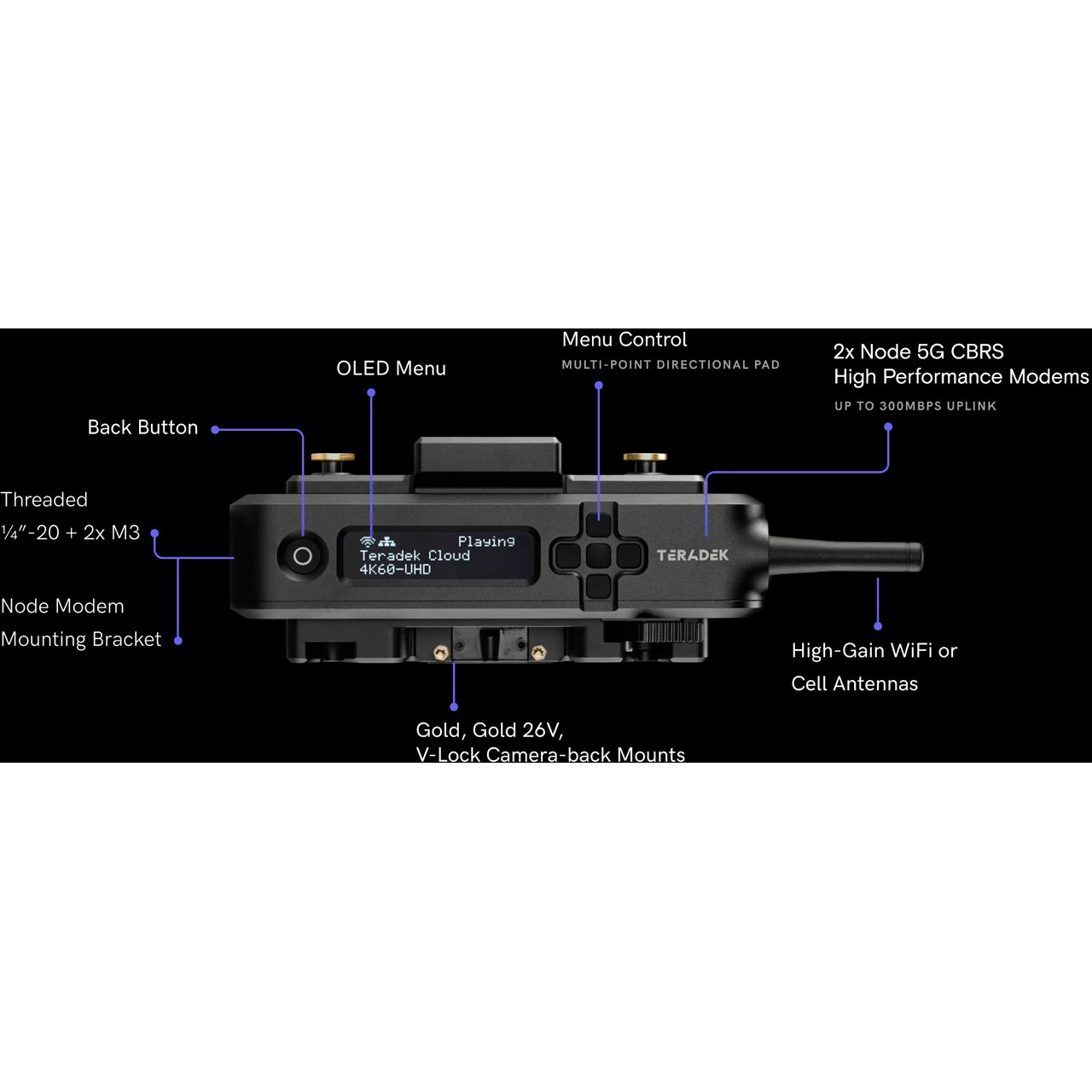

Configuration Interfaces
- Feature-rich Web UI for local device management, configuration, and control,
- Intuitive iOS configuration app (Prism App),
- OLED Status Display w/ Nav control buttons,
- Core for cloud based device management
Cellular
- 2x Internal Node II modems with dual switchable SIM slots,
- Supports up to 4 cellular SIM cards
Recording Storage
- Supported File Type - MP4, TS wrapper
- Supported Media - SD Card, USB, NFS
Usb Interface Functionality
- 1x Powered LEMO with Node II LTE/4G/3G Modem support
- 1x Powered USB-A with external storage support
Network +
Ethernet
- 2x 10/100/1000 BASE-T Gigabit Ethernet (RJ45)
Wireless
- WiFi: 2.4/5GHz 802.11 a/b/g/n/ac/ax MiMo
Power +
Power Input
- 2-pin circular locking connector, Gold, Gold 26V and V-Lock Battery Plates
Nominal Power Consumption
- 20W Nominal, 36W Max
Auxilary Power Input
- 6-28V DC
