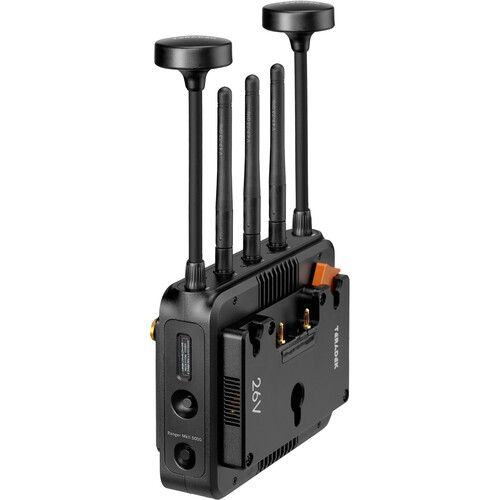

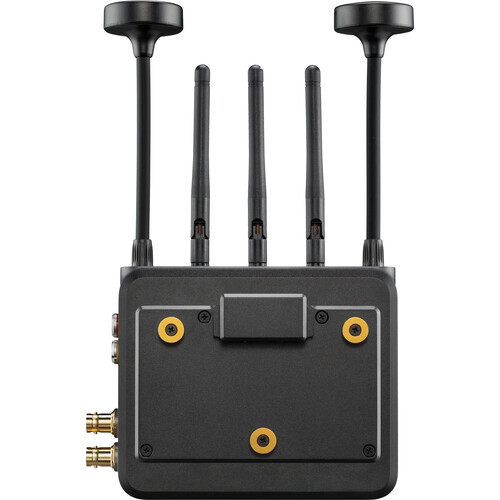

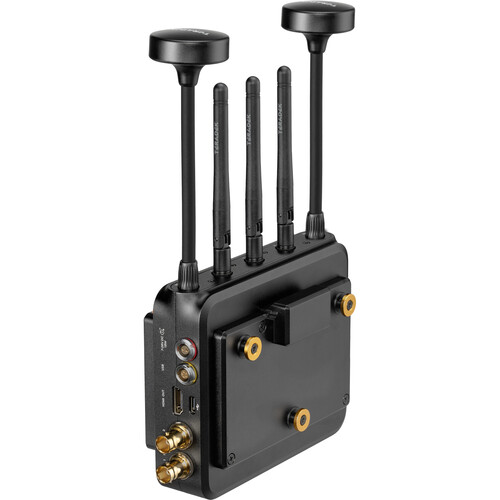

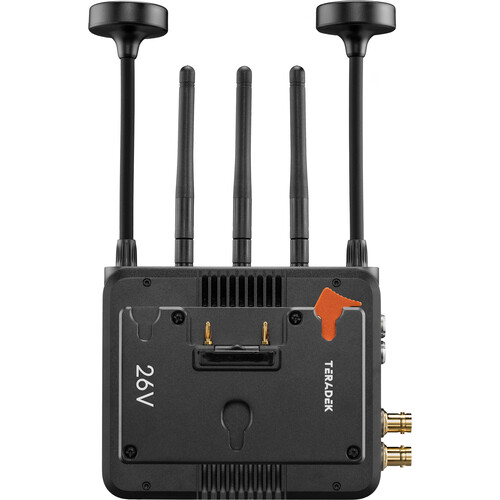

Teradek Ranger Mk II 5000 12G-SDI/HDMI - Wireless RX 26V Gold-Mount
- VAT free purchase available at checkout.
- BrandTeradek
Description
Article no.: 9876
Teradek Ranger Mk II 5000 12G-SDI/HDMI - Wireless RX 26V Gold-Mount
The average latency for RF-based wireless video transmission is 30.8ms, but the human eye can detect a delay as low as 13ms. To address this, Teradek has developed Ranger, the only wireless video solution that achieves true zero-delay transmission with less than 1ms latency while maintaining visually lossless picture quality. With the addition of 6GHz support (U-NII 5), users can now access 12 newly opened RF channels, ensuring operation without interference.Hardware Overview
Featuring state-of-the-art hardware designed for professional video production, the Ranger Series is powered by Emmy® and Academy Award-winning technology for zero-delay wireless video transmission. It offers an impressive maximum range of 5,000 feet (1,524 meters) and is compatible with various professional broadcast, sports, and ENG applications, including handheld gimbals, drones, and shoulder-mounted production cameras.Operate Over a Massive Spectrum
As the number of wireless devices increases and frequency bands become limited, maintaining a clear signal can be challenging. Ranger provides multiple options: 5 GHz for general use, licensed band frequencies for special events, and the new 6 GHz U-NII-5 band, which offers 12 new channels of uncongested wireless spectrum.Seriously, No Delay
A noticeable delay in audio and video transmission can hinder the viewer experience. Ranger’s patented zero-delay technology effectively eliminates this issue, allowing audio and video signals to be transmitted with ultra-low latency, even at 4K60, delivering a visually lossless and immersive experience for audiences. Families Stick Together Ranger systems are designed for flexibility, allowing any combination of Ranger TX and RX units to be paired together, regardless of model. This feature enables productions to scale quickly and utilize a variety of Ranger systems tailored to their specific needs.Families Stick Together
Ranger systems are designed for flexibility, allowing any combination of Ranger TX and RX units to be paired together, regardless of model. This feature enables productions to scale quickly and utilize a variety of Ranger systems tailored to their specific needs.Features:
- ZERO-DELAY Go from TX to RX in .001 seconds – perfect for IMAG and live event production.
- VISUALLY LOSSLESS 4K HDR Transmit video in exceptional detail – superior to HEVC and H.264 solutions.
- AES-256 ENCRYPTION Keep your video transmission confidential and secure.
- GRANULAR FREQUENCY CONTROL Make adjustments to the frequency of your signal in 5MHz increments.
- LICENSED & UNLICENSED FREQUENCIES Operate from 4.9GHz to 6.4GHz on licensed and unlicensed bands.
- INTERCOMPATIBLE Pair any previous and current Ranger systems together.
- CONFIGURE RANGER FROM YOUR PHONE Command your wireless workflow from the palm of your hand
| TRANSMITTER | RECEIVER | |
| VIDEO | ||
| Video Inputs | 1x 12G-SDI SMPTE 2082-1 standard/75 Ω, 1x HDMI 2.0 Type-A receptacle | N/A |

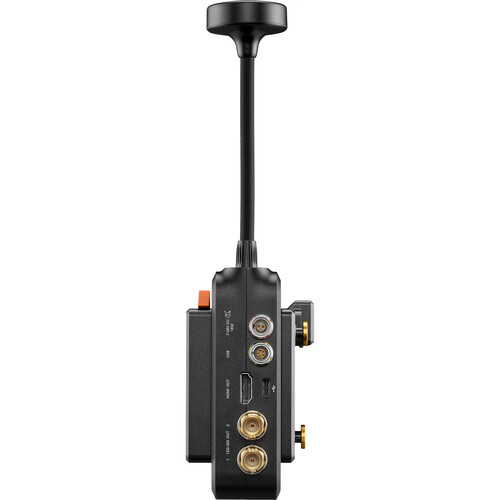

| Video Outputs | 1x 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) | 2x 12G-SDI SMPTE 2082-1 standard/75 Ω, 1x HDMI 2.0 Type-A receptacle |
| Color Sampling | SDI: YCbCr 4:2:2, 10-bit
| SDI: YCbCr 4:2:2, 10-bit
|
| Delay (TX to RX) | <0.001sec (without format conversions) | <0.001sec (without format conversions) |
| Supported Resolutions | 4Kp23.98/24/25/29.97/30/50/59.94/60 | |
| Input Cross Conversion | Yes, HDMI to SDI | N/A |
| Output Video Scaling | N/A | Yes, Framerate and Resolution Scaling |
| VIDEO PROCESSING | ||
| Video Compression | Uncompressed | Uncompressed |
| Test Pattern Generator | N/A | Yes |
| Video Format Conversion Support | Yes | Yes |
| Spectrum Analyzer | Yes (via Ranger Manager App) | Yes |
| AUDIO | ||
| Audio Compression | 48kHz 24-bit PCM | 48kHz 24-bit PCM |
| Audio Input | Embedded SDI/HDMI | N/A |
| Audio Output | N/A | Embedded SDI/HDMI |
| PHYSICAL ATTRIBUTES | ||
| Dimensions | 3.7" x 6.1" x 1.3" | 4.5" x 5.3" x 1.3" |
| Weight | 22oz (624g) | 20.6oz (584g) |
| Construction | Milled aluminum (chassis), regulation-compliant PCB | |
| INTERFACES | ||

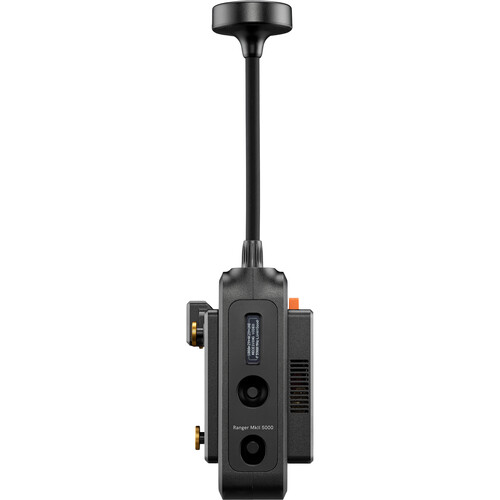

| Configuration Interface | OLED Screen with Menu Joystick Navigation | OLED Screen with Menu Joystick Navigation |
| Switches | On/Off Switch | On/Off Switch |
| Desktop App | Ranger Manager application for OSX & Windows | Ranger Manager application for OSX & Windows |
| Mobile App | Ranger Manager app (iOS and Android) configuration via Bluetooth | Ranger Manager app (iOS and Android) configuration via Bluetooth |
| USB Interface | Upgrade via USB-C | Upgrade via USB-C |
| Bluetooth | Bluetooth 5 LE | Bluetooth 5 LE |
| NETWORK | ||
| Wireless | Licensed Frequencies*: Unlicensed Frequencies: *By using this product in the licensed frequencies, you acknowledge and agree to comply with all applicable regulations and rules, and to only operate this system in compliance with the applicable license requirements. | |
| RF Channel Selection | Auto, Manual | Auto, Manual (Manual available for non-DFS, DFS, and Licensed Frequencies) |
| Encryption | AES-256, RSA-1024 key exchange | AES-256, RSA-1024 key exchange |
| RF Power | 23 dBm EIRP (max power) | 21 dBm EIRP (max power) |

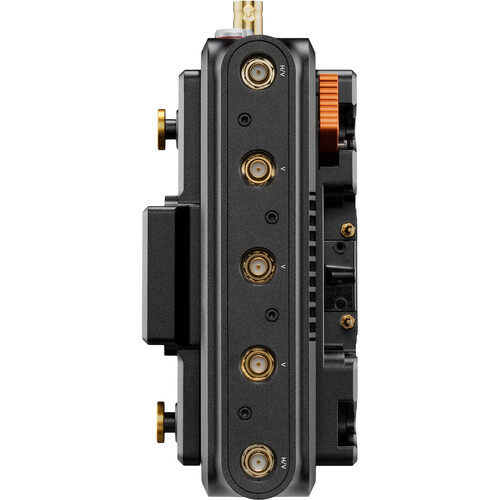

| Antennas | 1x Horizontal N-Type 2dbi antenna | 5x Vertical 2dbi antennas |
| Range | Up to 5000ft [1524m] with Panel Antenna | |
| Noise Rejection | Can coexist with Wi-Fi and 5GHz cordless phones, and operate up to 6 sets in the same location | Can coexist with Wi-Fi and 5GHz cordless phones, and operate up to 6 sets in the same location |
| POWER | ||
| Power Input | 2-Pin locking connector 7-28 VDC | 2-Pin locking connector 6-28 VDC |
| Battery | Gold or V-mount battery plate | Gold or V-mount battery plate |
| Nominal Power Consumption | 12 Watts | 18 Watts |
| Operating Temperature | 0~40 deg-C | 0~40 deg-C |
| GENERAL | ||

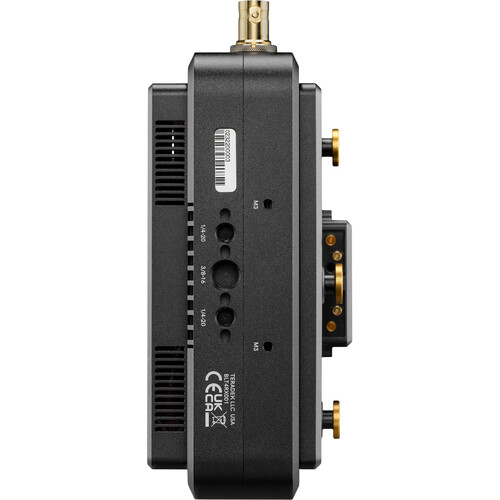

| Mountability | Integrated Gold or V Battery Mount, and multiple mounting options with M3 and 1/4-20” holes | Integrated Gold or V Battery Mount, and multiple mounting options with 3/8”x16 and 1/4-20” holes |
