SHAPE Matte Box 4x4

SHAPE Matte Box 4x4

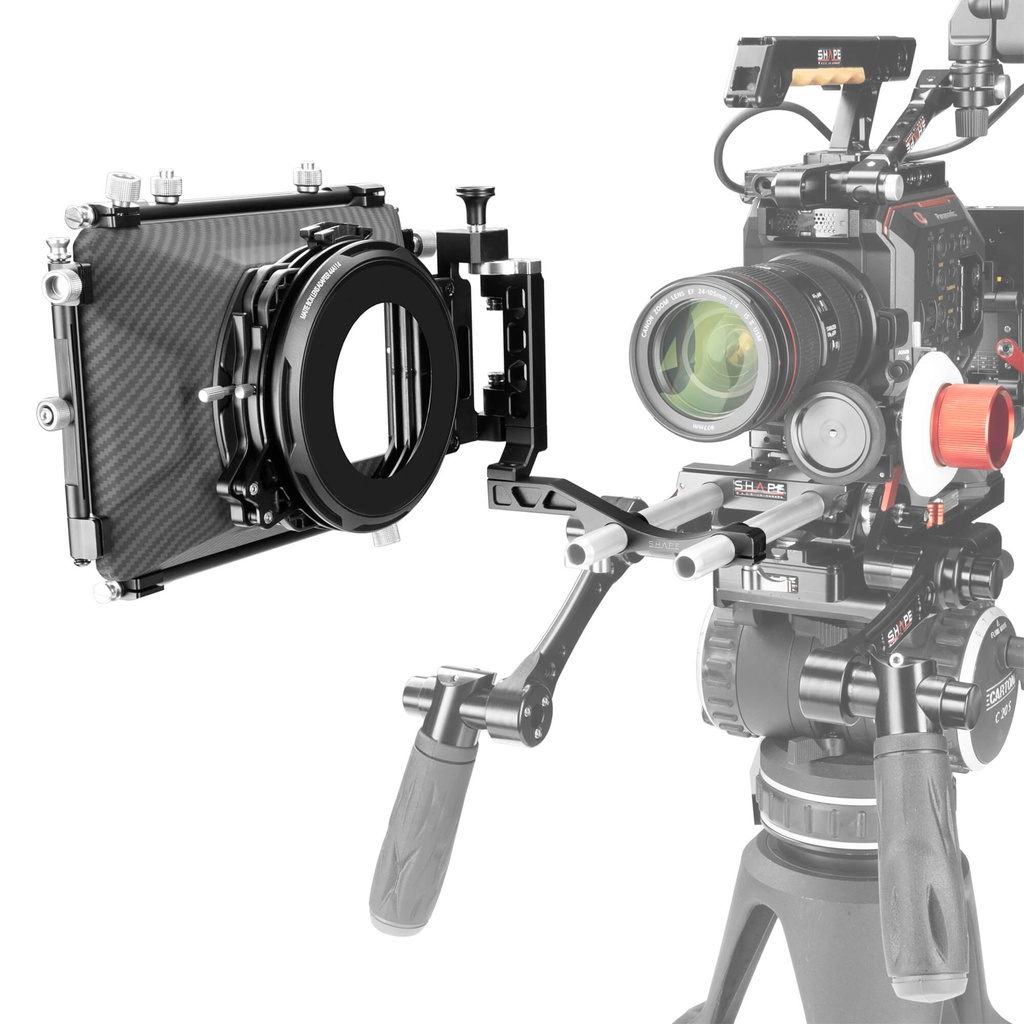

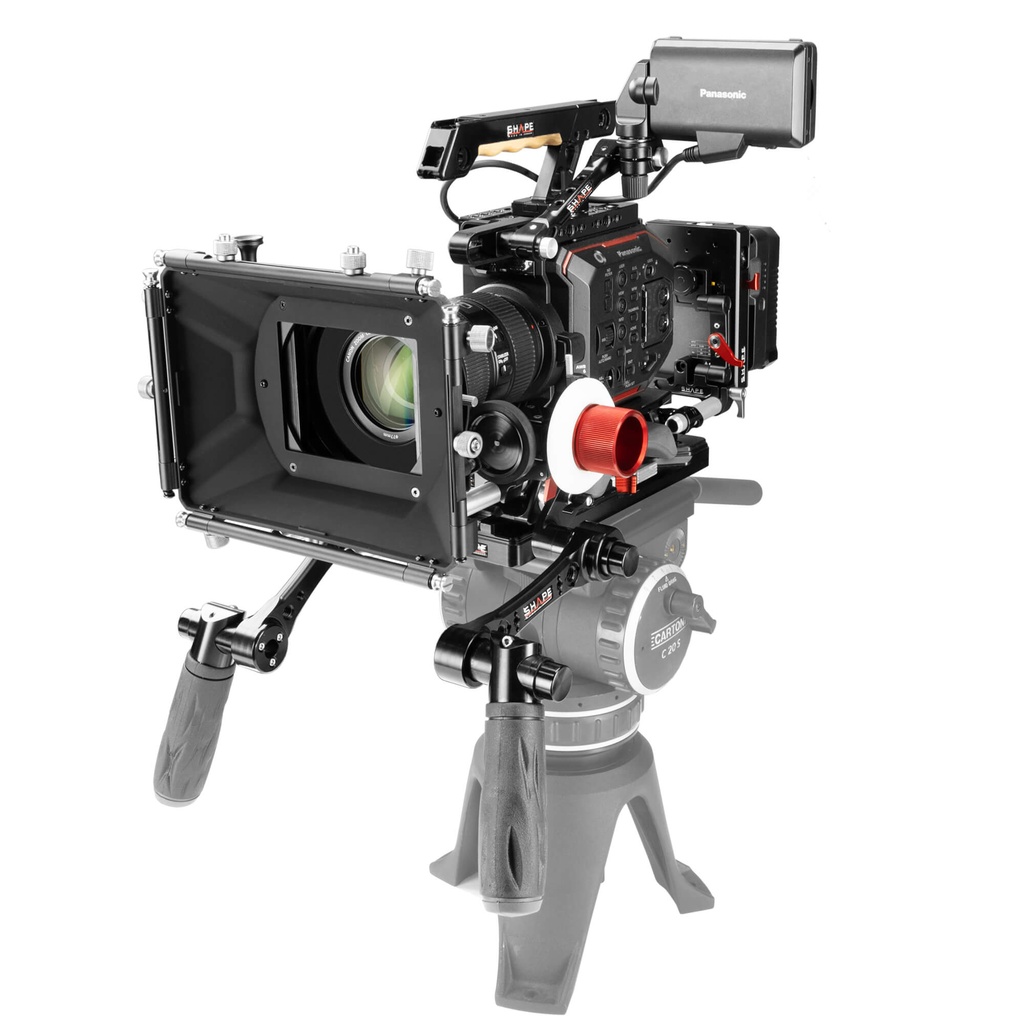

The SHAPE 2-Stage 4 x 4″ Matte Box accepts lenses withup to a 105 mm front outside diameter. The main frame made of carbon fiber. Itmounts to 15 mm LWS rods and utilizes a swing-away design, which lets youperform quick lens changes without having to remove the matte box from yourrods.

You can adjust the height of the matte box in relation to the rods, whichcomes in handy when your lens center to rod center height is slightly off fromthe standard.

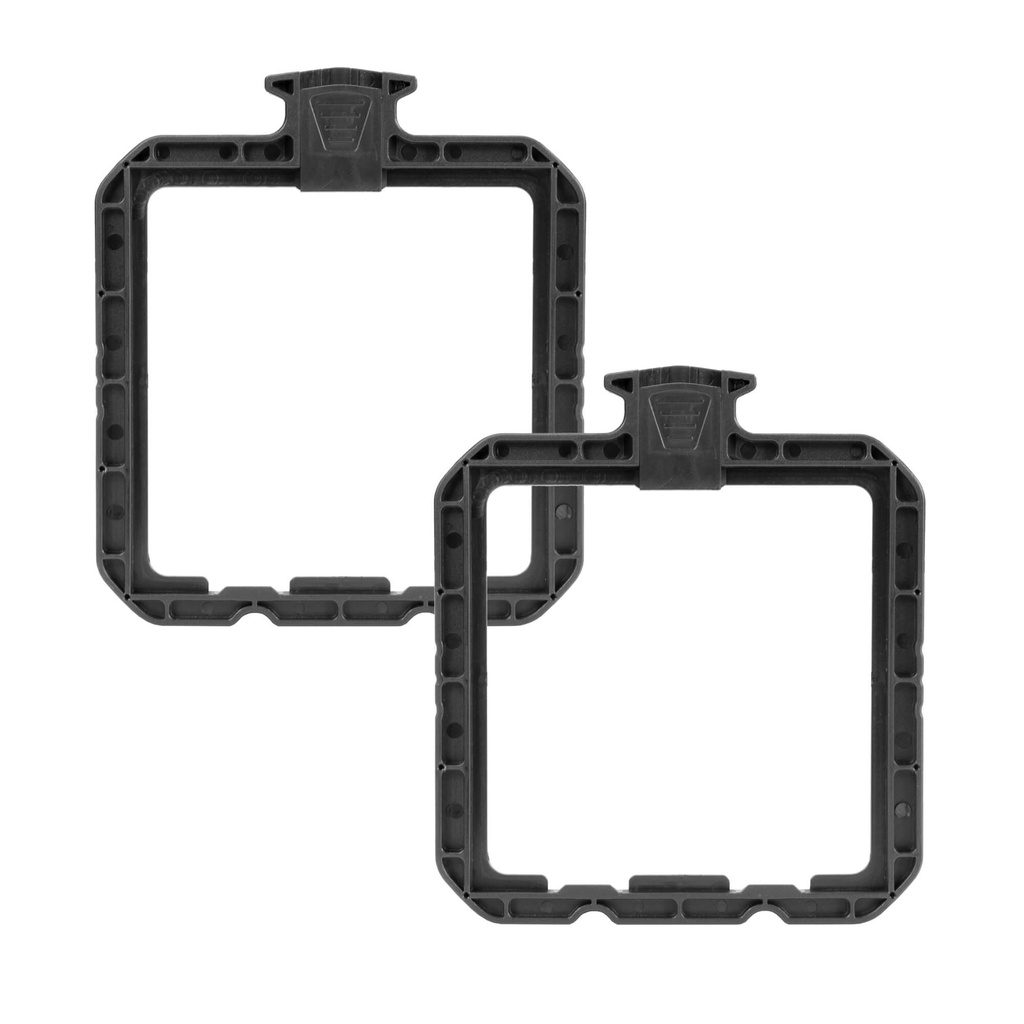

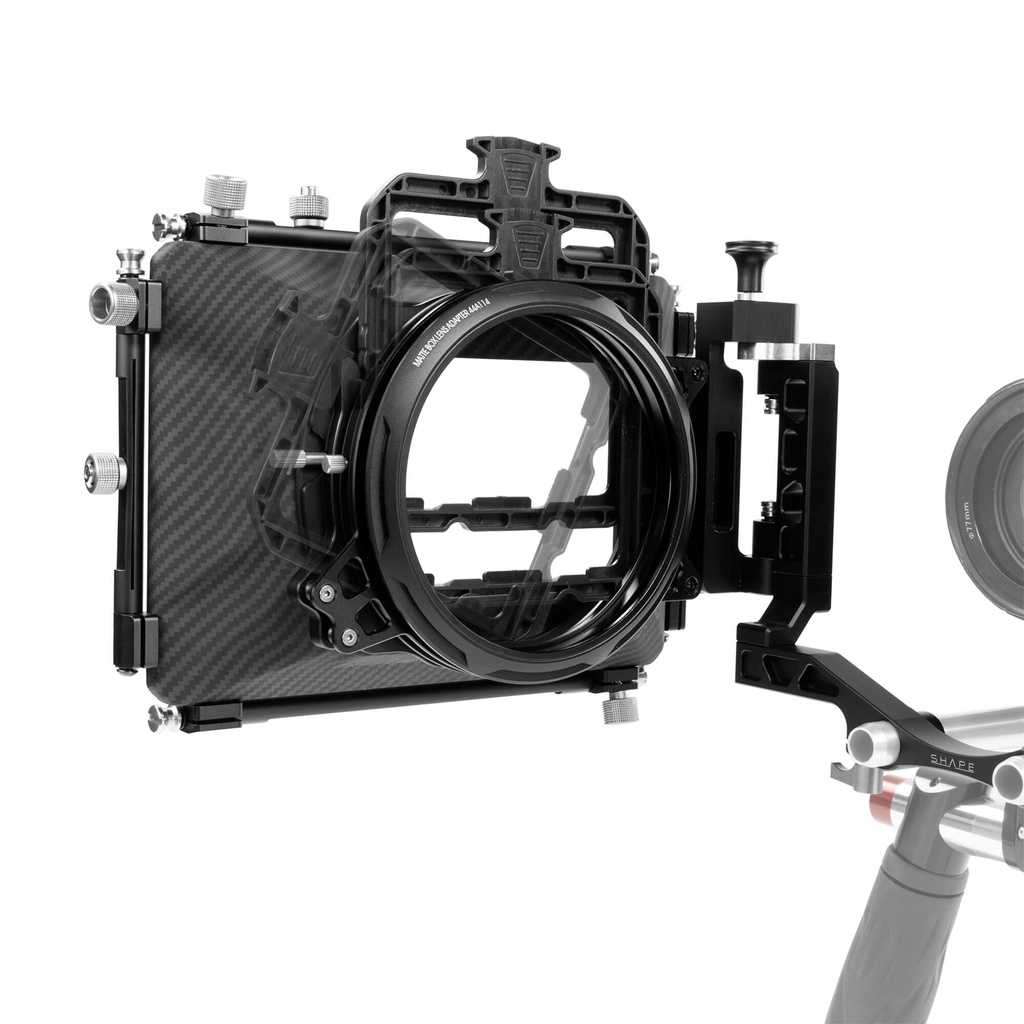

Two rotating filter stages support the use of 4×4″ filters. Thematte box comes with a top flag (eyebrow), side flags, six matte box donuts in65, 77, 85, 88, 100 and 105 mm sizes, and (1) elastic donut. The matte box alsohas a rear opening of 100 mm for lenses.

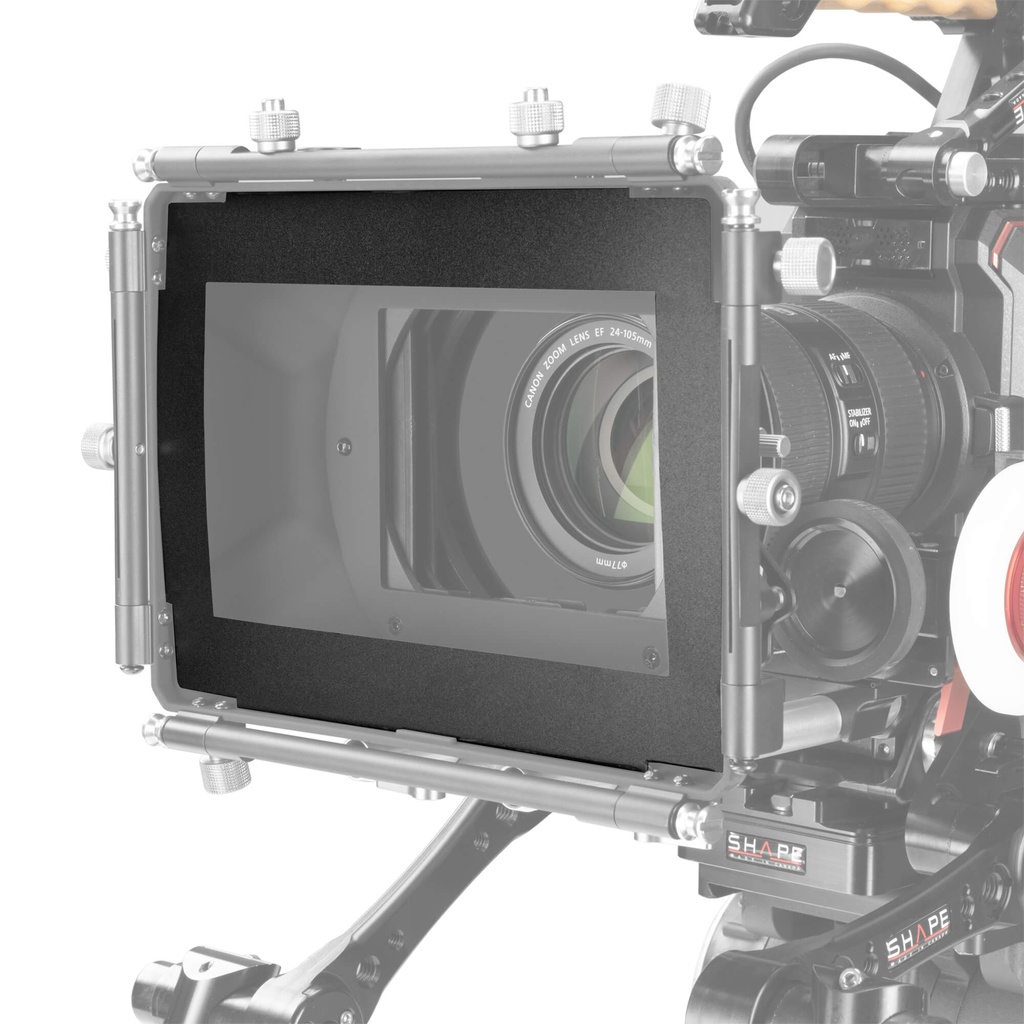

The included anti-reflection donuts prevent lightbehind the camera from reflecting off any filters in the matte box anddegrading the image.

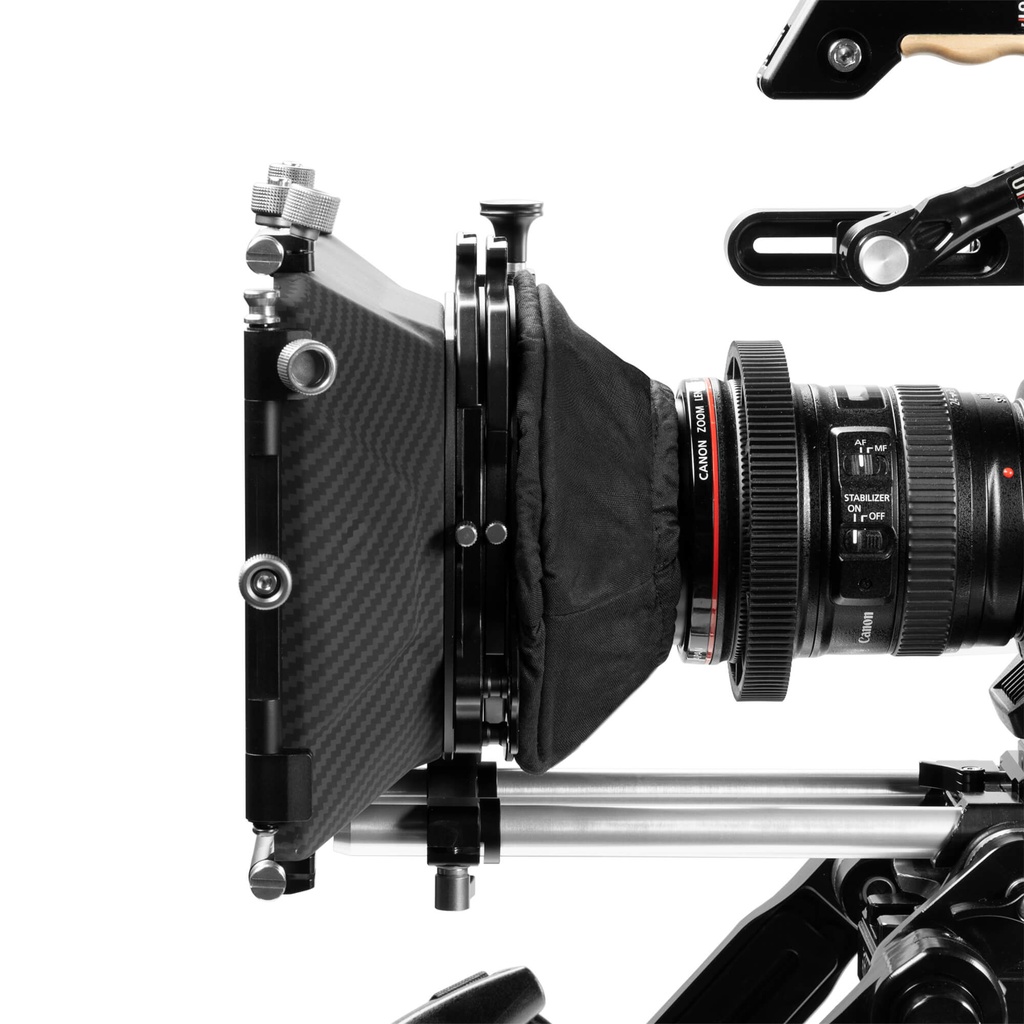

Included with the matte box are anti-reflection donuts for lenses with a front outside diameter of 65, 77, 85, 88, 100, 105 mm. The included elastic donut supports lenses with a front outside diameter between 65 and 105 mm, and it is especially useful with lenses that grow and shrink as you change focus or zoom.

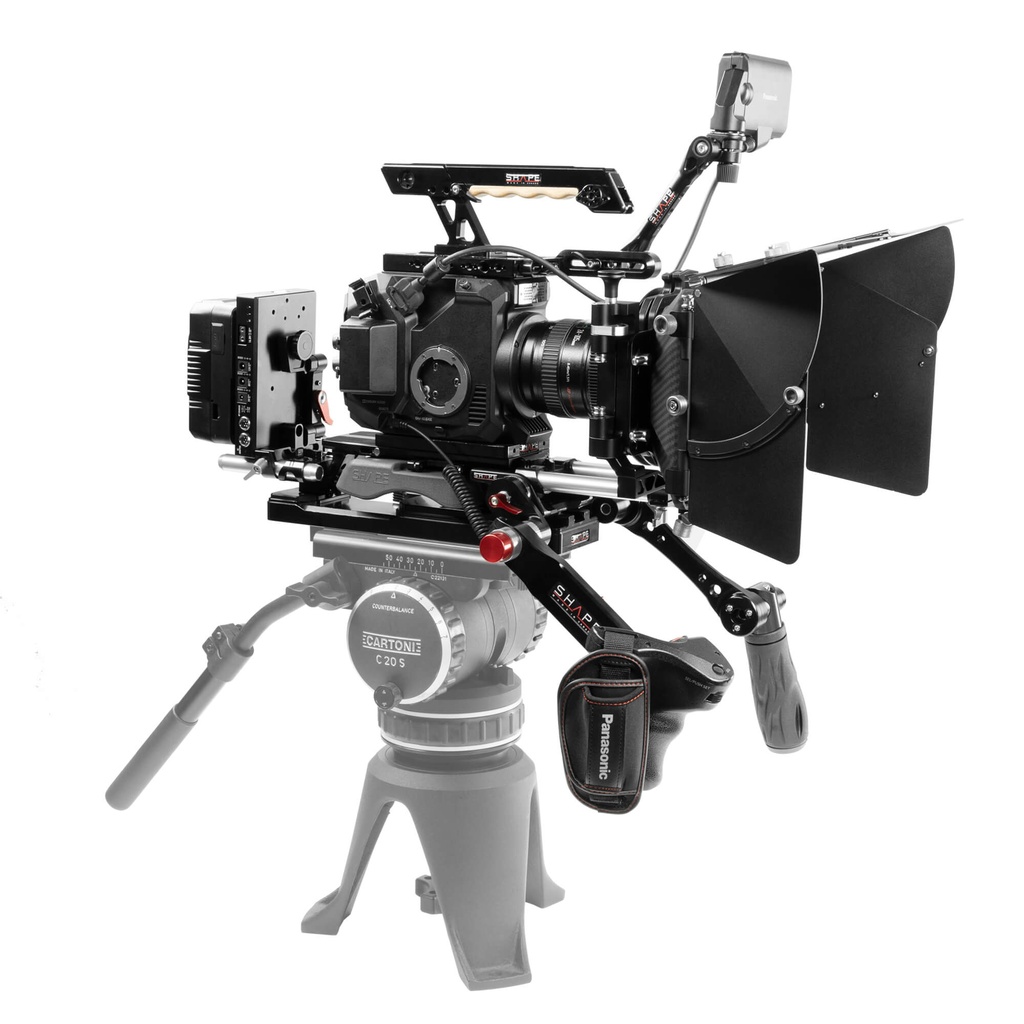

The side flags incorporate a hook design as a safety feature where they attach to the matte box. This helps prevent them from falling out of the matte box should the lockdown thumbscrew loosen accidentally.

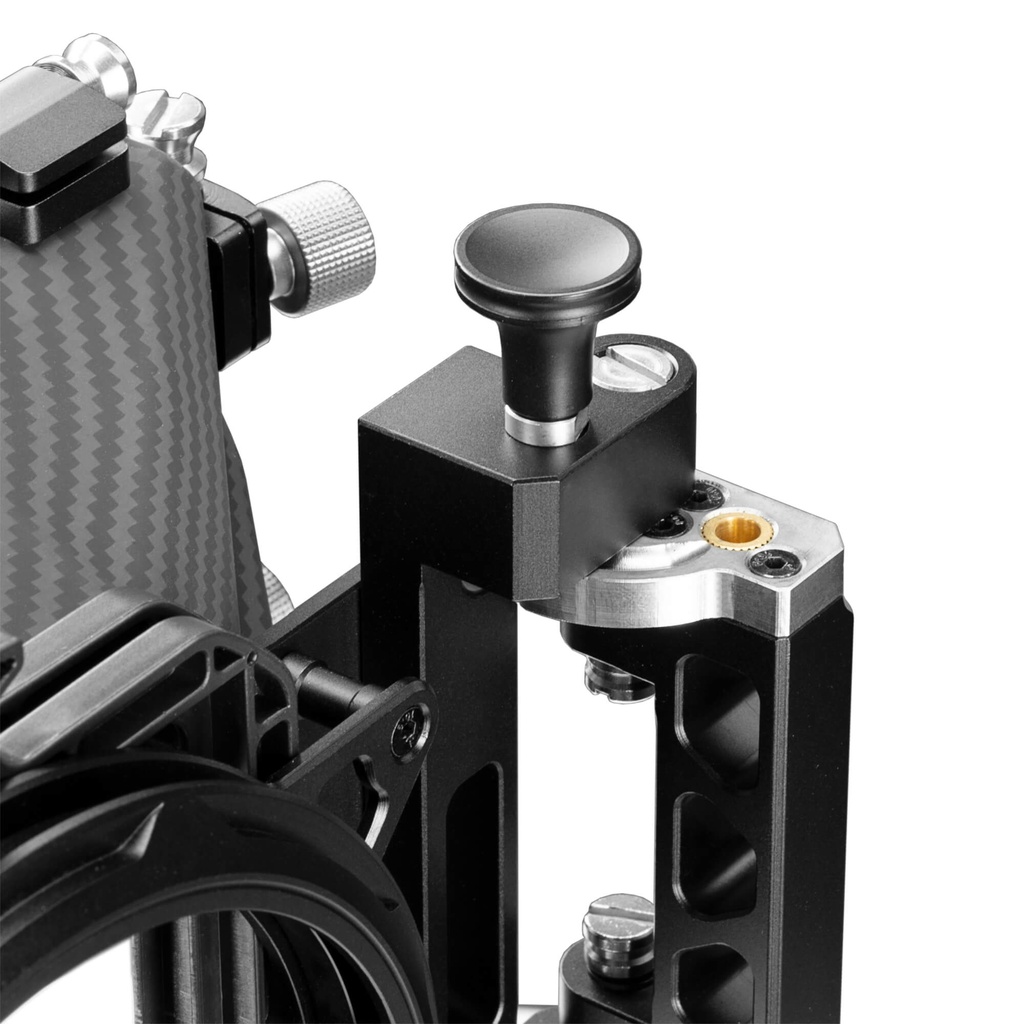

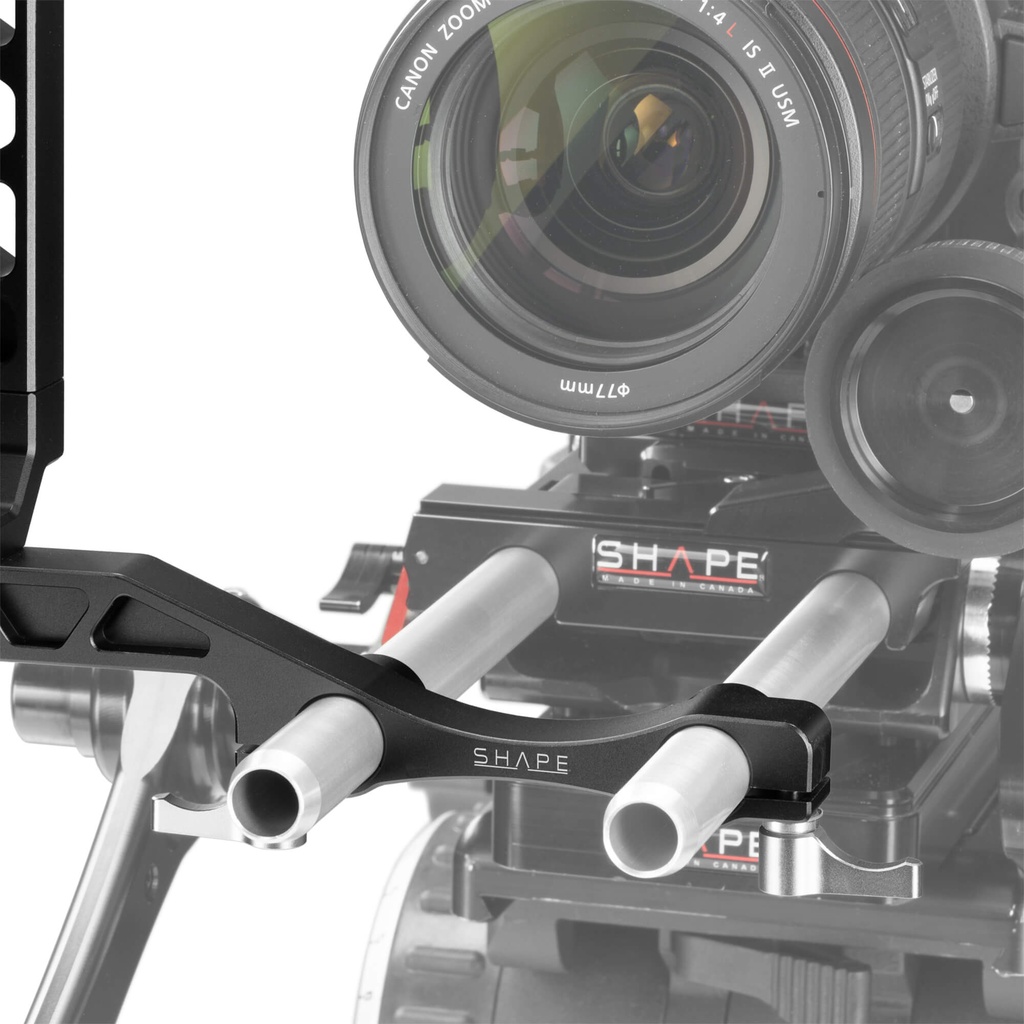

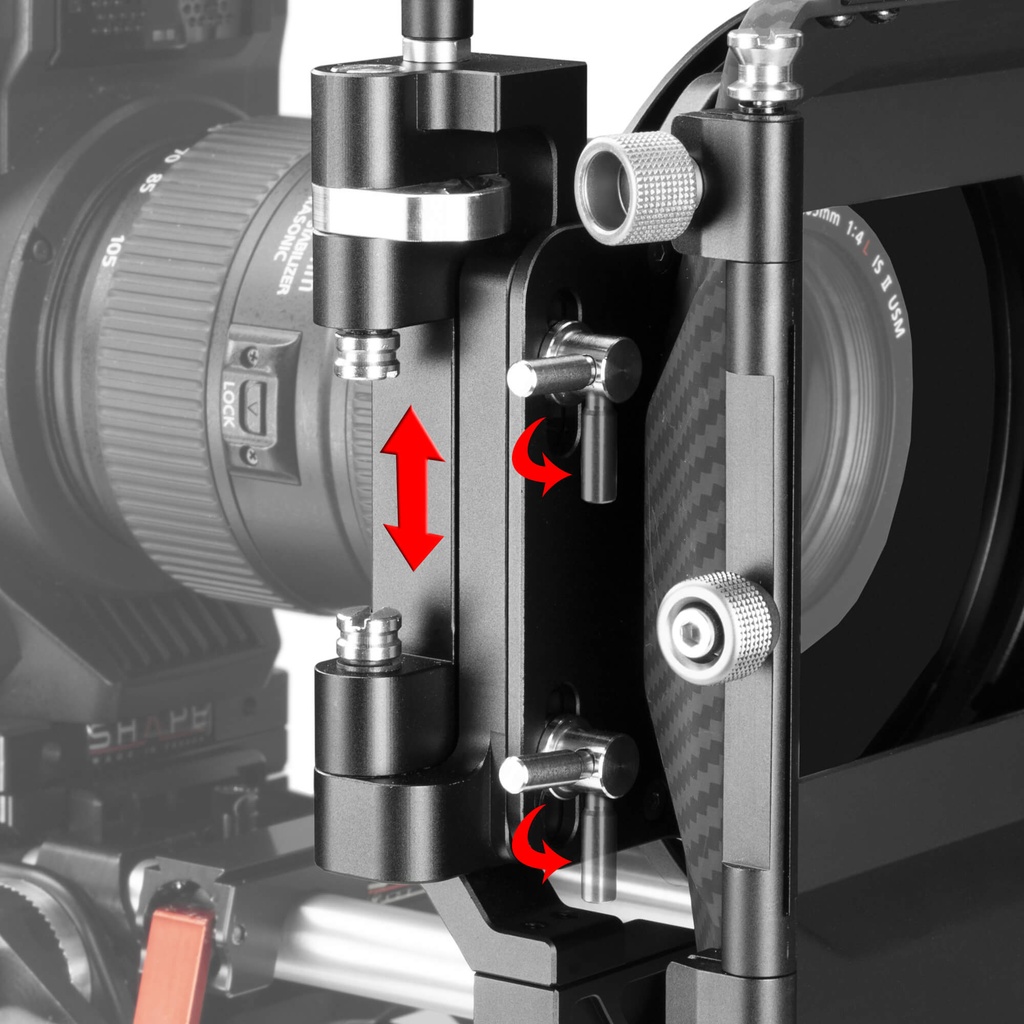

The swing-away bracket incorporates a height adjustment, enabling you to compensate a total of 0.65″ vertically. This allows you to use this matte box with a variety of camera/rod support combinations that may vary slightly from the industry standard 85 mm distance from LWS rod center to lens port center.

Technical Info

• Weight: 1,09 kg

• Dimensions: 30,48 x 10,16 x 20,32 cm

• Material: Aluminum

• Warranty: All SHAPE products and accessories are covered by a manufacturer’s warranty solely on CNC machined parts.

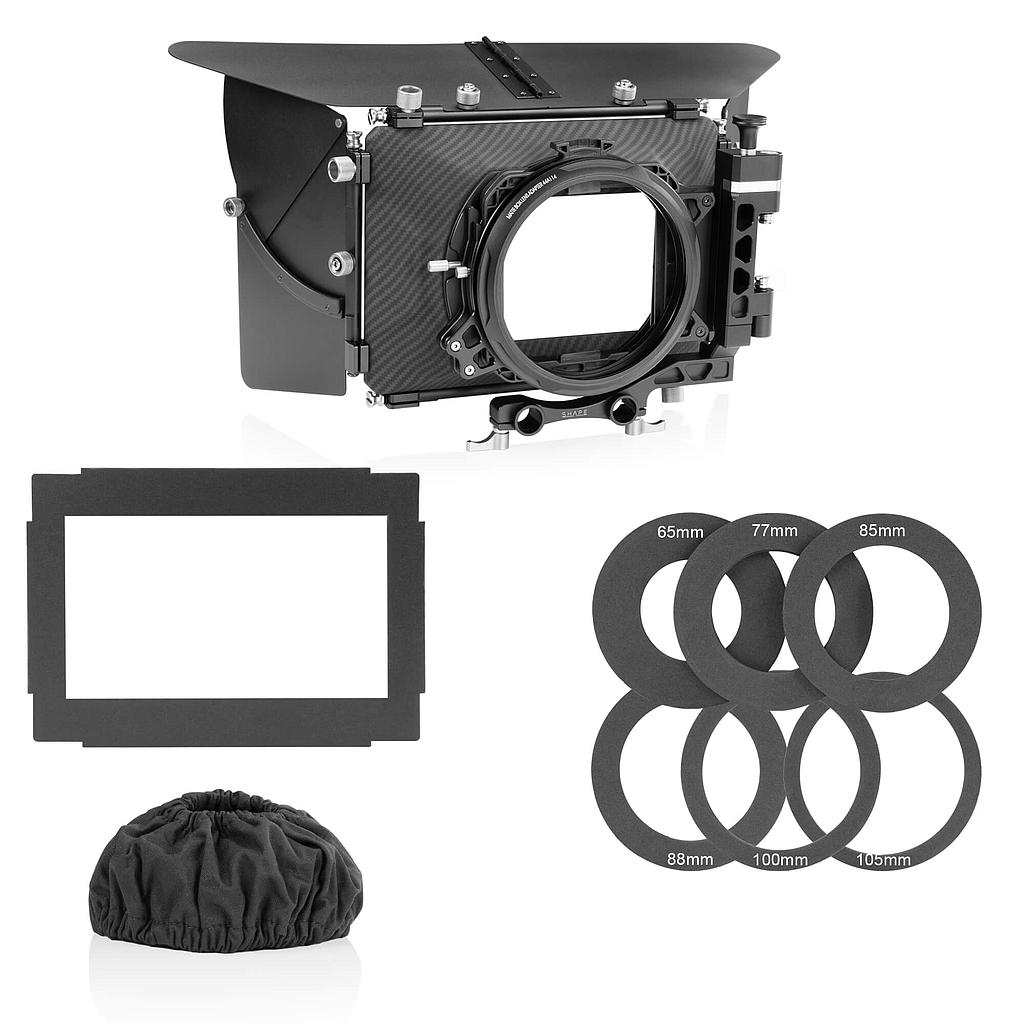

Included

• 1 x SHAPE Matte Box 4x4

• 2 x SHAPE Side Flag

• 1 x SHAPE French Flag

• 1 x SHAPE Filter Holder

• 6 x SHAPE Rings (65, 77, 85, 88, 100, 105 MM)

• 1 x SHAPE Knicker
