Chasing M2 Pro Max 200m

Chasing M2 Pro Max – Industrial-grade ROV with 200m dive depth and 360° omnidirectional movement

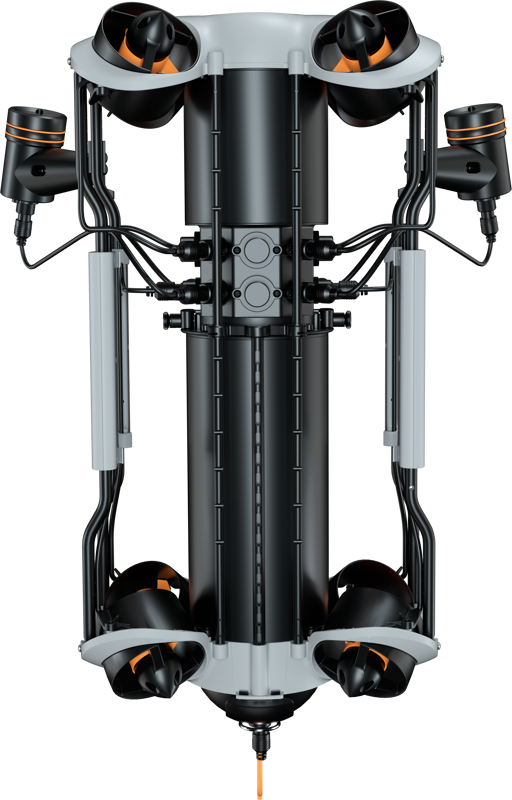

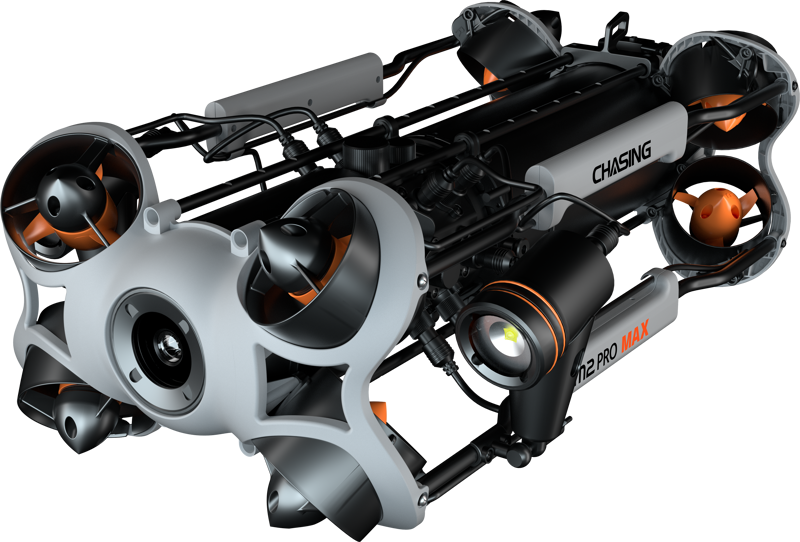

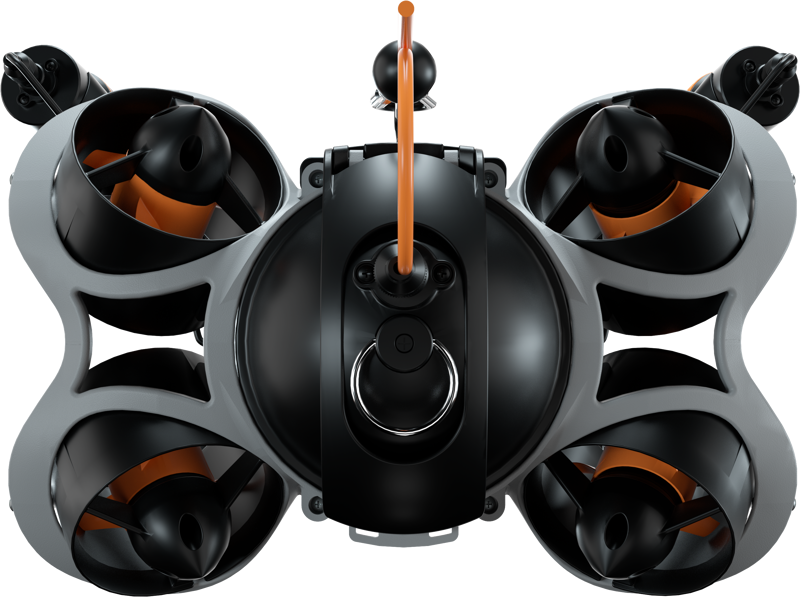

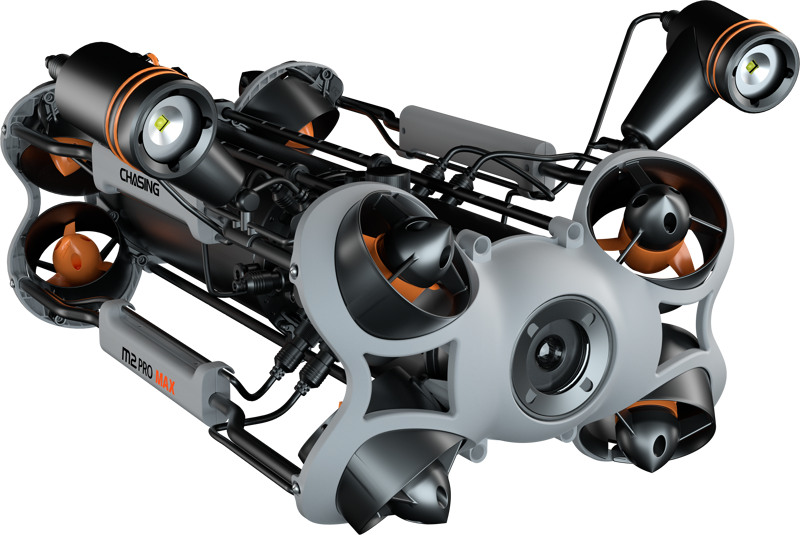

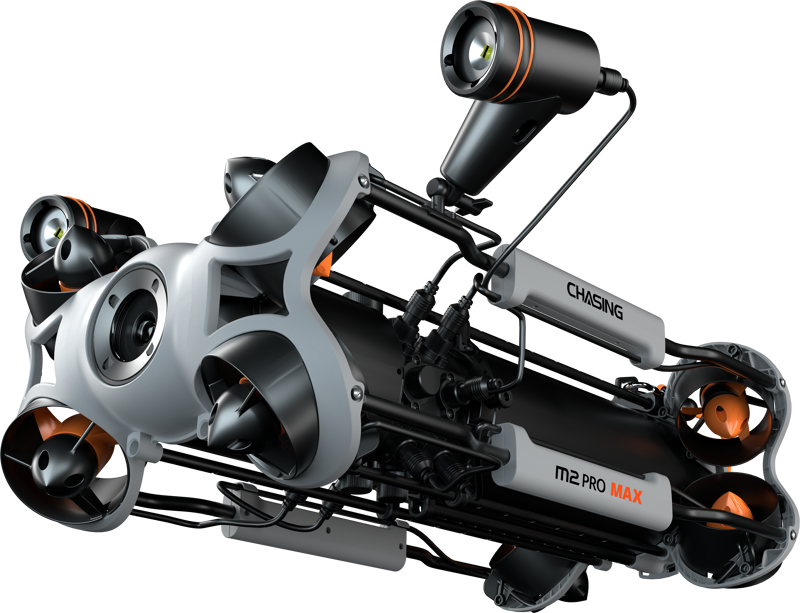

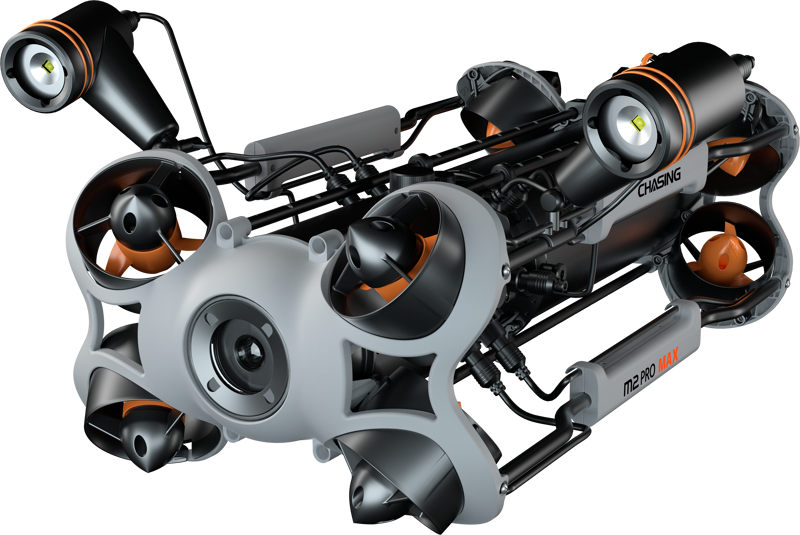

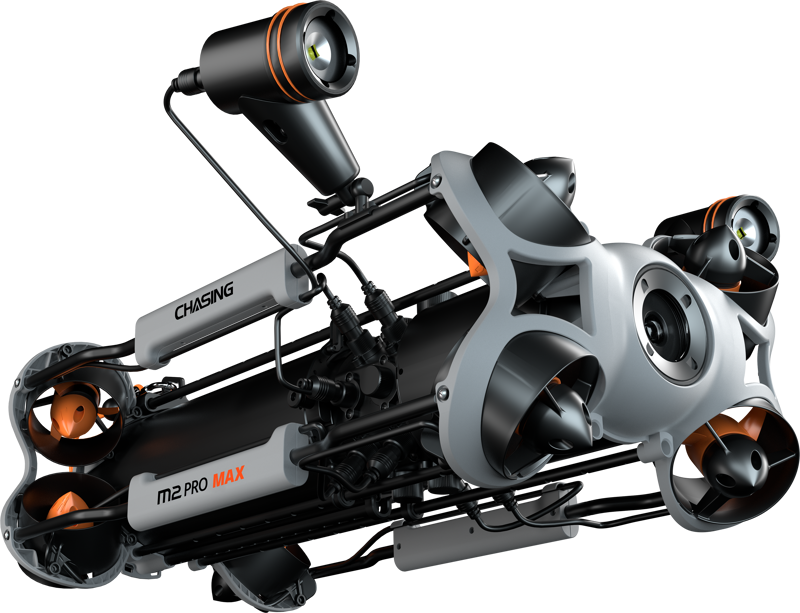

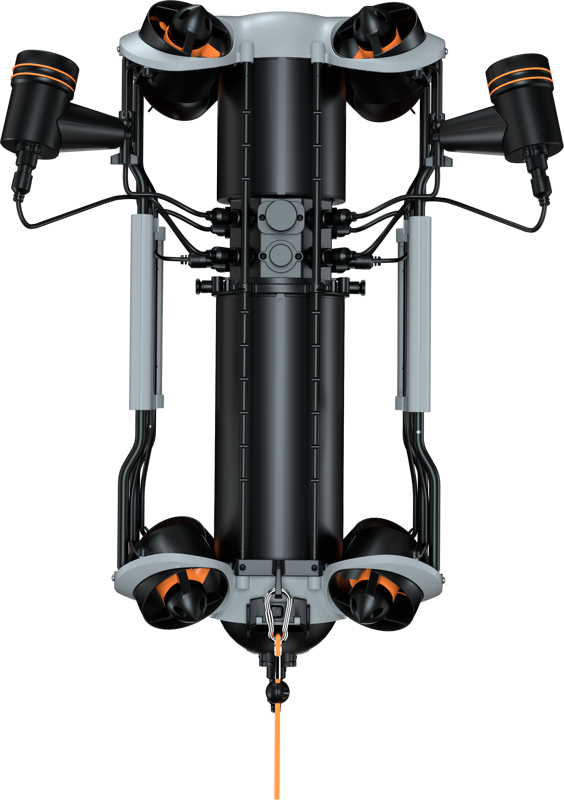

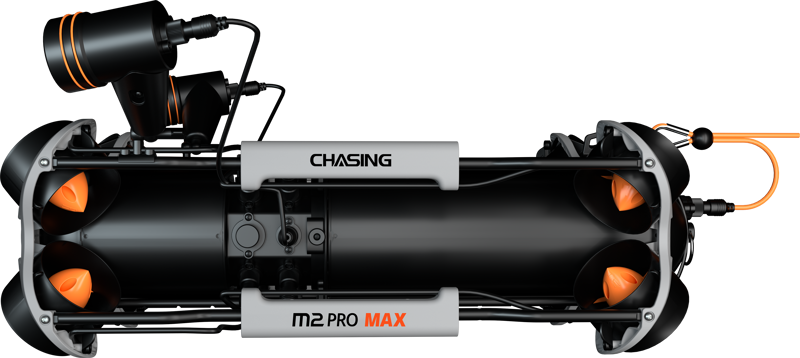

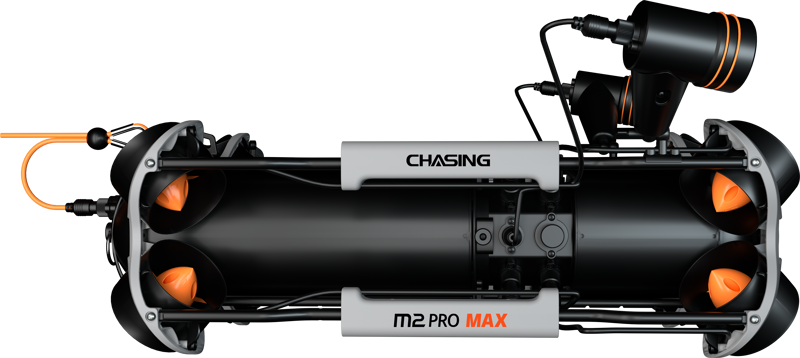

The Chasing M2 Pro Max is an industrial-grade remotely operated vehicle (ROV) built for governments and enterprise users. It delivers 360-degree omnidirectional movement through eight vectored thrusters. The system is designed for professional underwater tasks that require reliable maneuverability, extended depth capability, and multiple accessory integrations.

Key performance and mobility

The M2 Pro Max moves with eight vectored thrusters that enable omnidirectional control. As a result, operators can maneuver precisely in tight or complex underwater environments. The ROV reaches a maximum speed of 3 knots, can dive to 200 meters, and operate within a maximum horizontal radius of 400 meters from the shore or controller.

Accessory integration and modular design

Compared with the Chasing M2 Pro, the M2 Pro Max adds Quick Accessory Assembly and Disassembly Technology. This tool-free system supports quick assembly and disassembly of more than 20 types of accessories, such as sonars, USBL units, and the Chasing Water Sampler. In addition, the ROV includes a built-in docking station that simplifies accessory integration and simultaneously supports up to five accessories.

Propulsion and power options

The M2 Pro Max uses second-generation anti-stuck motors (C-Motor 2.0). These motors increase power by 30% compared with the earlier generation, reinforcing the ROV’s anti-stuck capability in challenging conditions. For extended or continuous operations, the Chasing Shore-Based Power Supply System (C-SPSS) is available as an optional accessory. The C-SPSS uses a battery compartment design, increases output power to 1500W, and allows a limitless power supply when deployed.

Lighting and imaging support

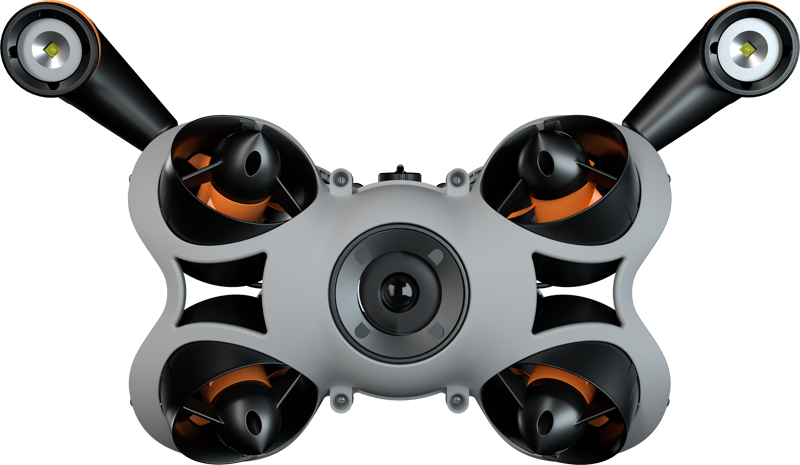

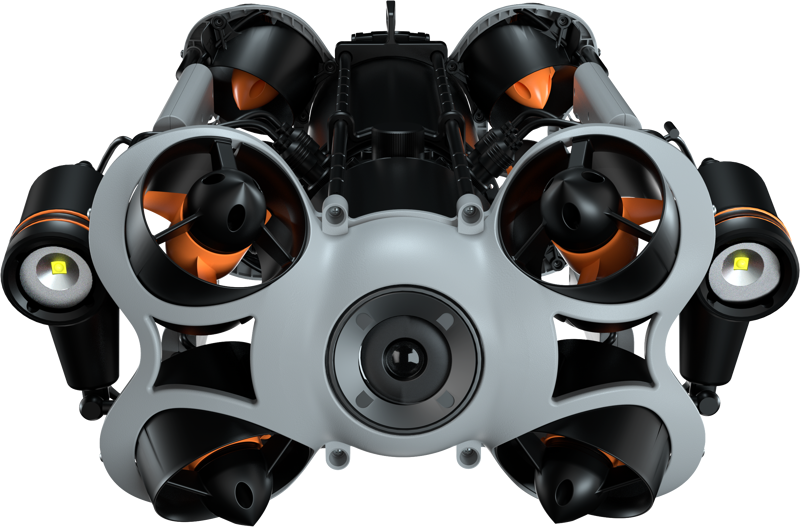

The ROV features external 8000-lumen LED fill lights with an optimum beam angle of 150°. This lighting setup reduces reflection from floating objects and helps illuminate details clearly during inspections and dives.

Intended applications

The Chasing M2 Pro Max provides professional and reliable underwater solutions for a range of industries and missions, including:

• Underwater search and rescue
• Hull and dock inspection
• Aquaculture inspection
• Water conservancy projects
• Hydropower dam inspection
• Scientific exploration
• Offshore wind power facility inspection

What’s in the box

• 1 Chasing M2 Pro Max ROV
• 1 Chasing E-Reel with 200m Tether (cable)
• 1 Remote Controller

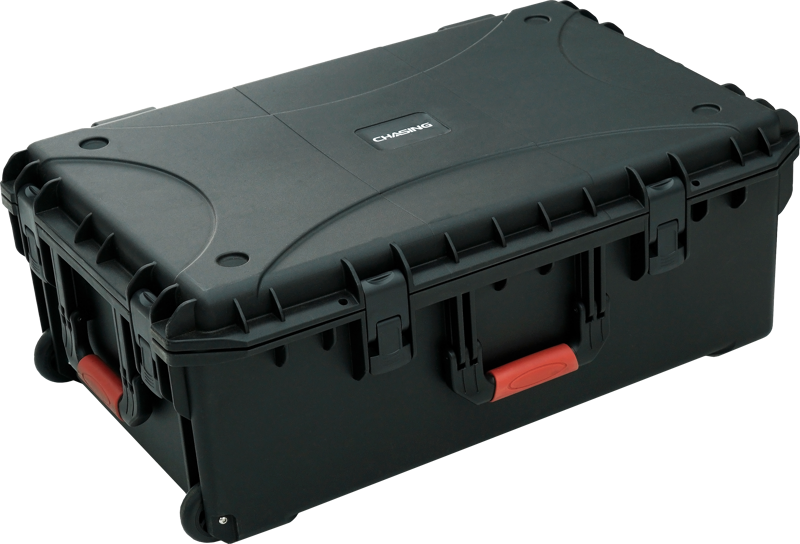

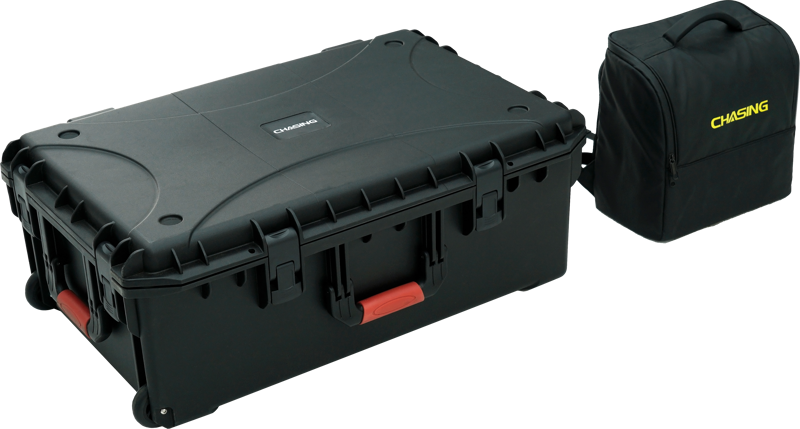

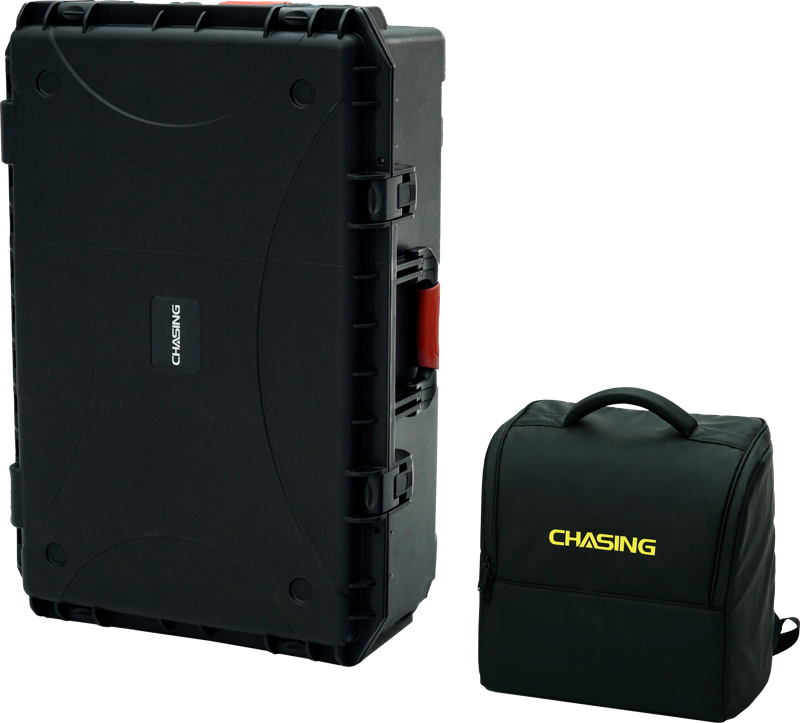

• 1 Carrying Case (hardcase)
• 1 Charging Cable & 3-in-1-Charger
• 3 Data Cables (phone to remote controller)

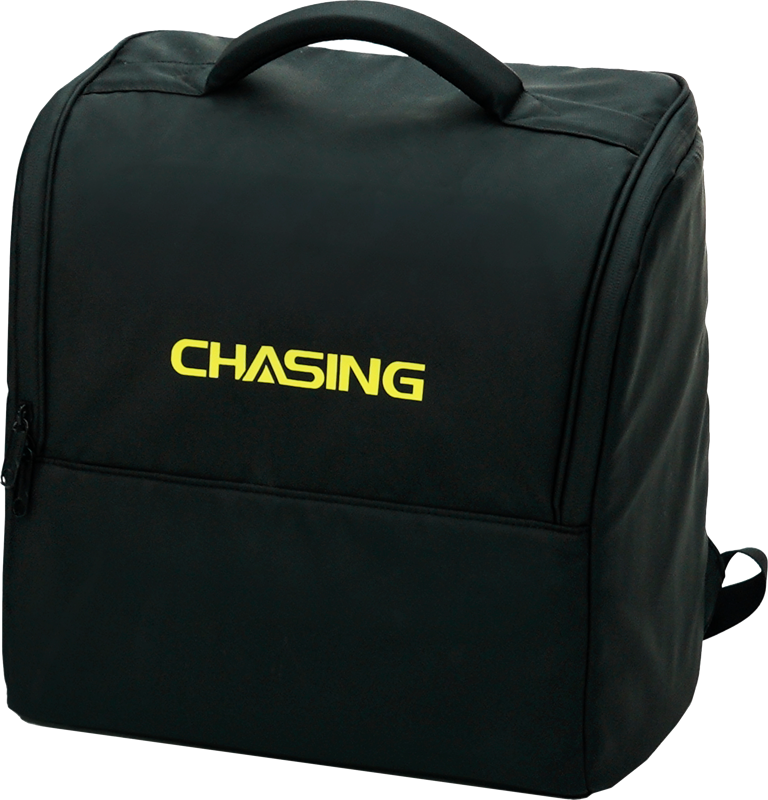

• 1 Backpack for accessories
• 8 Thruster shields
• 1 microSD card 128Gb
• 1 Chasing towel
• 2 Left/Right floodlight Spare parts for mounting support
• 1 Information kit
• Diverse screws, o-rings and covers + screwdriver and flat wrench

Specifications

FAQ

Question: Can the M2 Pro Max carry multiple accessories at once?
Answer: Yes. The ROV includes a built-in docking station that supports up to five accessories simultaneously. It also uses Quick Accessory Assembly and Disassembly Technology for tool-free mounting of more than 20 accessory types.

Question: What are the operational depth and range of the ROV?
Answer: The M2 Pro Max can dive to 200 meters, reach a maximum speed of 3 knots, and operate within a maximum horizontal radius of 400 meters from the controller.

Question: How is the ROV powered for long operations?
Answer: The ROV uses onboard power for standard deployments. For extended or continuous missions, the optional Chasing Shore-Based Power Supply System (C-SPSS) increases output to 1500W and supports a limitless power supply when configured.

Question: What lighting does the M2 Pro Max provide for inspections?
Answer: The ROV uses external 8000-lumen LED fill lights with a 150° beam angle. These lights are designed to reduce reflections from floating objects and to illuminate details clearly during inspections.

Question: What is included when I purchase the M2 Pro Max?
Answer: The package includes the ROV, a Chasing E-Reel with 200m tether, remote controller, hard carrying case, charging cable and 3-in-1 charger, data cables, accessory backpack, thruster shields, a 128Gb microSD card, towel, spare mounting parts for floodlights, an information kit, and a set of screws, o-rings, covers, screwdriver and flat wrench.
