Datavideo TP-900 PTZ Teleprompter, turn-key

Datavideo TP-900 PTZ Teleprompter – Turn-key unit with built-in 15" LCD and dvPrompter Plus

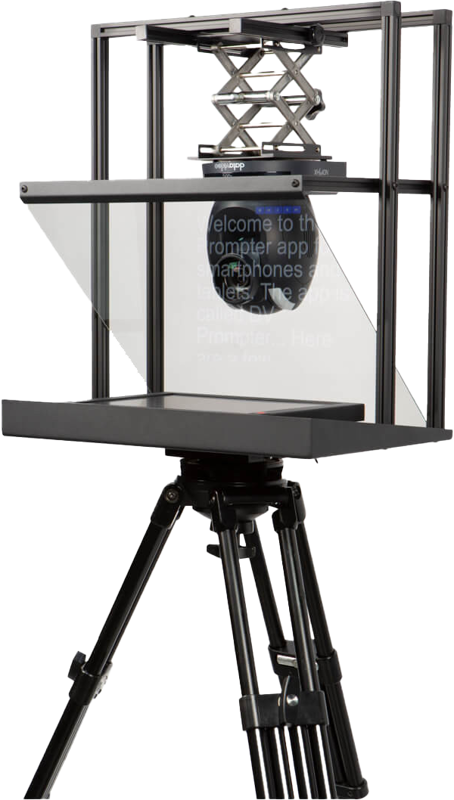

The Datavideo TP-900 is a turn-key teleprompter system designed specifically for PTZ cameras. It combines a built-in LCD display running dvPrompter Plus with a unique mounting arrangement that allows PTZ cameras to be mounted upside down, removing the usual operational limitations and enabling greater camera movement within the prompter.

Universal fitment and adjustable mounting

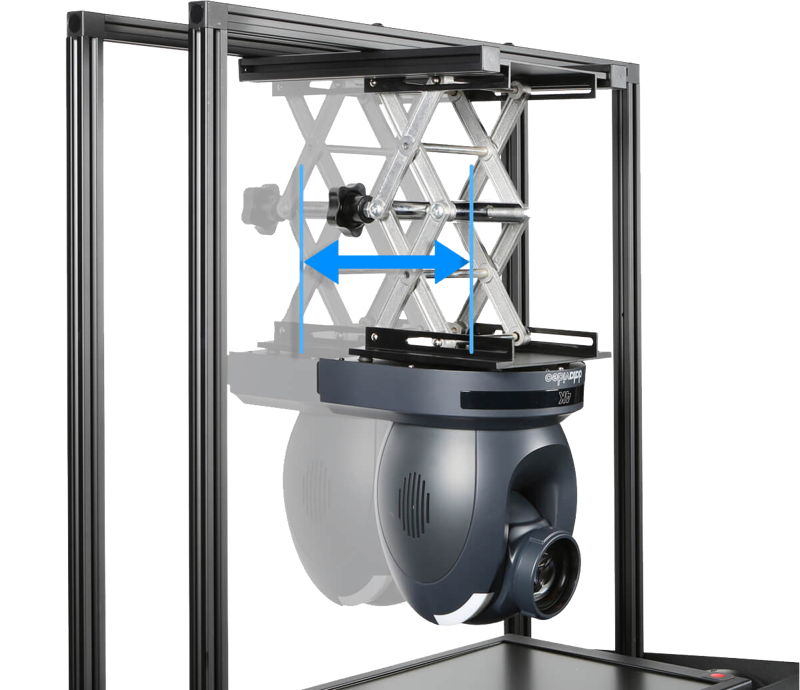

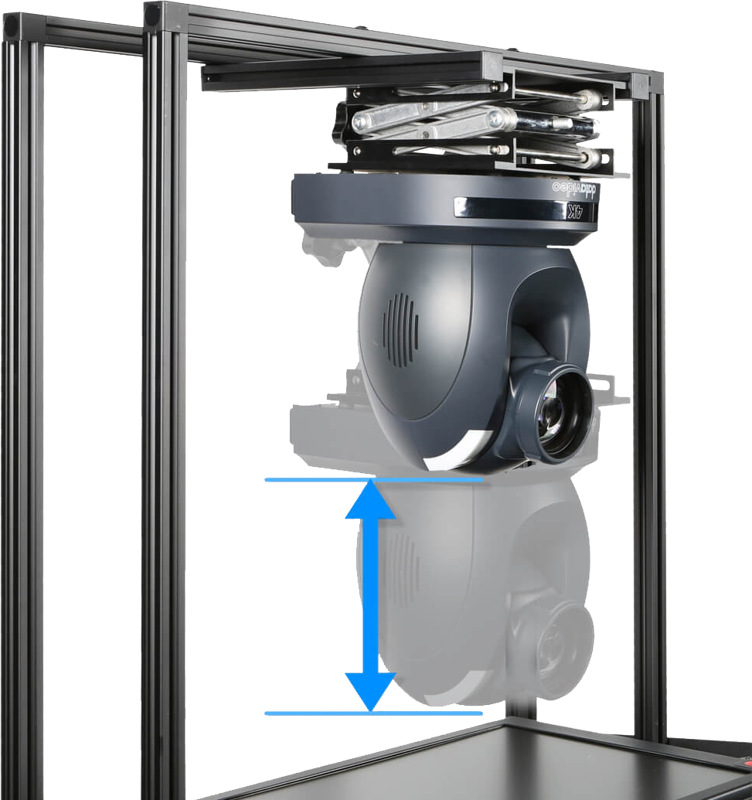

The TP-900 uses a unique camera mounting system that allows both horizontal and vertical adjustment. As a result, it supports most PTZ cameras on the market. The adjustable lift and scissor lift parts let you position a PTZ camera as required for live production setups.

Mounting options and portability

You can set the TP-900 on a lightweight tripod or a lighting stand. Alternatively, mount it on a camera tripod and position it wherever you need to produce professional live video. This flexibility makes the TP-900 suitable for live studio work, OB locations, and other on-site productions.

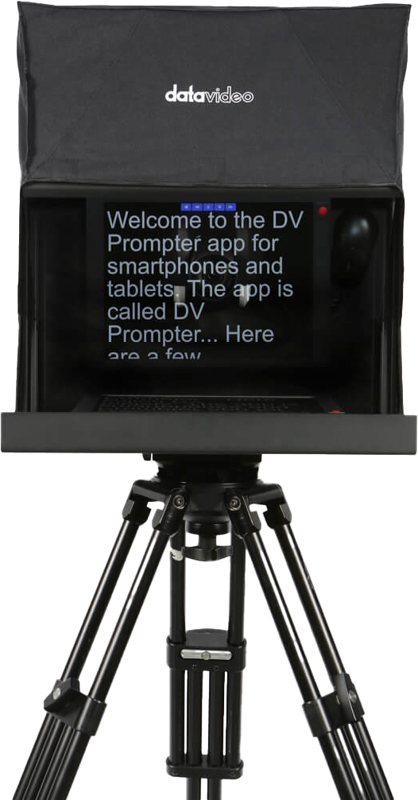

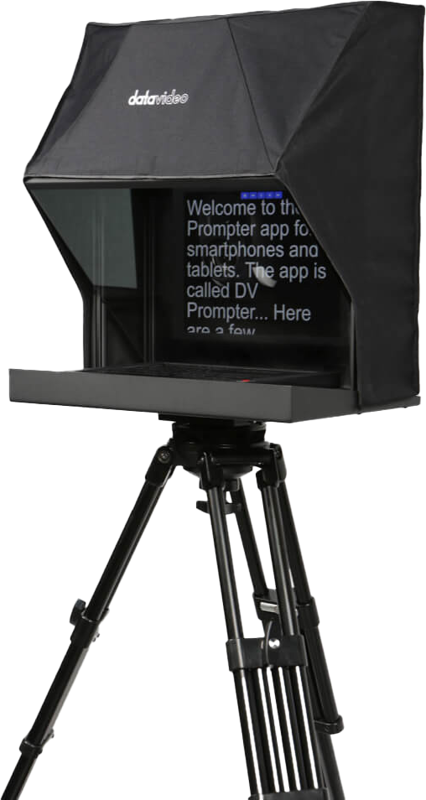

Built-in display and dvPrompter Plus software

The TP-900 features a bright 15" 4:3 LCD screen (documents also reference 15.3" in some materials) with the dvPrompter Plus teleprompter application built in. Because the software runs on the unit itself, you do not need to run prompter software on a laptop. The display supports the native resolution and brightness listed in the specifications.

Control and monitoring over Ethernet

You can control and monitor the teleprompter over a local network using any device with a modern web browser. Via Ethernet you can load, reload and control scripts on the TP-900 remotely. The HDMI input also allows the 15" LCD screen to be used as an HDMI monitor with third-party software if required, and the HDMI output can drive external displays.

Synchronize multiple units

TP-900 units can synchronize with each other using either HDMI input/output or IP synchronization over Ethernet. This makes it possible to run multiple teleprompters in sync for multi-camera or multi-location workflows.

Powerful editor and content support

The built-in dvPrompter Plus includes a rich text editor that supports changing font size, type, colour and justification on a per-script basis. You can use multiple fonts within a single script. The editor also supports embedding images and creating playlists from multiple scripts.

In addition to text scripts, dvPrompter Plus supports importing PowerPoint and Keynote slides via the web interface. Slides can be controlled using the optional WR-500 wired hardware remote or the web-based remote control interface. The software supports seamless switching between text-based scripts and slides, and it can add slides and scripts to a playlist. It also supports mirroring slides in real time so content displays correctly when viewed via mirror glass.

P2P interview configuration

When you pair two TP-900 units in a P2P (Peer to Peer) interview configuration, the interviewer and interviewee can look directly into the camera lens while still seeing an image of each other. This configuration produces natural one-on-one interview style with direct eye contact. As a result, the audience experiences more direct engagement because both participants appear to be looking at the viewer while also seeing each other.

Real-time editing and live updates

dvPrompter Plus supports real-time editing. You can interrupt a live broadcast with breaking news or urgent updates by modifying the script through the web interface. Changes update immediately on the teleprompter display.

Multi-language support

The TP-900 unit includes multi-language support for the dvPrompter Plus interface in the following languages:

• English
• Dutch
• Spanish
• Portuguese
• Russian
• Chinese(Traditional)
• Chinese (Simplified)

Specifications

What's in the box

• 1 x 15” LCD Control Unit
• 1 x 12V universal Mains PSU
• 1 x USB Mouse
• 1 x 5m Ethernet Cable
• 1 x 3.5mm input adapter for WR-500 remote control
• 1 x TP-900 metal base tray with tripod plate
• 1 x 150 x 150 PTZ Scissor Lift
• 1 x Cloth Hood
• 1 x M4 CRV hex tool
• 1 x 9mm long ¼ thumb screw with red dot
• 1 x 9mm long ¼ thumb screw with washers
• 8 x M6*40mm screws
• 10 x M6*14mm screws
• 1 x 16mm long screw
• 1 x 3/8 to ¼ adapter
• 4 x 565mm Vertical extrusions
• 2 x 475mm horizontal extrusions with 90 degree joining blocks
• 2 x 325mm glass support extrusions with single end caps
• 2 x 250mm PTZ lift extrusions with both end caps
• 1 x 70/30 mirror glass
• 1 x Glass support bar
• 2 x Spare black extrusion end caps
• 2 x Spare M6*14mm screws
• 2 x 12V regulated DTap cable
• 1 x Small CRV hex tool to remove the tripod plate from item F
• 1 x Medium CRV hex tool to remove 90 degree joining blocks from item Q

FAQ

Question: Which cameras does the TP-900 support?
Answer: The TP-900 supports most PTZ cameras on the market. Its unique mounting system allows horizontal and vertical adjustment and the option to mount a PTZ upside down to remove operational limitations and increase movement in shots.

Question: Do I need a laptop to run the teleprompter software?
Answer: No. The TP-900 has dvPrompter Plus built into the 15" LCD control unit, so you do not need to run software on a laptop for standard teleprompting functions.

Question: How can I control and synchronize the TP-900?
Answer: You can control and monitor the unit over a local network using any modern web browser via Ethernet. Multiple TP-900 units can be synchronized using HDMI input/output or IP synchronization over Ethernet. The HDMI ports also allow external monitoring or driving additional displays.

Question: What remote control options are available?
Answer: The TP-900 supports monitoring and control via LAN. It also supports the optional WR-500 wired hardware remote, the FS-30 foot pedal, and generic presentation remotes with USB receivers.

Question: Can I use slides or PowerPoint with the TP-900?
Answer: Yes. dvPrompter Plus supports importing PowerPoint and Keynote slides via the web interface and can switch seamlessly between text-based scripts and slides. Slides can be added to playlists and mirrored in real time for correct viewing via mirror glass.

Question: What is included in the box to get started?
Answer: The package includes the full TP-900 control unit and a comprehensive accessory set such as the 12V mains PSU, USB mouse, Ethernet cable, cloth hood, mounting tray and scissor lift, all necessary screws and extrusions, mirror glass and support bar, and hex tools for assembly and adjustments.
