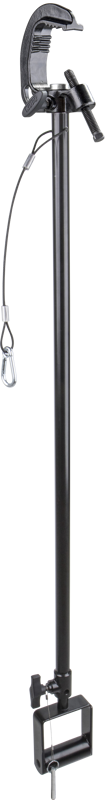

Kupo KLHB-0103 Short Lightweight Telescopichanger Baby Pin 1.5-3 Feet

Kupo KLHB-0103 Short Lightweight Telescopic Hanger w/ Baby Pin — Quick-release ball safety pin for secure riser locking

The Kupo KLHB-0103 is a short, lightweight telescopic hanger equipped with a 5/8” (16mm) baby pin and a 1/4”-20 female thread on top. It includes multiple safety features designed to keep the riser and attached equipment secure during setup and adjustment.

Key safety features

• Quick-release ball safety pin: Prevents the riser from slipping when the hanger is set at a chosen height.
• Safety wire on the column: Helps avoid unexpected clamp drop-off by providing an additional mechanical safeguard.
• Top collar for pan stability: The collar on the top of the telescopic hanger holds the unit steady for pan adjustment even while the clamp knob is loosened.

Threading and compatibility

The top of the baby pin features a 1/4”-20 female thread, mounted on a standard 5/8” (16mm) baby pin. This configuration allows attachment of accessories that accept a 1/4”-20 male screw while using the common baby pin interface.

Compact dimensions and capacity

This telescopic hanger is built for short-range extension. It ships closed at a compact length and extends to a modest maximum height, while handling a defined maximum load. The unit is lightweight and designed to be easy to move and position.

Practical notes

Use the quick-release ball safety pin to lock the riser firmly at the desired height. In addition, secure the safety wire when mounting the hanger to ensure the clamp cannot drop off unexpectedly. The top collar provides a stable pivot point during pan adjustments even if you loosen the clamp knob briefly.

FAQ

Question: What thread is available on the top of the hanger?
Answer: The top of the 5/8” (16mm) baby pin includes a 1/4”-20 female thread for attaching accessories.

Question: How does the hanger prevent the riser from slipping?
Answer: A quick-release ball safety pin locks the riser in place to prevent slipping, and the safety wire on the column adds extra protection against unexpected clamp drop-off.

Question: Can I adjust pan while the clamp knob is loose?
Answer: Yes. The collar on the top of the telescopic hanger keeps the unit safe for pan adjustment even while the clamp knob is loosened.

Question: What are the physical limits of this hanger?
Answer: The hanger closes to 53.3cm (1.5 feet), extends to 91.4cm (3feet), weighs 3kg, and supports a maximum load of 15kg.
