Nanlite PavoTube II 30XR 4KIT LED Tube Light

Nanlite PavoTube II 30XR 4KIT – 4' RGBWW LED Pixel Tubes with CRMX LumenRadio Wireless DMX

The Nanlite PavoTube II 30XR 4KIT delivers four 4-foot RGBWW LED pixel tubes designed for filmmakers and creators who need flexible, portable studio-quality lighting. These tubes combine full-spectrum color control, pixel-based effects, and built-in CRMX LumenRadio wireless DMX in a robust metal housing. The kit ships with accessories and a padded carrying bag for on-location use.

Key lighting features and control options

The PavoTube II 30XR offers a wide color temperature range from 2700K to 12000K and includes green-to-magenta adjustment for precise color correction. In addition to CCT control, it provides full RGB hue and saturation control to create any color you need. The tubes average a CRI of 97 and a TLCI of 98, ensuring accurate color rendering for video and photography.

For control, the tubes support multiple options. They include built-in CRMX LumenRadio wireless DMX on XR models. You can also use wireless 2.4 GHz control or Bluetooth via the free NANLINK mobile app for iOS and Android. Additionally, the series is DMX compatible for wired control setups.

Pixel effects and practical effects for creative lighting

The PavoTube II 30XR includes pixel-based special effects plus a range of practical effects. A pixel density of 16 enables detailed animated looks and smooth color transitions. Use the pixel effects to create dynamic motion across the tube, or select practical effects for more traditional on-camera lighting cues.

• Pixel-based effects: Hue Loop, CCT Loop, INT Loop, Multi-color, Gradient, Scrolling, Marching, Flame, Rainbow, Driving.
• Practical effects: Hue Loop, CCT Loop, INT Loop, CCT Flash, HUE Flash, CCT Pulse, Hue Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion, Welding.

Design improvements and durability

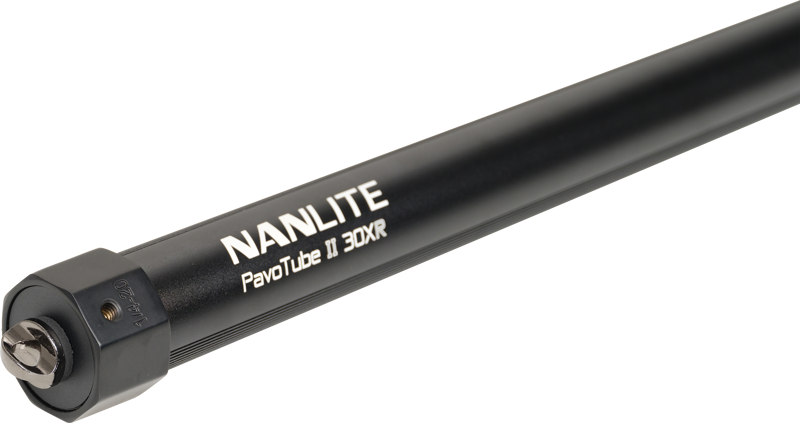

Nanlite refined the X-Series design based on user feedback. The PavoTube II 30XR delivers brighter output and more uniform diffusion compared to earlier models. Its upgraded control panel features locking buttons to prevent accidental changes during shoots. The housing is made from metal for increased durability, and three integrated 1/4"-20 receivers expand mounting and rigging options.

Battery and power options

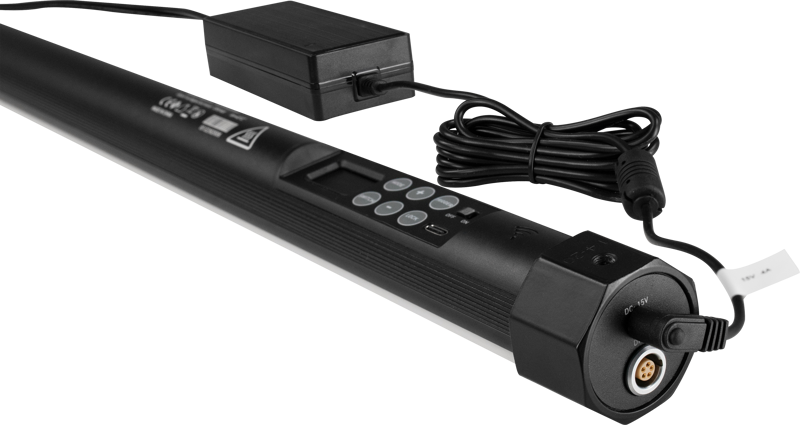

The PavoTube II 30XR includes an internal 4400mAh Li-ion battery. At full brightness, a tube runs untethered for approximately 1 hour and 36 minutes. You can fully recharge the battery in about 3 hours and 30 minutes using the included AC adapter. For longer shoots, the AC adapter can also power the tube continuously while charging or operating the light.

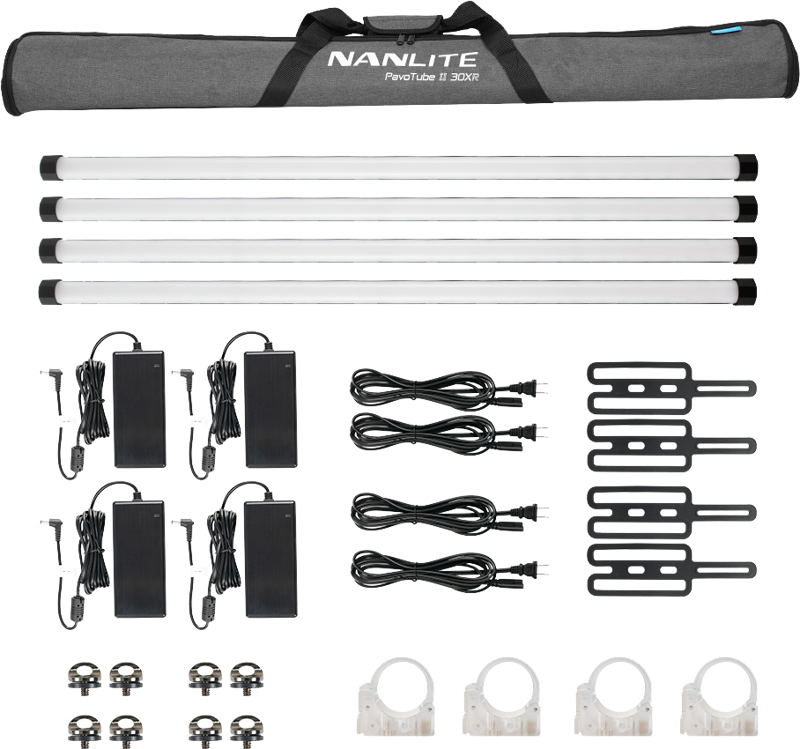

What’s included in the 4KIT

• 4x PavoTube II 30XR
• 4x 15V/4A Power Adapters
• 4x 3m Power Cables
• 4x Power Adapter Safety Straps
• 4x Transparent Polycarbonate T12 Clips with Two 1/4"-20 Receivers
• 8x 1/4"-20 Eye Bolts

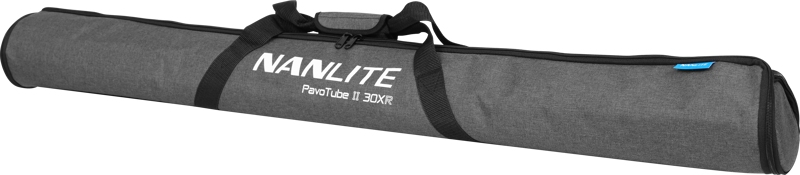

• Padded Carrying Bag
• User Manual

Technical specifications

Use cases and practical benefits

Use the PavoTube II 30XR 4KIT on location for quick, high-quality lighting setups, or integrate the tubes into studio rigs for creative effects and fill light. Because the kit includes four tubes plus power adapters and mounting accessories, you can build multi-tube setups for large scenes or practicals. The padded carrying bag helps transport the kit between locations safely.

Frequently Asked Questions

Question: Can I control the PavoTube II 30XR wirelessly on set?
Answer: Yes. The XR model includes CRMX LumenRadio wireless DMX, and it also supports 2.4 GHz wireless and Bluetooth control through the free NANLINK mobile app for iOS and Android. You can also use standard DMX for wired control.

Question: How long does the internal battery last at full brightness, and can I power the tube while charging?
Answer: At full brightness, the internal 4400mAh battery runs for about 1 hour and 36 minutes. The included AC adapter fully recharges the battery in approximately 3 hours and 30 minutes and can power the tube during extended shoots.

Question: Does the kit include mounting accessories and a case for transport?
Answer: Yes. The 4KIT contains transparent polycarbonate T12 clips with 1/4"-20 receivers, 1/4"-20 eye bolts, power adapter safety straps, and a padded carrying bag for safe transport and flexible mounting options.

Question: What kinds of effects can I create with the PavoTube II 30XR?
Answer: The tube offers both pixel-based effects (like Gradient, Scrolling, Flame, Rainbow) and practical effects (such as Candle/Fire, Police Car, TV, and Welding). The pixel density of 16 enables detailed animated looks, while practical effects provide camera-ready simulations for scenes.
