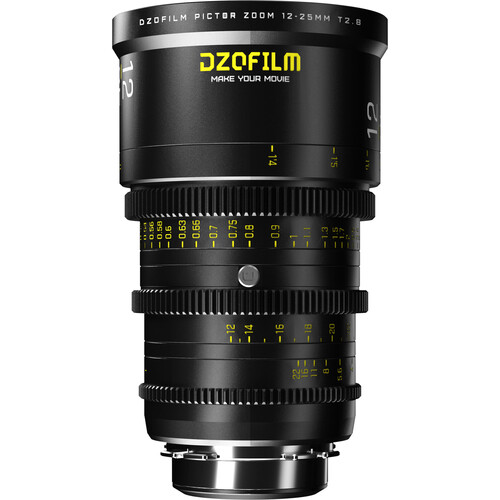

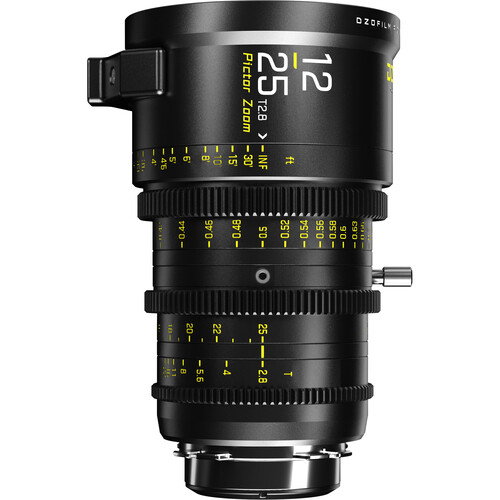

DZOFilm Pictor 12-25mm T2.8 Super35 Parfocal Cinema Zoom Lens PL/EF
The 12–25mm pictor lens can capture more of the visual spectrum than human eyes can see, and the perspective effect of ultra–wide angle can draw attention to the foreground while enhancing the depth of field and tension. Additionally, the exceptional optical design makes it possible to significantly control the distortion when shooting at maximum wide-open aperture, making it ideal for creating majestic and surreal images.
Wider, Closer For Deeper Image Immersion
With a minimum focusing distance of 0.4m (15.74’’), less than one arm’s length, the lens enables you to shoot tighter close-ups in limited space environments with the curvature of field being significantly controlled, creating a more subjective perspective by bringing the audiences closer to the characters and immersing them in the story.
Parfocal Design
Center image stay sharp during zooming in or out. No matter from close-up to wide shot, or rapidly zoom out to long shot, under Parfocal design, focus keeps still all the way along.
Minimal Breathing
Thanks to the floating structure, the breathing of Pictor Zoom lenses are negligible during focusing.
Correlated And Sense Of Space
Deeper DOF and wider FOV captures broaderwider background. Rendering the atmosphere, clearly showings the relationship among subjects, characters and surroundings. Expanding distance between objects and background, reflects the artistic sense of space.
Capturing
The distortion of wide angle lens, exaggerates emotion of characters and highlights the dramatic expression.
Visual Effect
Capturing exaggerating movement, aggrandizes the rhythm of image and enhances the visual impact in the story.
Professional Cine Lenses With Concrete Build
DZOFILM is devoted to exploring the aesthetic of film and design of optics. Both mechanics and optics are designed to be compact and versatile, allowing users to enjoy the smooth and precise operation and every shooting moment with Pictor Zoom.
Gentle Sharpness & Vivid Look
From feature film, commercial, to documentary, Pictor Zoom captures crisp details while expressing organic look and cinematic texture.
Speed Up Your Shooting! Consistent Design & Higher Efficiency
Highly consistent in color and mechanical control, satisfying most shooting demands. Efficient management with the consistent ergonomics of standard M0.8 gear rings. Multiple ways of mounting follow focus, speed up your shooting.
Specs:
DZOFilm Pictor 12-25mm T2.8 Specs
Focal Length
12 to 25mm
Lens Mount
ARRI PL
Lens Format Coverage
Super35/APS-C
Image Circle
31.5 mm
Maximum Aperture
T2.8
Minimum Aperture
T22
Minimum Focus Distance
From Image Plane: 15.7" / 40 cm
Optical Design
21 Elements in 15 Groups
Diaphragm Blades
16
Gear MOD & Pitch
Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch
