PDMOVIE Live Air 2 Compact Wireless Follow Focus Control Kit

PDMOVIE Live Air 2 Compact Wireless Follow Focus Control Kit

The Live Air 2 Compact Wireless Focus Control Kit from PDMOVIE is powered by rechargeable batteries and offers a completely wireless focus system that eliminates cable clutter on your rig. This kit includes a pole-mounted lens motor, a wireless focus control, a single battery, a quad charger, two dual batteries, and two micro-USB charging cables. This system can be mounted to your camera using the included 15mm rod and shoe mount, or by using the separately available Rig Air Cage.
The single battery is used with the controller and the two dual batteries are used with the lens motor, the other as a backup. The lens motor can also be controlled via an accompanying iOS app.
PDMOVIE wireless thumb control for remote controlled air and air motors
With a clamp-on design, the wireless thumb control for remote air and air motors can be clamped onto bars with a diameter of 15 to 30 mm, such as extension bars on single-handed gimbals or axle rigs, or handlebars on double-handed gimbals. By connecting via Bluetooth to the PDMOVIE Remote Air or Live Air engine, it allows a single user to wirelessly control focus from up to 328' away. It runs on an included battery that lasts up to 10 hours on standby and 8 hours in use.

PDMOVIE Bluetooth Motor Mini Pro

The PDMOVIE Bluetooth Motor Mini Pro is a very compact lens motor designed to mount a single 15 mm rod. Thanks to its small and lightweight design, it can even be attached to your camera shoe via a short rod and the necessary rod adapter, among other mounting options. The Motor Mini Pro uses brushless motors and operates quietly and vibration-free. It has a 0.8 MOD gear that is compatible with most film lenses. This pro version is significantly smaller than its predecessor and has a higher torque of 0.5 Nm and lower latency.

The Motor Mini Pro is powered by an included dual battery that provides up to six hours of operating time. A charger is included for up to two dual batteries.

The Motor Mini Pro is compatible with several different PDMOVIE controllers (see Features section below) and can also be controlled via a complementary iOS app, which is available as a free download. The app allows you to control focus, set A/B focus points, change speed and more.

Features:

Integrated single 15mm rod mount
Brushless motors
Quiet and vibration-free performance
0.8 MOD gear
0.5 Nm max torque
Powered by an included dual battery; up to 6 hours of run time
Can be controlled via an accompanying iOS app (control focus, set A/B focus points, change speed and more)
Can be controlled with optional PDMOVIE controllers (see below)
Compatible controllers
Live Air Wireless Thumb Zoom Controller (PDL-TC-AZ)
Live Air Wireless Thumb Focus Controller (PDL-TC-AF)
Wireless Thumb Controller (PDL-TC-AFP)
Remote Air Pro 3 Wireless Hand Controller (PD4-HT)

PDMOVIE PD-LI42B-X2 Dual battery for Live Air 2 motor

The PDMOVIE PD-LI42B-X2 dual battery provides up to six hours of operation for the PDMOVIE Live Air 2 engine. It is inserted directly into the engine. This battery consists of two LI-42B batteries attached together with glue to act as a dual battery. Each individual battery has a capacity of 600mAh and the combined capacity is 1200mAh.

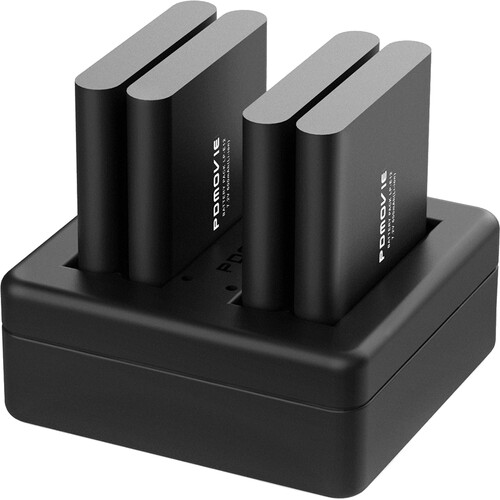

Quad charger for Li-42B batteries

The Li-42B Battery Quad Charger is compatible with the PD-LI42B and PD-LI42B-X2 batteries, allowing the user to charge up to four Li-42B batteries simultaneously. The charger has two charging compartments that hold two batteries each. Four LED indicators, one for each battery, indicate the state of charge and turn green when each battery is charged. The charger is powered from a USB power source (not included) using the included micro-USB cable.
