Atomos Shinobi 7 RX

Atomos Shinobi 7 RX – 7-inch HDR monitor with built-in wireless video receiving

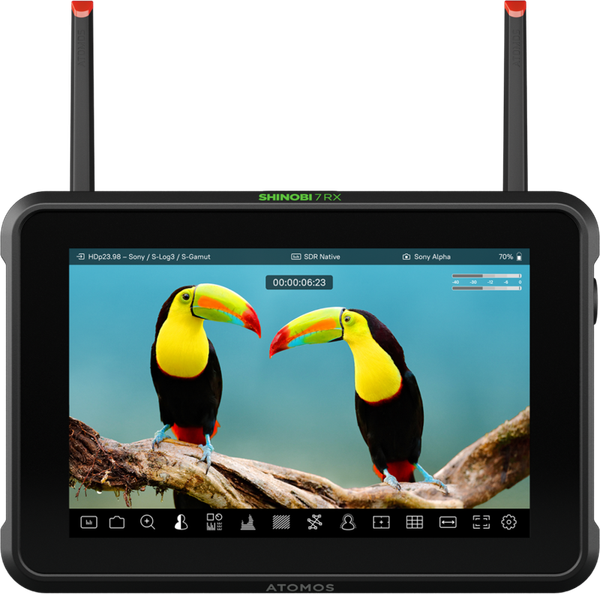

The Atomos Shinobi 7 RX combines a bright, full-featured 7-inch HDR monitor with integrated wireless video receiving. It delivers accurate, real-time monitoring without cables, making it suitable for directors, ACs, clients, and camera operators on large sets or run-and-gun shoots.

Key features at a glance

• Super-bright, 7-inch HDR screen with a peak brightness of 2200 nits
• HDMI and 3G-SDI input and output
• Camera control over USB-C (same as Shinobi II)
• Touch-to-focus (same as Shinobi II)
• Wi-Fi for low latency (<60ms) receive from Atomos TX
• Stunning 10+ stops of dynamic range in real-time from Log/PQ/HLG
• Built-in 3D LUT box
• Supports 8-channel, 24-bit audio input via SDI
• Supports on-device calibration (no computer required)
• Dual NPF battery slots

Camera control and touch-to-focus

You can control Canon, Fujifilm, Nikon, Panasonic, and Sony cameras via USB-C. In addition, Z CAM cameras are supported using an optional USB-C to serial cable. The Shinobi 7 RX includes touch-to-focus functionality similar to the Shinobi II, which helps speed up focus confirmation on set.

Advanced monitoring tools powered by AtomOS 11

The Shinobi 7 RX runs AtomOS 11 and provides professional monitoring tools for exposure, focus, and framing. Use waveform, histogram, vectorscope, EL Zone, ARRI false color, frame guides, anamorphic de-squeeze, and custom LUTs. The unique Analysis mode displays multiple scopes on a single page so you can compare signals at a glance. The user interface remains intuitive, responsive, and fast to navigate.

Connectivity and wireless receiving

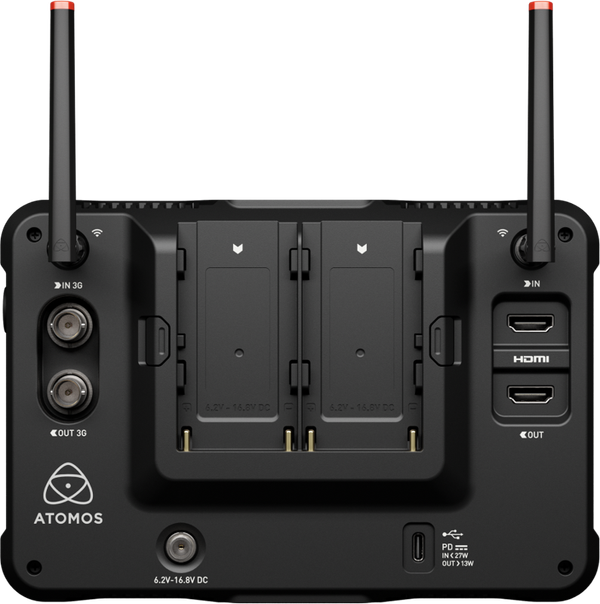

The built-in Wi‑Fi creates a stable link to the TX component of Atomos’ TX-RX wireless system or to an RTSP H.264 stream. Paired with the Atomos TX wireless transmitter, the Shinobi 7 RX receives up to 4Kp30 or 1080p60 HDMI signals with low latency over 5GHz Wi‑Fi. This wireless option makes the unit ideal as a director’s monitor, focus puller’s monitor, or program/preview display for switchers, freeing the camera area from cables.

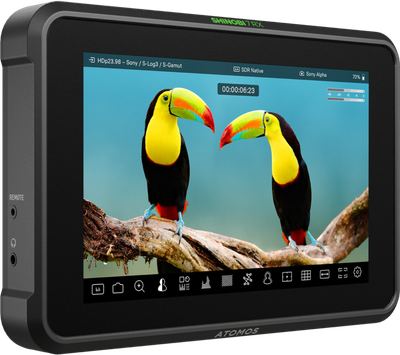

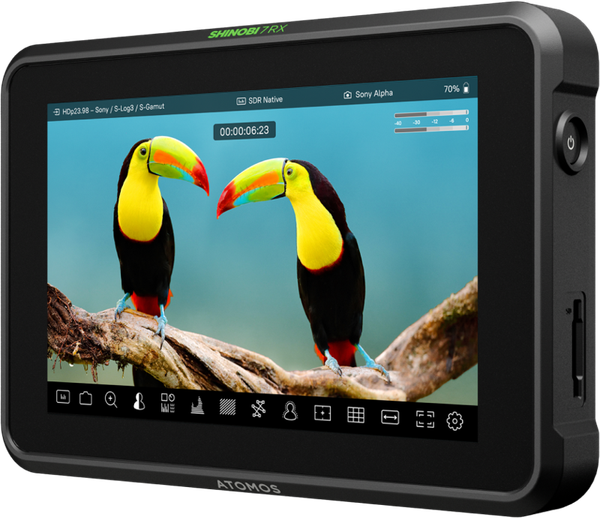

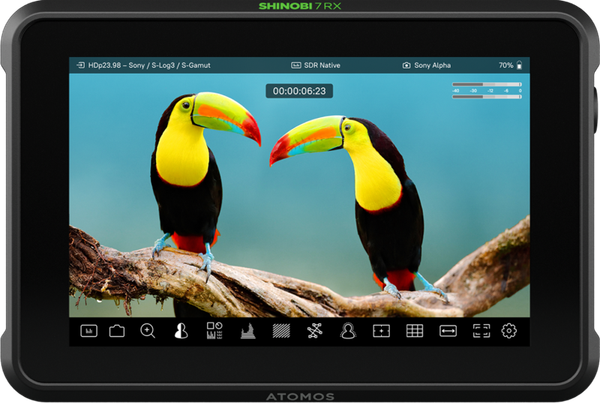

High-brightness 7" touchscreen for HDR and Log workflows

The display has a 1920 x 1200 resolution and 2200 nits peak brightness, suitable for both indoor and outdoor viewing. Consequently, you can rely on the screen for HDR and Log workflows with support for Rec.709, PQ, and HLG monitoring. The ultra-bright panel ensures visibility even in bright ambient conditions.

Built to work on any set

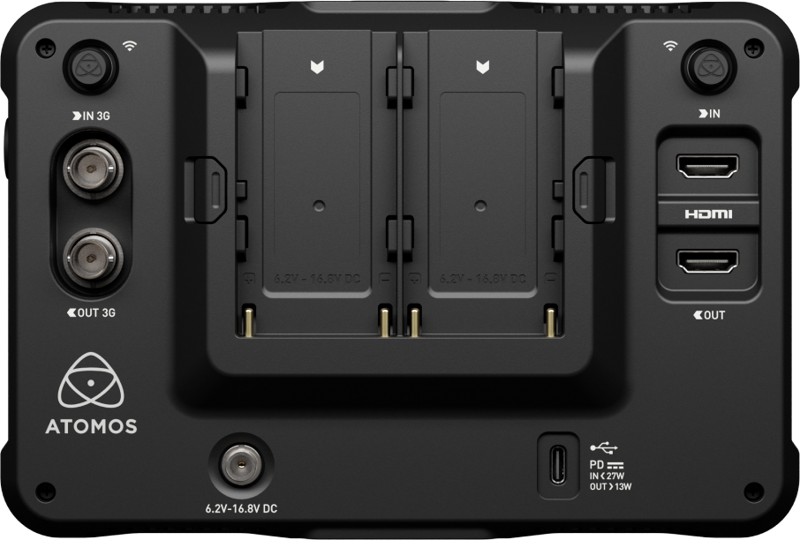

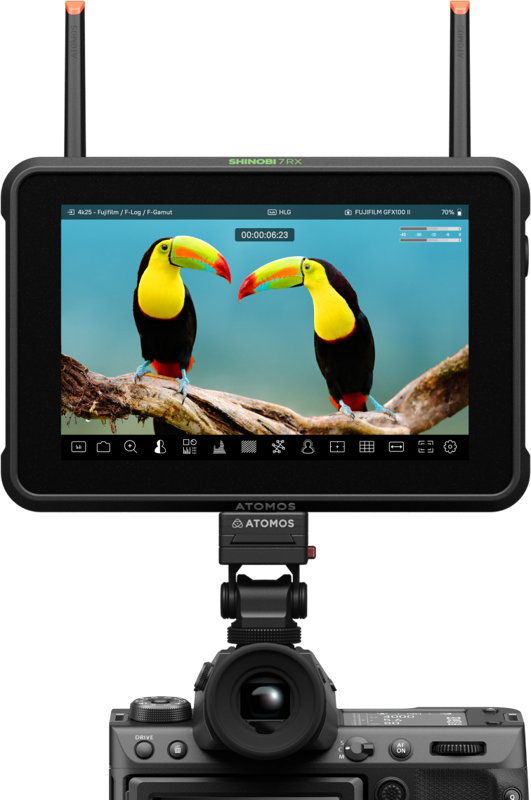

The Shinobi 7 RX is lightweight yet rugged. It includes dual Sony L-series battery slots for hot-swappable power and long-lasting on-set performance. You can also use HDMI input and output to operate the unit as a conventional wired monitor. Mount it on a rig, stand, or use it handheld to serve multiple departments on set—from camera to directing.

What’s in the box?

• 1x Shinobi 7 RX 7″ camera monitor
• 2 x Wi-Fi antenna
• 2 x Wi-Fi antenna caps
• 5 x antenna tips
• USB-C 2.0 cable (1m)
• Quick Start Guide

Specifications

FAQ

Question: Can the Shinobi 7 RX receive wireless video without additional hardware?
Answer: The Shinobi 7 RX receives wireless video when linked to the Atomos TX wireless transmitter or an RTSP H.264 stream. For full wireless TX-RX operation, pair it with the Atomos TX unit.

Question: What camera brands can I control from the Shinobi 7 RX?
Answer: You can control Canon, Fujifilm, Nikon, Panasonic, and Sony cameras via USB-C. Z CAM cameras are supported with an optional USB-C to serial cable.

Question: Is the display suitable for outdoor use and HDR workflows?
Answer: Yes. The display is 1920 x 1200 with a peak brightness of 2200 nits and supports Rec.709, PQ, and HLG, making it well suited for HDR and bright outdoor conditions.

Question: What monitoring tools are available on the Shinobi 7 RX?
Answer: AtomOS 11 provides waveform, histogram, vectorscope, EL Zone, ARRI false color, frame guides, anamorphic de‑squeeze, custom LUTs, and the Analysis mode that shows multiple scopes on a single screen.

Question: What’s included in the box with the Shinobi 7 RX?
Answer: The package includes the Shinobi 7 RX monitor, two Wi‑Fi antennas and caps, five antenna tips, a 1 m USB‑C 2.0 cable, and a Quick Start Guide.
