SmallRig 5577 FSD18 FreeSpeed Heavy-Duty Aluminum Alloy Tripod
- VAT free purchase available at checkout.
- BrandSmallRig
Description
Article no.: 31563

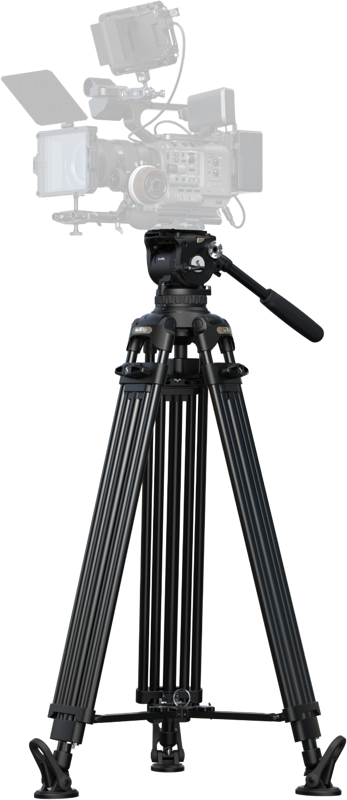

SmallRig 5577 FSD18 FreeSpeed Heavy-Duty Aluminum Alloy Tripod – Rapid deployment with heavy-load stability
Designed for professional videography, the SmallRig 5577 FSD18 delivers fast setup and reliable support for heavier camera systems. It combines a one-step leg deployment knob for quick height changes with a robust tripod and fluid head combination that manages significant payloads.

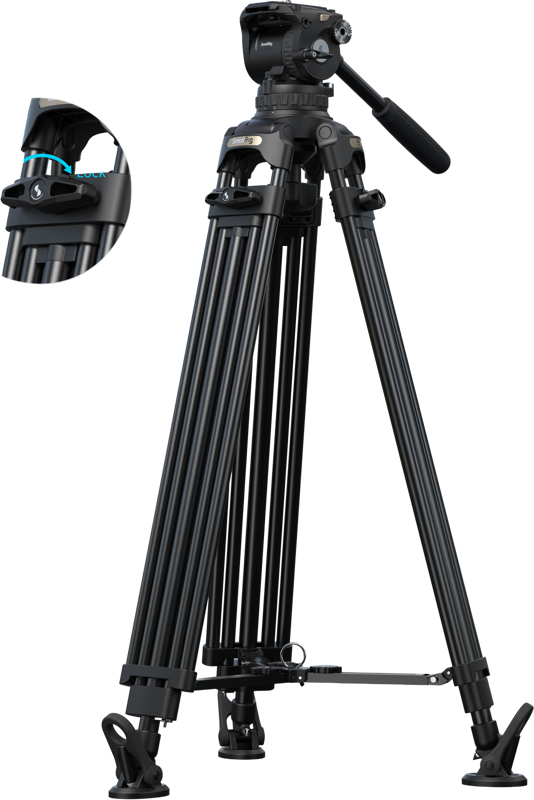

Construction and leg design
The tripod uses aluminum alloy legs with an 18 mm diameter in a 3-section, 2-2-1 segment configuration. It mounts on a standard 100 mm bowl base. These construction details contribute to stable support while keeping the design straightforward and serviceable on location.
Fluid head performance and controls
The tripod pairs with a fluid head that provides 7-step counterbalance and independent 4-level damping control for both tilt and pan. The counterbalance mechanism operates across a load range of 4.0–10.0 kg, allowing you to fine-tune support for different camera setups. In addition, the head lists a safe operational weight of 15 kg and a maximum load capacity of 17 kg.
The head's handle length adjusts from 38.5 to 55.0 cm, and the quick release plate length is 10.0 cm, giving you familiar handling and mounting dimensions for many workflow scenarios.
Height range and shooting versatility

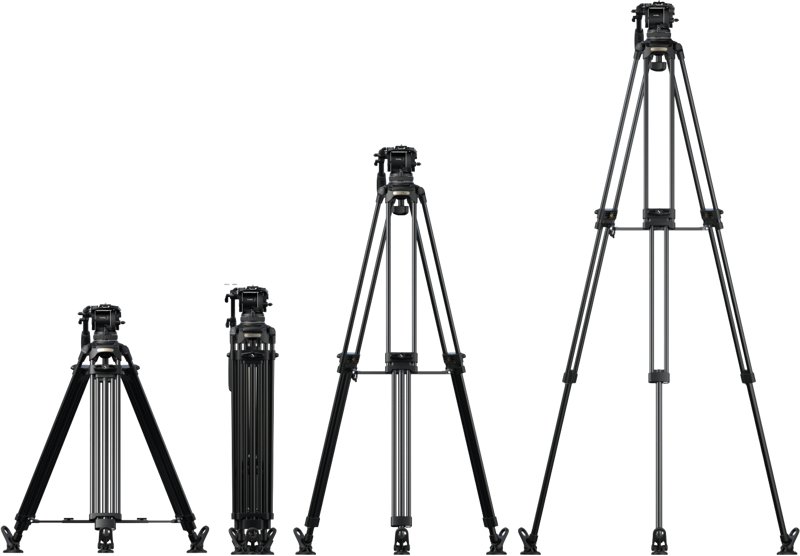

The tripod's working height ranges from 89.8 cm to 200.5 cm. This range supports low-angle setups as well as higher shooting positions, helping you capture smooth motion shots and maintain stability when working with heavier camera rigs.
Case, transport and protection
The included storage case features a two-way YKK zipper and a wide opening for easy packing and unpacking. Inside the case, three hook-and-loop straps secure the tripod during transport. A reinforced plastic base plate in the bag provides additional protection against impacts while carrying or storing the tripod.
Compatibility
- Standard Manfrotto Quick Release Plates (501PL)
- DJI Manfrotto Quick Release Plates
- 100 mm bowl base
Packaging includes
- Tripod (Alu)
- 7-step counterbalance & 4+4 damping control head: supports a safe load of 15 kg and a maximum load of 17 kg
- Allen wrench
- Storage bag
- Phone clamp
Technical specifications
| Specification | Value |
|---|---|
| Tilt Damping Levels | 4 |
| Pan Damping Levels | 4 |
| Counterbalance Levels | 7 |
| Counterbalance Load Range | 4.0–10.0 kg |
| Handle Length | 38.5–55.0 cm |
| Quick Release Plate Length | 10.0 cm |
FAQ
Question: What load range does the counterbalance support?
Answer: The counterbalance mechanism supports loads from 4.0 to 10.0 kg, enabling you to balance a variety of camera setups within that range.
Question: What is the tripod's safe and maximum load capacity?
Answer: The paired fluid head offers a safe operational weight of 15 kg and a maximum load capacity of 17 kg, giving you clear limits for heavier systems.
Question: Is the tripod compatible with common quick release plates and bowl systems?
Answer: Yes. It accepts Standard Manfrotto Quick Release Plates (501PL) and DJI Manfrotto Quick Release Plates, and it uses a standard 100 mm bowl base for mounting on compatible support systems.
Question: Does the product include transport protection and accessories?
Answer: Yes. The tripod ships with a storage bag that has a two-way YKK zipper, a wide opening, three internal hook-and-loop straps to secure the tripod, and a reinforced plastic base plate for extra impact protection during transport. The package also includes an Allen wrench and a phone clamp.
