Aputure F14 Fresnel

Aputure F14 Fresnel - Large Motorized Fresnel

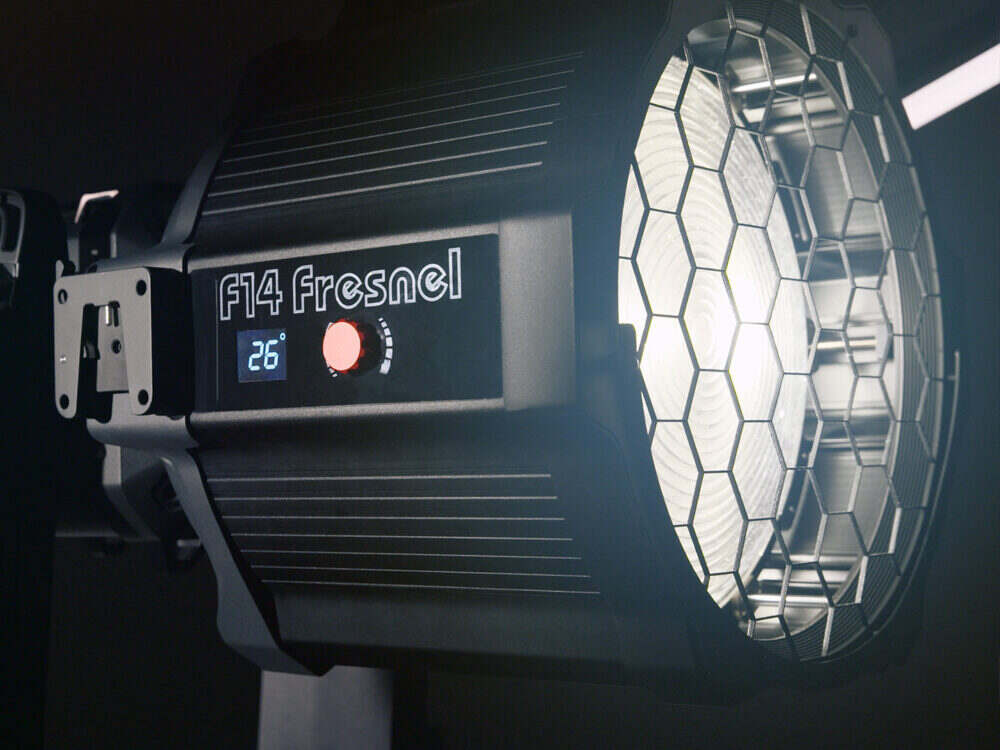

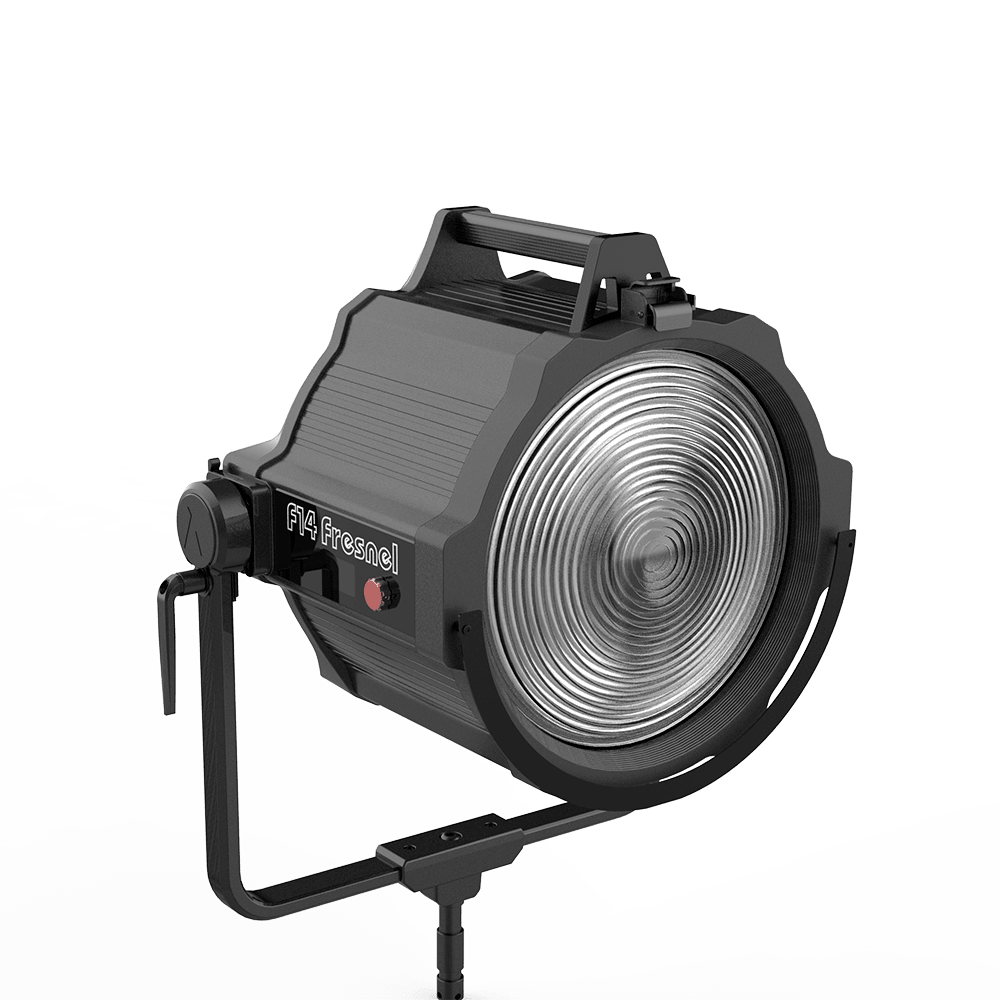

The F14 Fresnel is an electronic A-Mount Fresnel modifier with a large 14-inch (350mm) diameter lens and a motorized 18º-45º spot-flood adjustable beam angle range*. Designed for Aputure’s all-new high-output A-Mount point-source fixtures, the Electro Storm CS15 and Electro Storm XT26, the F14 Fresnel optimizes and amplifies the light output, providing smooth, remote adjustability and a beautiful light quality only achievable with large Fresnels.

CONTROL YOUR WAY

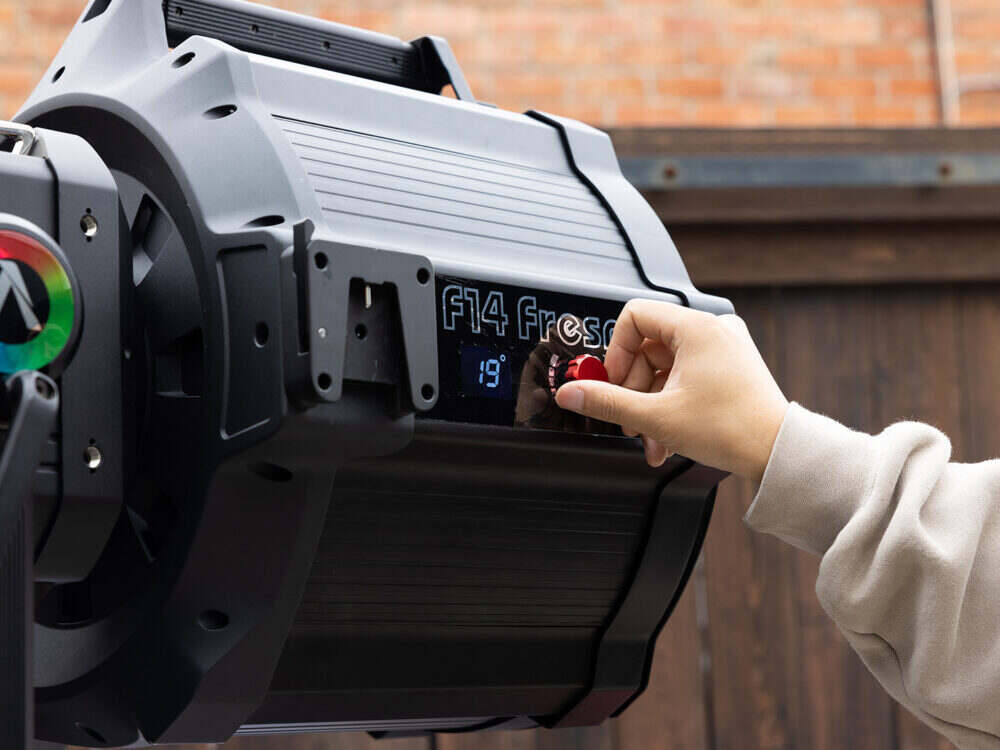

Precision control on professional film sets is key. Utilizing the A-Mount and built-in motors, the motorized F14 Fresnel can smoothly and accurately transition from a narrow, focused throw to a wider flood light using the control knob and display screen on the side of the motorized modifier. And when rigged in hard-to-reach places, the beam angle can also be adjusted remotely via the Sidus Link app or DMX controls.

Included:

F14 Fresnel
F14 Fresnel Yoke
F14 Barn Doors
F14 Fresnel Sled
Safety Chain
Flight Case

Aputure F14 Fresnel Specs:

WEIGHT

F14 Fresnel	13kg / 28.66lbs
F14 Fresnel Yoke	3.5kg / 7.72lbs
F14 Barn Doors	4kg / 8.82lbs

DIMENSIONS

F14 Fresnel	35.5 x 50.0 x 47.25cm / 13.98 x 19.69 x 18.6in
F14 Fresnel Yoke	64.7 x 8.8 x 58.8cm / 25.47 x 3.46 x 23.15in
F14 Barn Doors	43.5 x 40.0 x 4.5cm / 17.13 x 15.75 x 23.15in
