Aputure INFINIMAT 1x4 Kit Led Panel Mat
£1,802.90
- VAT free purchase available at checkout.
- BrandAputure
Description
Article no.: 10607_1

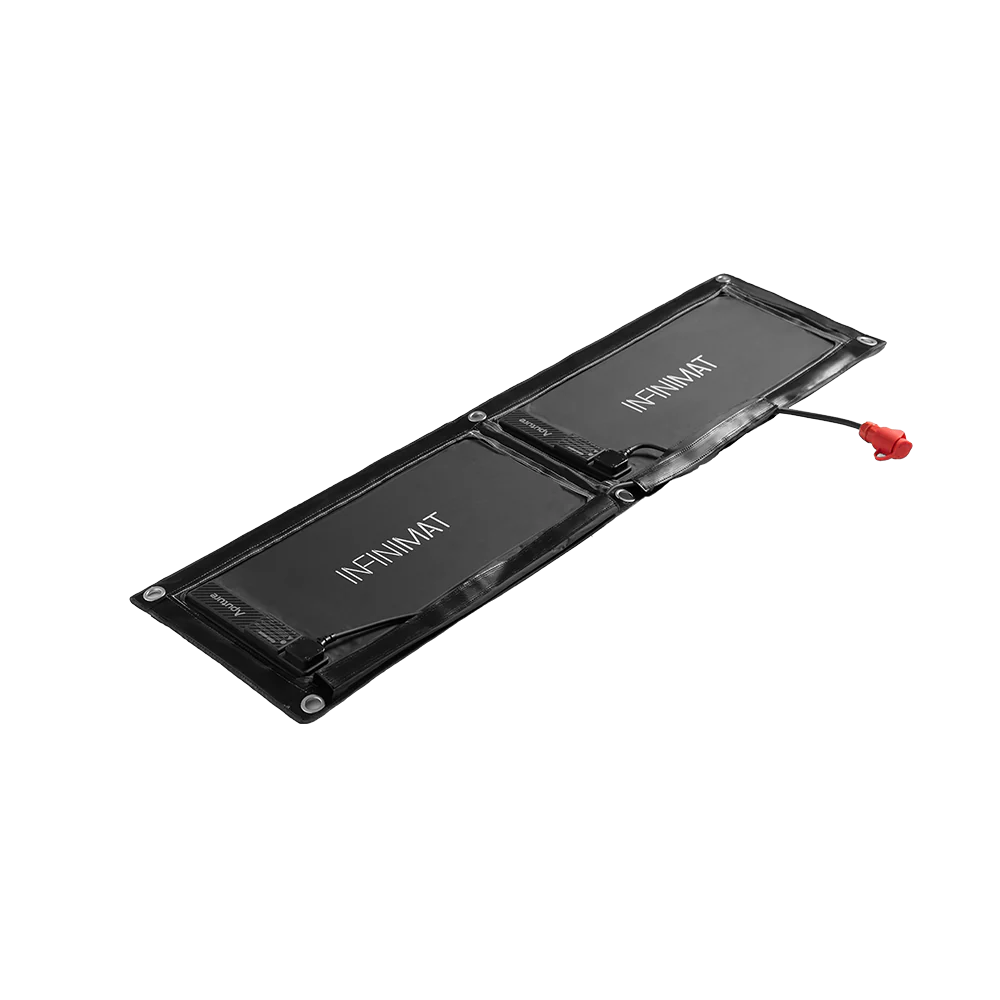

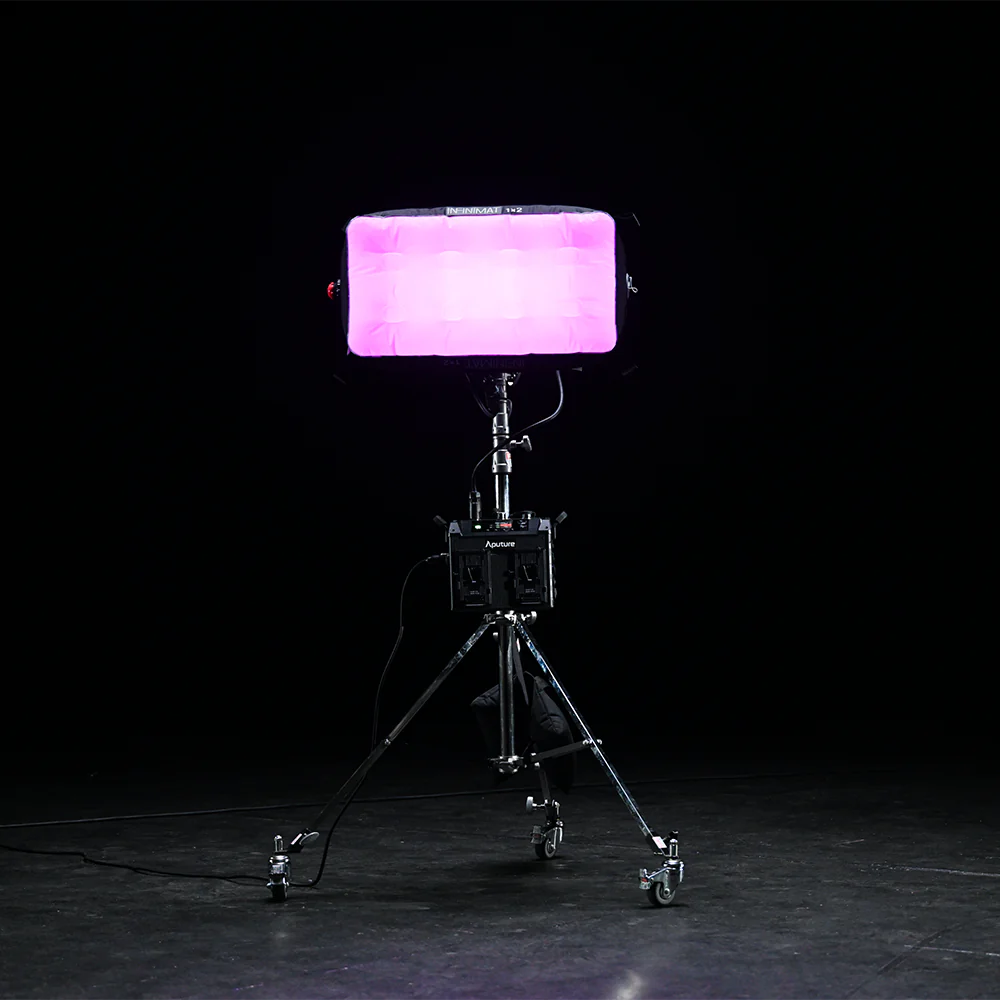

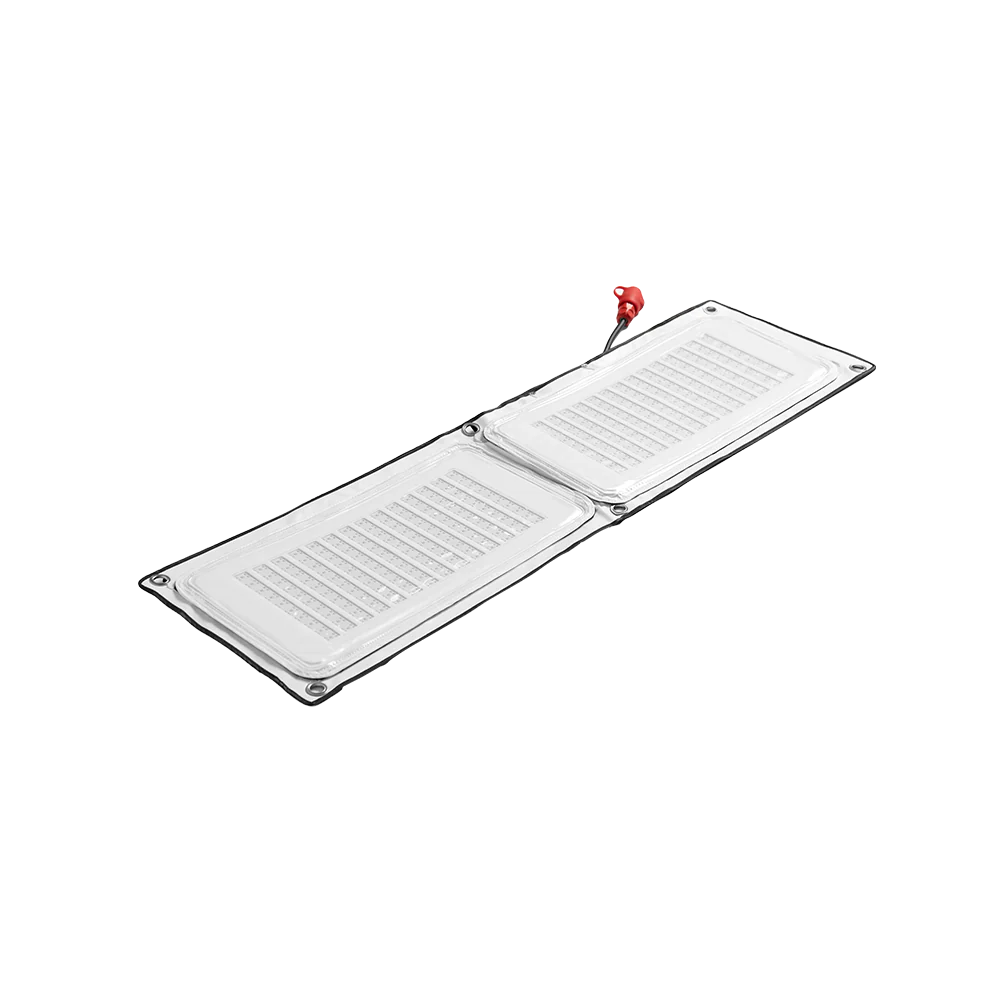

Aputure INFINIMAT 1x4 Kit Led Panel Mat
INFINIMATS can be used as a mat or as an inflatable. They can be mounted to industry standard frames and brackets, have their inflatable hold their shape, or be draped or hanged. Multiple INFINIMATS can be configured together to create additional sizes and shapes, and the control boxes can power & operate multiple lights.
DOUBLE THE OUTPUT
The INFINIMATs are higher wattage and brighter than other mats and inflatables of similar sizes. With their increased output the INFINIMATs are useful in a variety of production settings, even including daylight, making them a workhorse rather than a niche tool.
RENTAL-GRADE CONSTRUCTION
The INFINIMATs are designed with the rental client in mind, with heavy-duty durable construction, a modular architecture for a variety of uses and easy repair, and IP65 weather rating.
PIXEL CONTROL AT SCALE
All INFINIMATs are RGBWW and are configured with 1x2 or 2x2 pixels. The INFINIMAT control boxes utilize dual dimming control systems. This allows them to fine tune dimming to extremely low levels before going dark while also maintaining accurate colors. This accurate dimming is available across all dimming curves.
Designed to Scale
The INFINIMAT series offers many different sizes that suit every scale of production, whether you are lighting commercial tabletop products or large narrative scenes. Each INFINIMAT is made up of individual 1x2 or 2x2 RGBWW pixels that can be controlled independently for even more lighting nuance. From the 1x2 to the 20x20, each INFINIMAT comes with an inflatable airbag, diffusion, and light control grid. Starting with the 4x4 going up in size, each INFINIMAT kit also includes a skirt for controlling spill
Highest Output on the market
The INFINIMAT series shines at up to double the output compared to competitor light mats of similar sizes. The
INFINIMAT 2x4 outputs 400W at max, which is twice the output of its closest competitor by size.
Pump and shoot
We designed each inflatable airbag so it can be stored mounted to its mat, so users only ever have to pump the airbag with the included handheld battery-operated air compressor or air pump, and they are ready to go. The INFINIMAT 2x4 airbag takes less than a minute to setup, while the INFINIMAT 8x8 airbag takes at most four minutes to inflate. The INFINIMAT can be used with the included quick-connect frame or hung in place for easy setup.
One ballast, multiple lights
A unique feature of the INFINIMAT system is its capability to power and control multiple lampheads with just one control unit. The lineup offers a 400W control unit and a 1600W control unit. One 400W control unit can power two INFINIMAT 1x4s or two INFINMAT 1x2s plus an INFINIMAT 1x4.
Light Engine Modularity
The INFINIMAT system was designed as an array utilizing 1x2 and 2x2 full color light panels, meaning that they can be easily replaced on the field if any were to go down.
Heavy Duty IP65 Waterproof Rating
With high-grade material and weather-sealing on all ports, the INFINIMATs will withstand the elements with its IP65 waterproof construction, making it suitable for rental punishment.

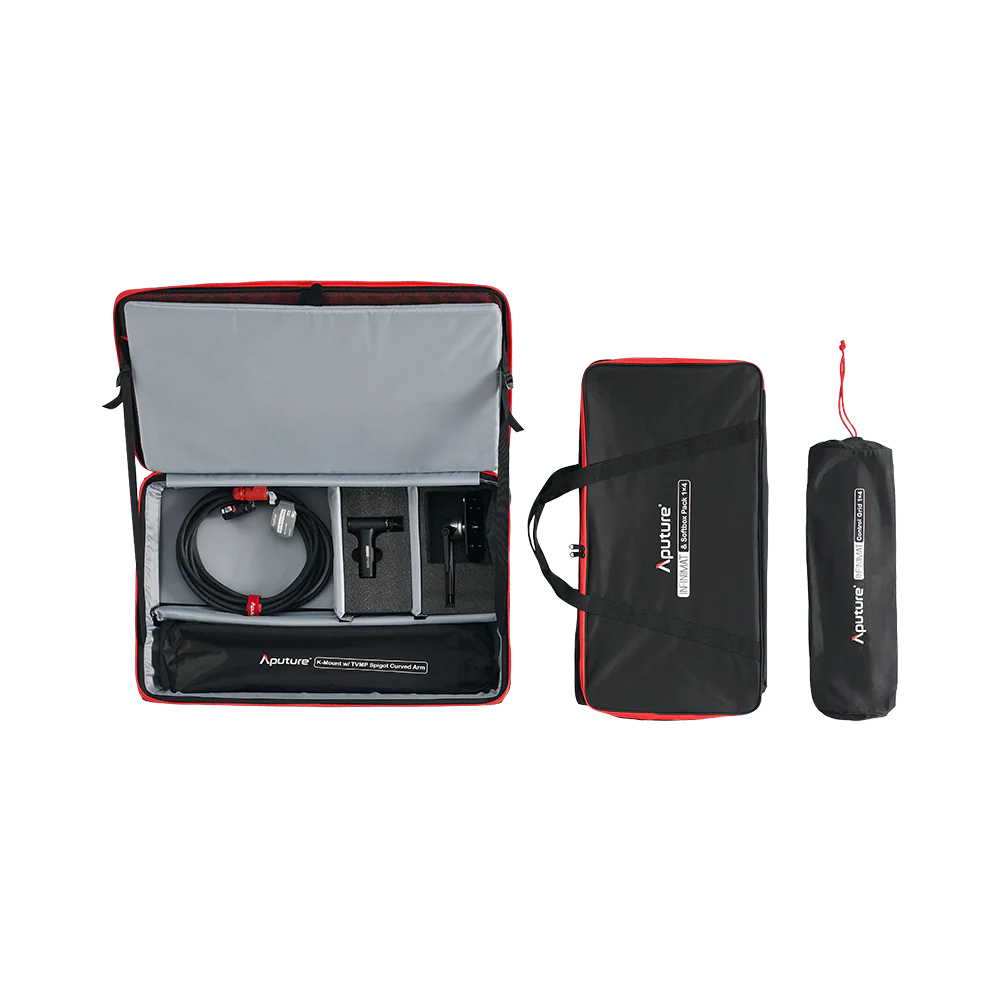

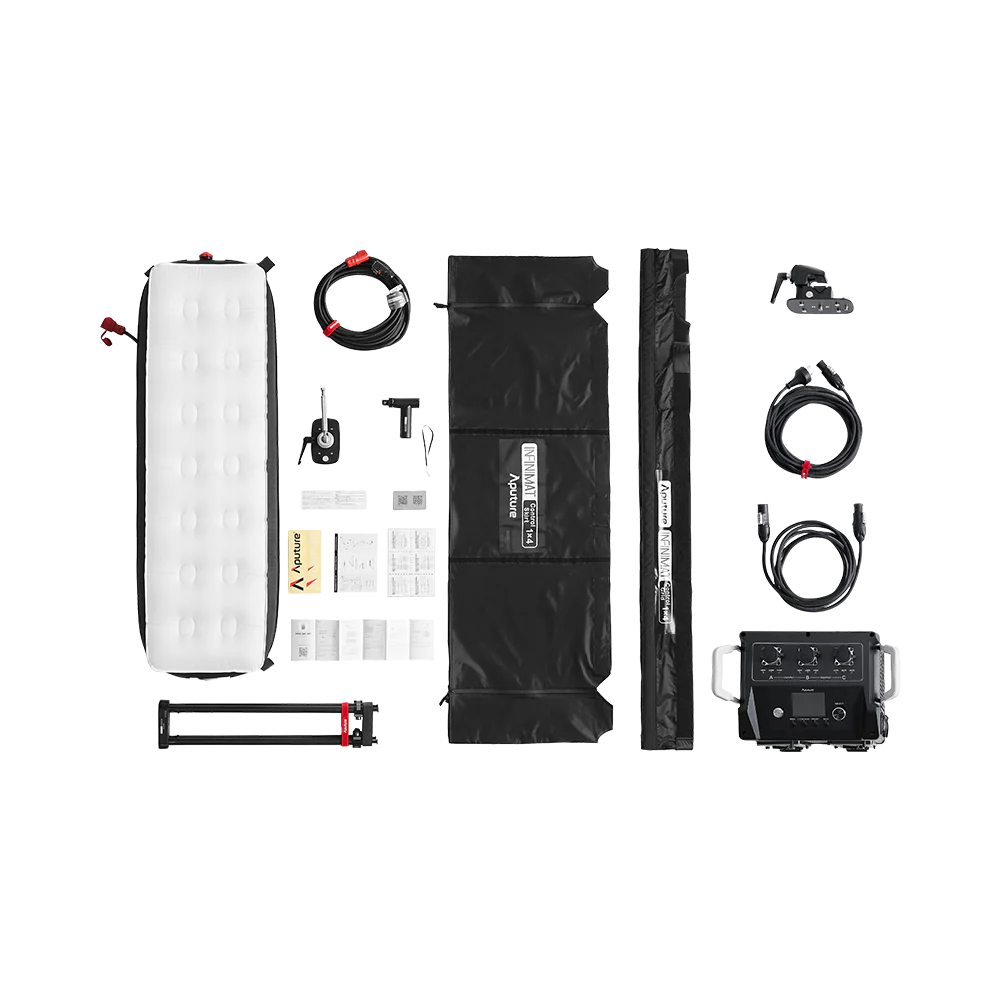

Included:
1x Rolling Soft Case1x Aputure INFINIMAT 1x4
1x Aputure INFINIMAT 7.5m Head Cable (400W)
1x Aputure INFINIMAT Mounting Bracket 1x2
1x Aputure K-Mount Arm w/ Straight 5/8” Pin

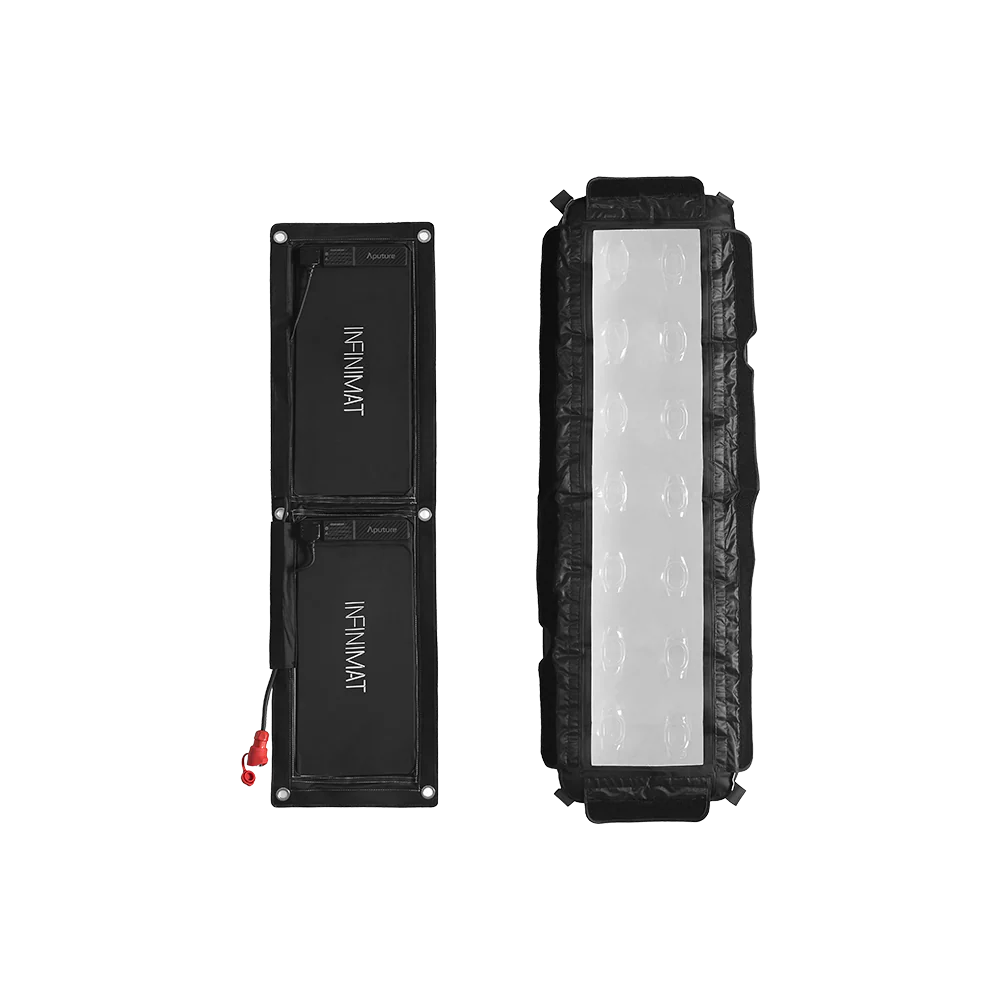

1x Aputure INFINIMAT Inflatable Softbox 1x2
1x Aputure INFINIMAT Light Control Skirt
1x2

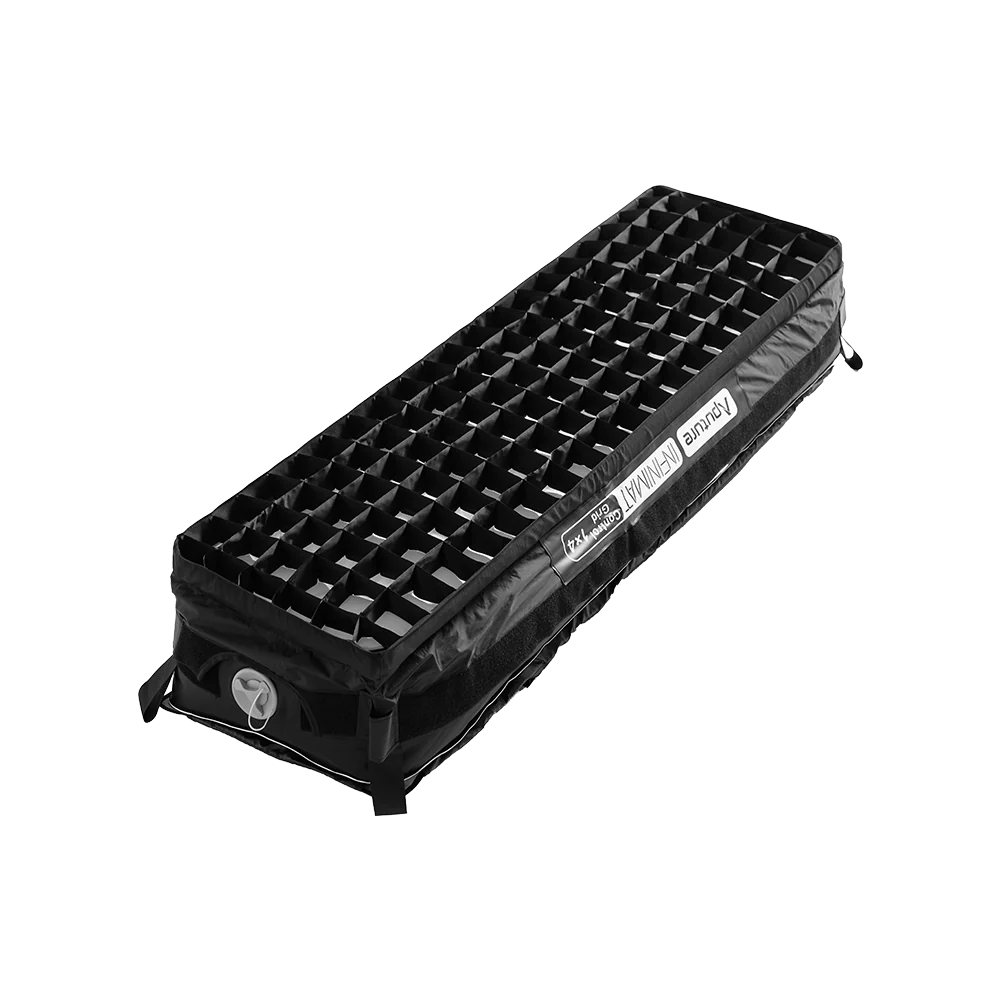

1x Aputure INFINIMAT Light Control Grid 1x2
1x Aputure INFINIMAT Patch Kit
1x Aputure INFINIMAT Air Pump Mini
1x Aputure INFINIMAT Inflatable Tube 1x2
1x Aputure INFINIMAT Control Box 400W (V or
Gold 1x Mount)
1x Aputure True1 AC Power Cable – 6m

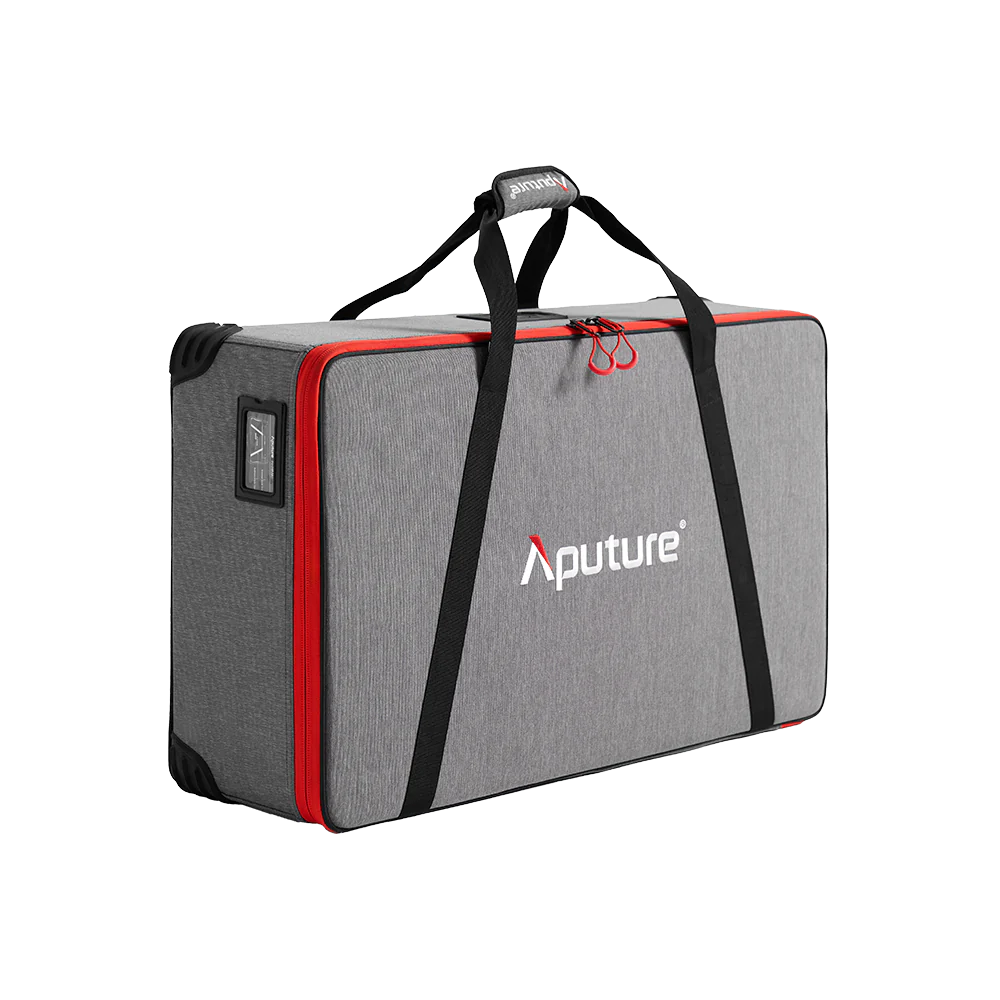

1x Soft Carrying Case
1x Aputure K-Mount Style Mounting Clamp
Specs:
CCT
2,000K – 10,000K
CRI
≥96
TLCI
≥97
CQS
≥95
SSI (D56)
73
TM-30 RF (Average)
92
TM-30 RG (Average)
100
Max Power Consumption
111W
Max Power Output
81W
Weather Resistance Rating
IP65
Pixel Count
1 pixels
Pixel Module
1x2
Softbox Inflation Time (Air Pump Mini)
18 sec
Full-Inflation Duration
7 day
Operating Voltage, DC1 & DC2
12V-16.8V 22V-33.6V
Operating Voltage, AC
100V ~ 264V
Operating Temperature
-20ºC ~ 50ºC
Storage Temperature
-20ºC ~ 85ºC
Firmware Upgradeable
Sidus Link, USB Drive
Wireless Range (Bluetooth & CRMX)
≤100m / ≤328.1ft
Control Box Type
INFINIMAT Control Box 400W
