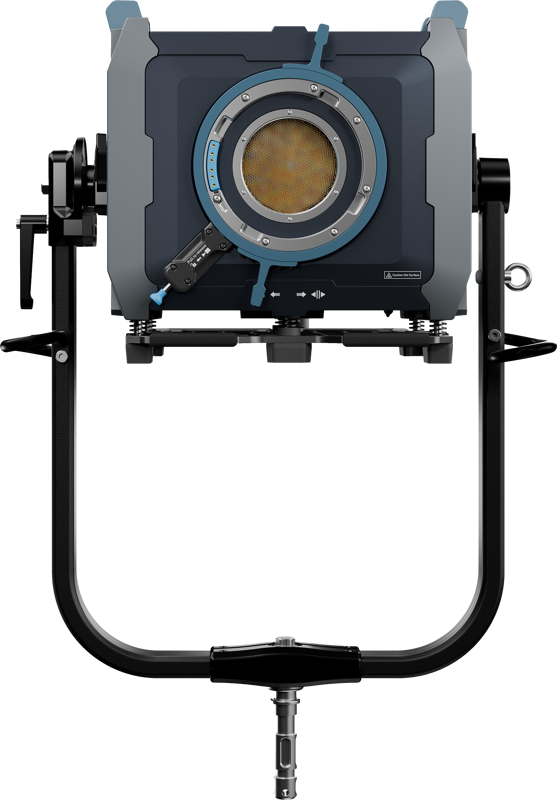

Evoke 5000B Spot Light in Flight Case with 45° Reflector

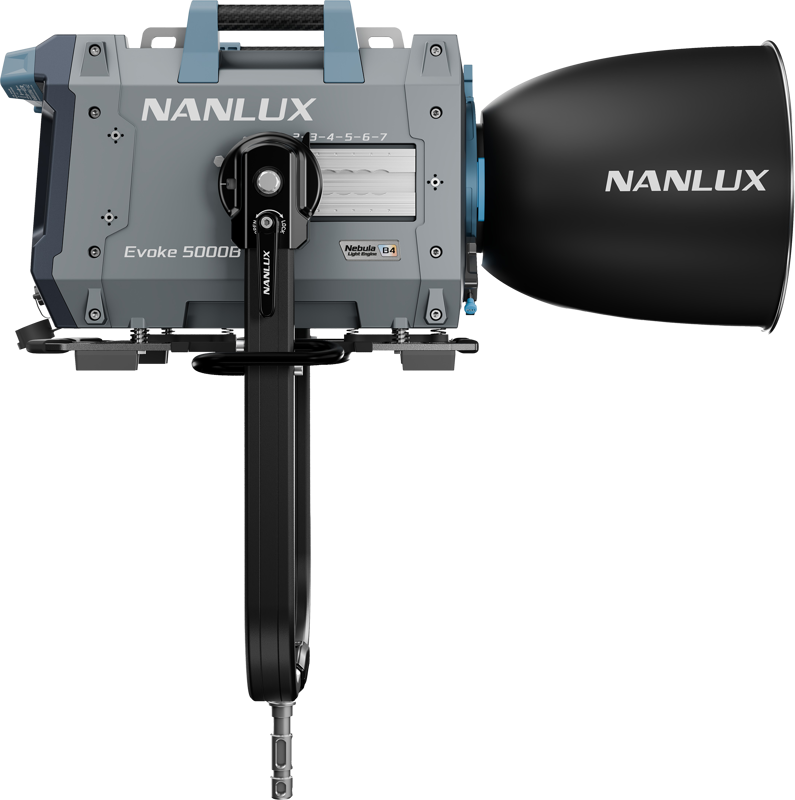

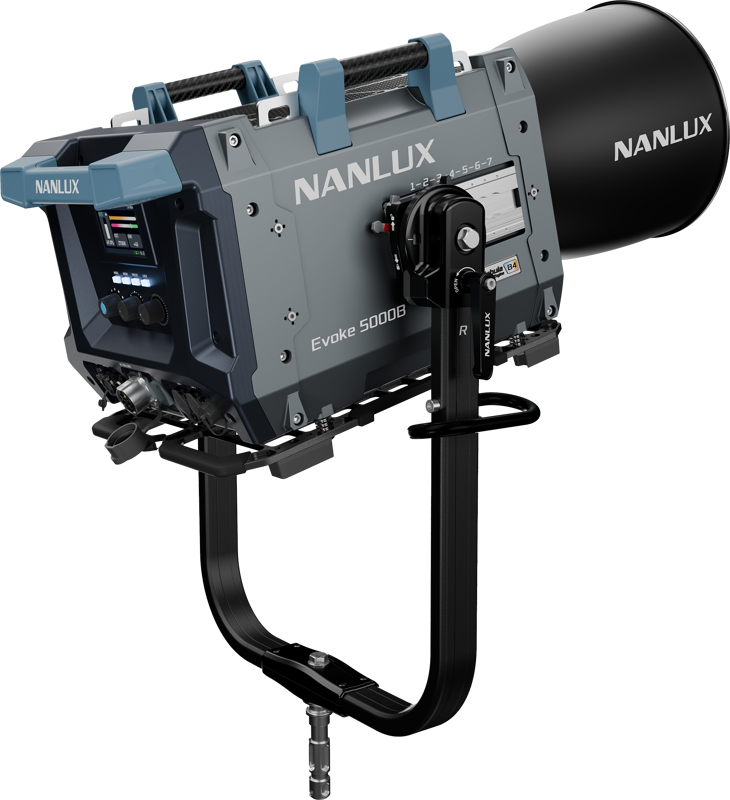

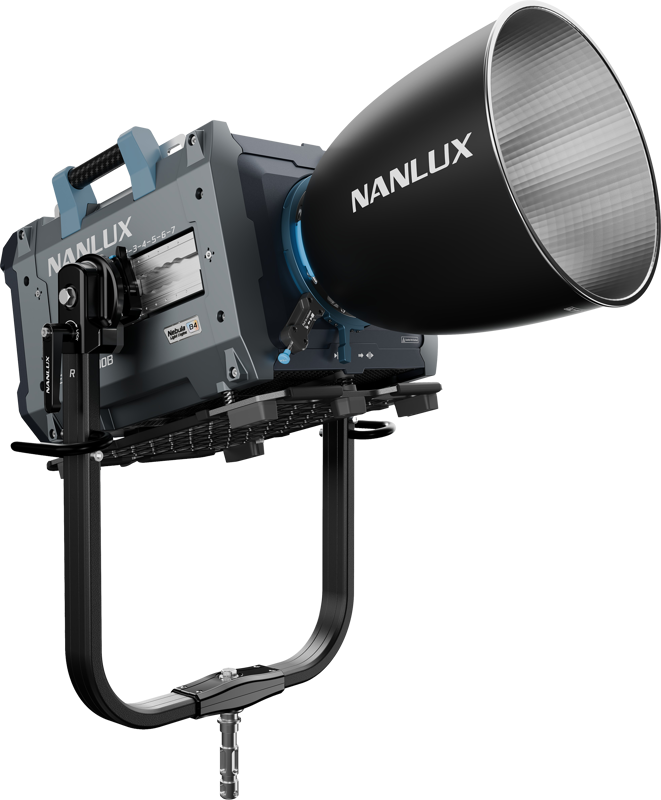

Nanlux Evoke 5000B Spot Light with 45° Reflector

Introducing Nanlux Evoke 5000B, the world's first 5000W stormproof LED bi-color spotlight with Green/Magenta adjustment. This revolutionary LED light delivers unrivaled power, precision and versatility, making it the ultimate tool for professional film and television productions. Designed to replace traditional high-performance fixtures, Evoke 5000B sets a new standard in the industry by combining high-intensity illumination with precise color control, streamlined operation and extreme weather resistance.

Unprecedented power and color accuracy

Equipped with the Nebula B4 Light Engine , the Evoke 5000B offers a color temperature range of 2700K-6500K with ±80 Green/Magenta adjustment, ensuring seamless color matching on set. The ability to adjust both color temperature and green/magenta values makes it an essential tool for cinematographers looking to create consistent and accurate lighting in dynamic shooting environments. With a massive 5000 W power output it rivals a 9kW HMI or 24 kW tungsten lamp and provides 22,210 lux at 5 m (5600 K with a 45° reflector), enabling stunning, high-quality lighting effects with minimal effort.

The combination of high-efficiency LED technology and innovative engineering ensures that Evoke 5000B provides exceptional brightness without excessive heat generation, making it an efficient and reliable choice for demanding production environments. Whether you're shooting in daylight or working with complex lighting setups, the Evoke 5000B offers the flexibility and performance required to achieve professional results.

Compact, weatherproof and built for production

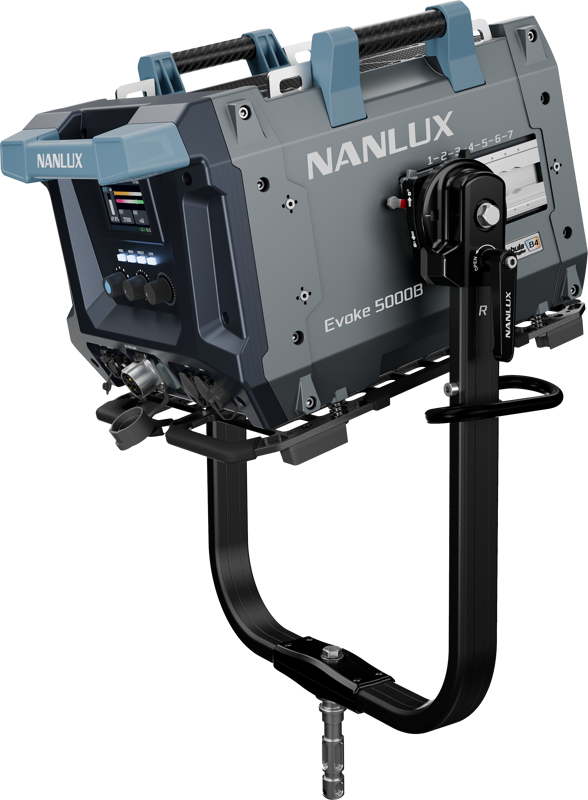

Designed for efficiency, Evoke 5000B integrates the lamp head, controller and power supply into a single luminaire, simplifying installation and transportation. The streamlined design reduces the need for bulky external components, making it easier to quickly set up the fixture on set. Built from high-strength magnesium alloy , it weighs only 46 kg (101 lb) with the yoke, providing exceptional durability without excessive weight.

Its IP66 rating ensures storm-proof durability, allowing it to be used in extreme weather conditions without compromise. Whether exposed to heavy rain, dust or high humidity, the Evoke 5000B continues to perform reliably, making it the perfect choice for outdoor shoots and unpredictable filming conditions.

Superior design and control options

To enhance the user experience and customizability, Evoke 5000B features a host of innovative design elements:

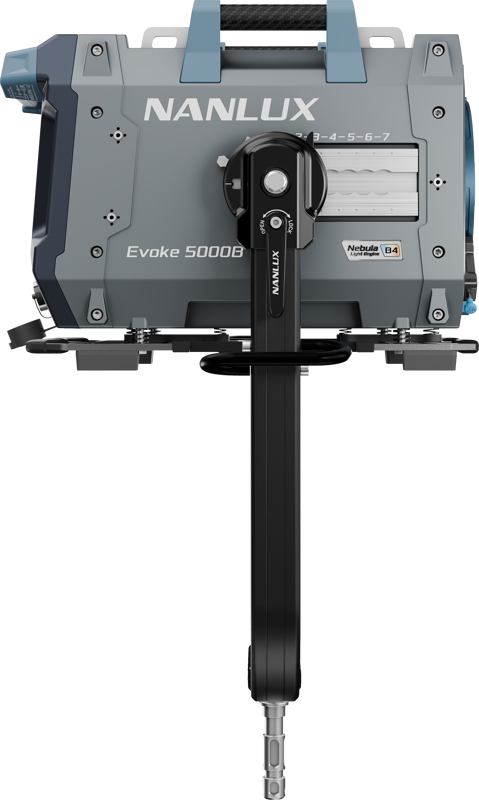

• Balance adjustment rail - Ensures neutral balance when mounting accessories, prevents tilting and improves stability.

• Disc Brake Yoke - Provides better traction and precise positioning, keeping the fixture secure during adjustments.

• Skid System - Prevents wear and tear, improves transportation efficiency and absorbs shock, making it easier to move and store the fixture safely.

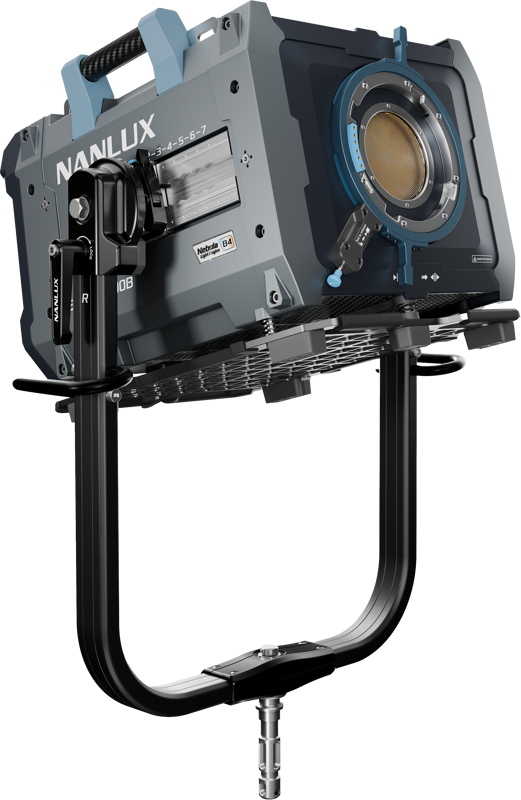

• Dual Security NL Mount with PosiTight System - Ensures stable accessory connections, reducing the risk of accidental detachment during operation.

These design enhancements make the Evoke 5000B a **versatile and user-friendly lighting solution** that is engineered to meet the demands of modern film and TV production.

Advanced dimming and flicker-free performance

Evoke 5000B offers ** seamless dimming from 0.0% to 0.1%**, perfect for smooth transitions and gradual light changes. A newly developed High-Speed Mode eliminates flicker, even at over 10,000 frames per second, making it ideal for high frame rate shooting and slow motion movies.

This level of precision control ensures that filmmakers can achieve exactly the look they need, whether they are working on high-budget feature films, commercial productions or live events. The luminaire's dimming performance is fully linear, providing gradual adjustments without noticeable changes in intensity or color temperature.

Comprehensive control and connectivity

With multiple control options, Evoke 5000B can be seamlessly integrated into professional lighting setups, providing maximum flexibility:

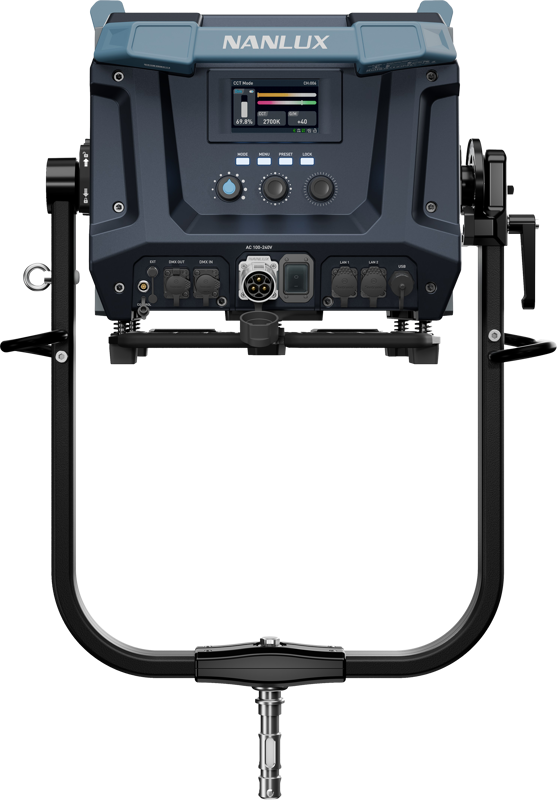

• On-Board Control - Features a 4.3-inch display with an intuitive interface for quick and easy adjustments.

• Wired Controller (WC-EXT) - Provides stable operation with an IP66 rated design and an 8mcable, enabling remote adjustments.

• DMX/RDM & Art-Net/sACN - Supports group control via 5-pin XLR and LAN ports, making it ideal for large-scale productions.

• LumenRadio CRMX - Offers wireless DMX connectivity, reducing cable clutter and making installation easier.

• Nanlink App 2.0 - Allows Bluetooth control for wireless parameter adjustments.

• Remote Controller (optional) - Enables 2.4G wireless control for quick fine tuning from a distance.

These control options make Evoke 5000B an **indispensable tool for professional gaffers and lighting engineers**, ensuring seamless integration with both modern and legacy lighting setups.

Optimized cooling system for quiet operation

A next-generation heat dissipation system ensures efficient cooling with five adjustable fan modes, including Smart, Full Speed, Low Speed, Off and Pause Mode. Smart Mode dynamically adjusts the fan speed and maintains a low noise level of only 44 dB(A) for sound-sensitive environments.

This innovative cooling system prevents overheating while maintaining peak performance, enabling continuous operation in demanding conditions. Whether the Evoke 5000B is used for extended film shoots or high-intensity stage lighting, the cooling system ensuresconsistent, reliable power without excessive noise.

Expandable ecosystem for NL Mount accessories

Designed withthe NL Mount , the Evoke 5000B is fully compatible with Evoke 2400B accessories, including Fresnels, reflectors, parallel beam reflectors and softboxes, reducing additional investment costs while expanding creative possibilities. This modular approach allows users to easily customize their lighting setups and adapt to different shooting requirements without the need for completely new equipment.

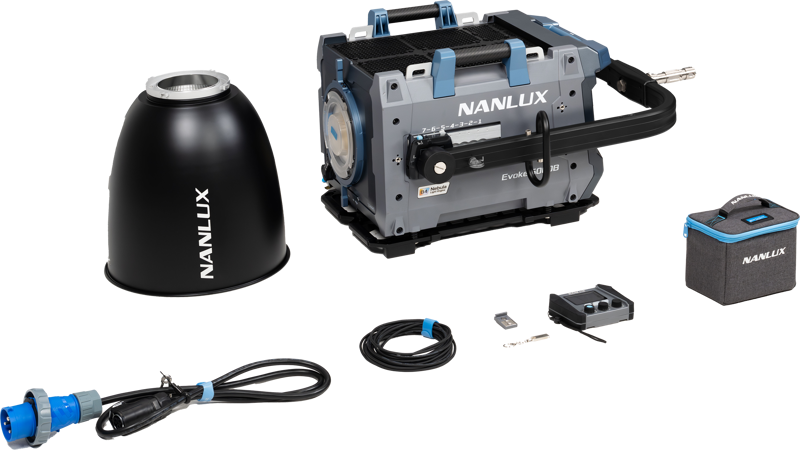

What is included?

For 200V-240V regions:

• Evoke 5000B luminaire x1
• Flight Case (CC-EV5000-FT) x1
• Ok × 1
• AC cable (2 m) × 1
• Reflector × 1
• USB flash drive × 1
• WC-EXT wired controller (with 8 m cable and magnetic base) × 1
• Carrying case × 1
• User manuals × 2
