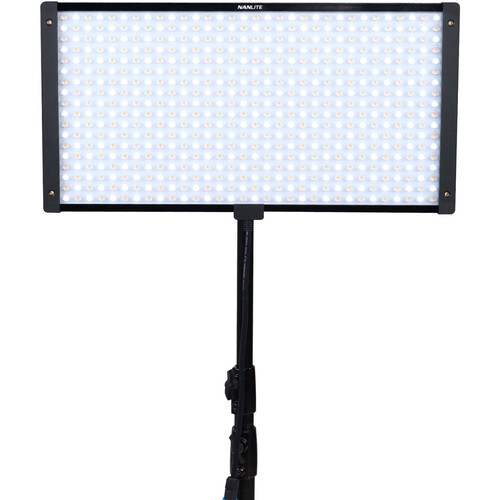

Nanlite PavoSlim 120C RGB LED Panel

Nanlite PavoSlim 120C RGB LED Panel

Nanlite has once again expanded the potential of light panels and introduces a new generation of LED light panels for creators: PavoSlim. PavoSlim combines a thin and lightweight design, fast and convenient installation, high luminance and accurate color rendering to create the full-color PavoSlim 120C. This innovation gives creators more flexible options to realize their visions.

Metal housing, efficient heat dissipation, precise optical lens, efficient converging light (achieves 4 times higher output compared to the average output of similar products).

• Thin and light yet robust (only 1.86 cm thick)
• Quick installation within one minute
• Wireless control Nanlink APP, LumenRadio CRMX
• Durable metal housing, thin and lightweight
• Nominal power: 150W
• Weight: 1.76kg
• Thickness: 1.86cm

With its metal casing, the PavoSlim 120C shows that thinness and robustness can coexist. Even when equipped with a full set of diffusers and installation accessories, it remains lighter and thinner than traditional light panels. This quality makes it indispensable for use in small studios, in places with low ceilings or on film and TV sets with stringent requirements.

Efficient design, maximum output

The Nanlite team has designed a dedicated optical system for PavoSlim's individual chips. By combining efficient heat dissipation with an excellent optical design, PavoSlim achieves a luminous flux that is 4 times higher than the average for similar products.

PavoSlim 120C: 12830lux@1m (light only, 5600K).

Quick installation

Every part of the 120C is designed for quick deployment because every minute counts at the recording site. Even the accessories follow this philosophy and allow for easy and quick installation. The user can easily complete the installation within one minute.

It is worth mentioning that the 120C softboxes have an innovative design for quick set-up and take-down in seconds.

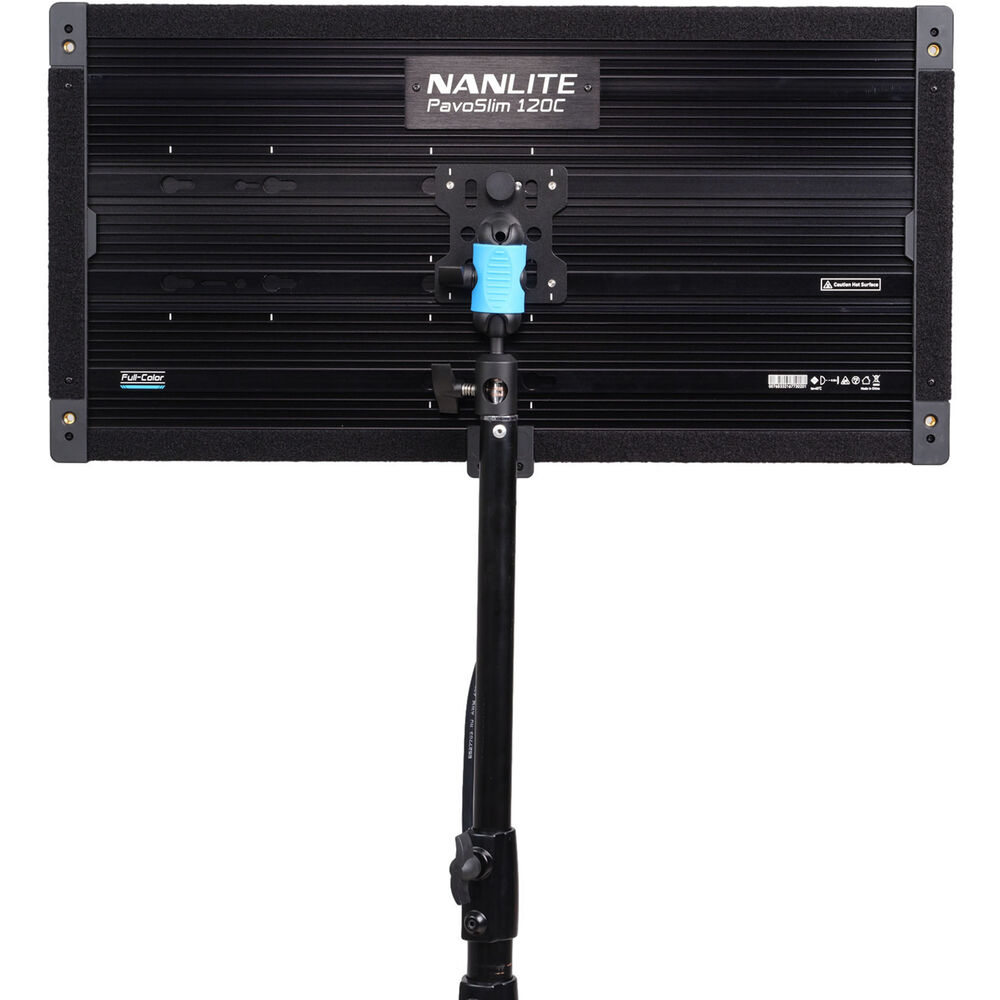

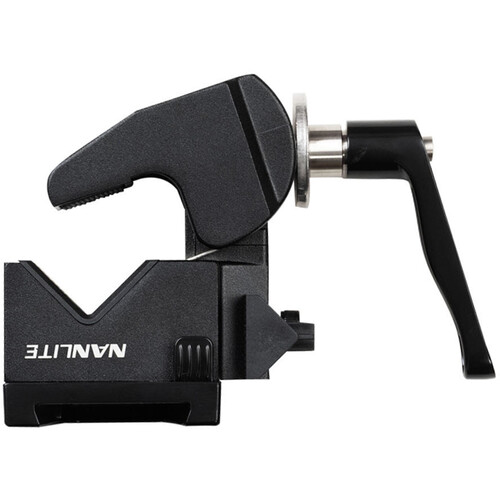

The back of the fixture has multiple sockets for flexible installation, and the controller is equipped with a quick release plate compatible with the quick release clamp (included) also used for Forza II series fixtures (suitable for light stands and trusses). The controller can also be hung on the light stand using its strap.

Different modes

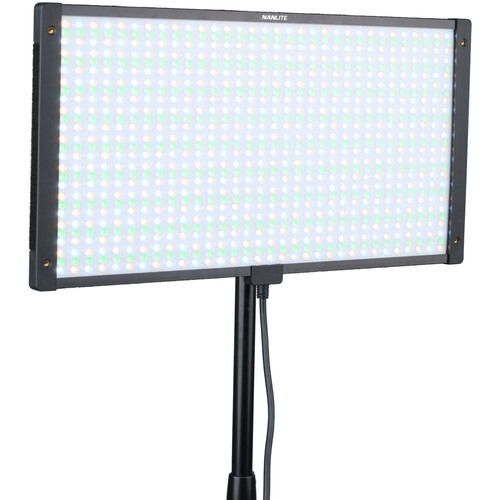

With RGBWW color mixing technology, PavoSlim 60C/120C offers several different lighting modes.

• CCT mode: CCT range: 2700K-7500K (G/M±150) CRI: Average 96, TLCI: Average 97 TM-30 Rf: Average 94 Rg: Average 100 SSI 3200K: 83 5600K: 74
• HSI Mode: This mode allows for quick adjustments to the hue, saturation and intensity of the light with a choice of 36000 colors.
• RGBW Mode: Four separate channels for red, green, blue and white color control, allowing for greater color precision.
• Gel Mode: With 151 built-in gels, this mode can recreate the colors of regular gels, eliminating the need to manually install them and providing convenience for creating ambient and emotional lighting.
• Effect mode: PavoSlim 120C is equipped with 15 effects and can simulate different lighting effects. The parameters of each effect can be adjusted on the panel, with more customized settings available via the Nanlink app, LumenRadio CRMX and DMX/RDM.

Professional control options

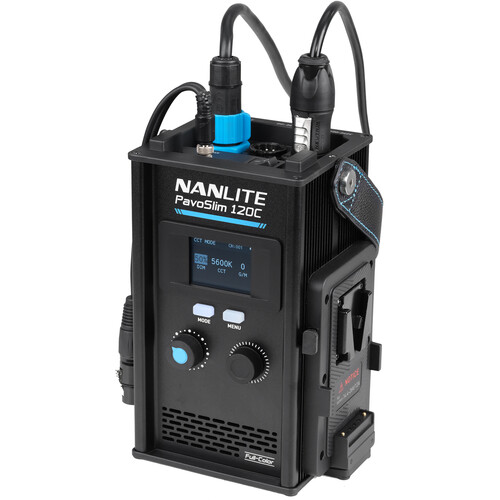

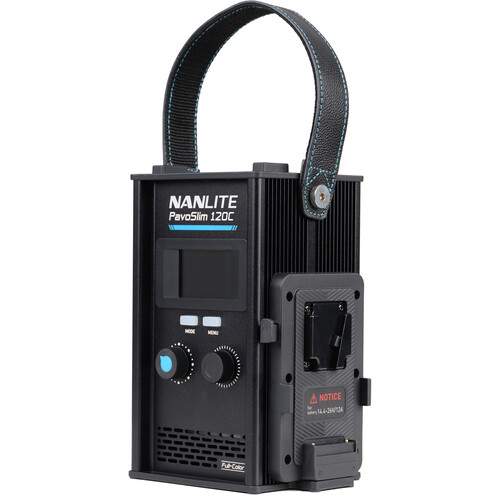

The PavoSlim 120C includes a power controller with an intuitive two-button design, two dials and a two-inch screen.

With built-in 2.4G and Bluetooth modules, PavoSlim can be easily connected to the Nanlink app, facilitating wireless intelligent control of lighting in spaces such as studios. It can also be integrated with other Nanlite lights for varied stage lighting.

With wired DMX/RDM, PavoSlim can also be part of a standardized control system for film and TV, simplifying the implementation of lighting effects.

The PavoSlim 120C also features LumenRadio CRMX for wireless DMX/RDM reception, ensuring stability and flexibility for professional imaging.

Multiple power supply options, implement anywhere

PavoSlim 120C offers different power supply methods. Both models support hot swapping between power sources, facilitating continuous filming.

PavoSlim 120C power supply options

• AC power supply
• DC power supply
• 14.4-14.8 V V-mount battery
• 26V V-mount battery

Multiple accessories

Accessories include a magnetic base adapter with 1/4"-20 thread for each corner of the PavoSlim, an extension cable, foldable and compressible softboxes, and a dual panel connection kit for the PavoSlim 120C.

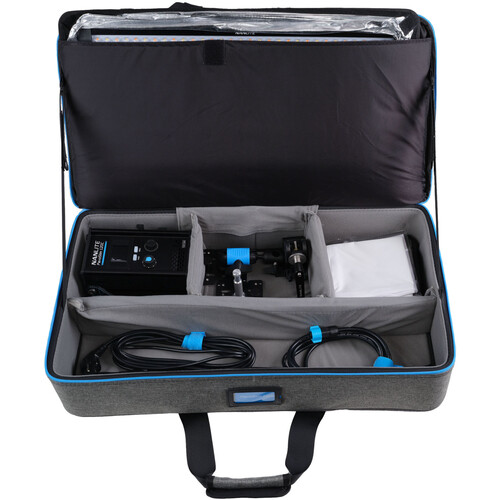

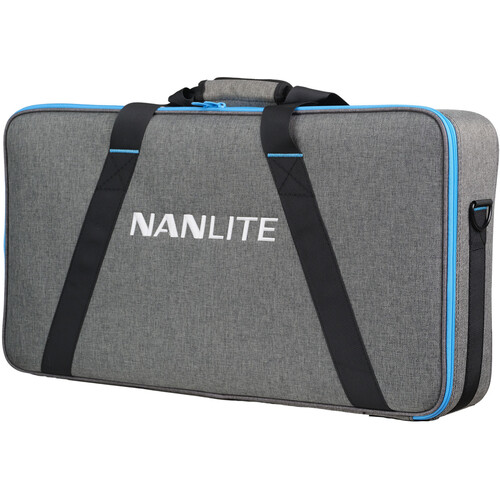

Sleek & durable storage bag

The included carrying case is robustly designed with internal compartments for convenient storage and reinforced seams for durability.

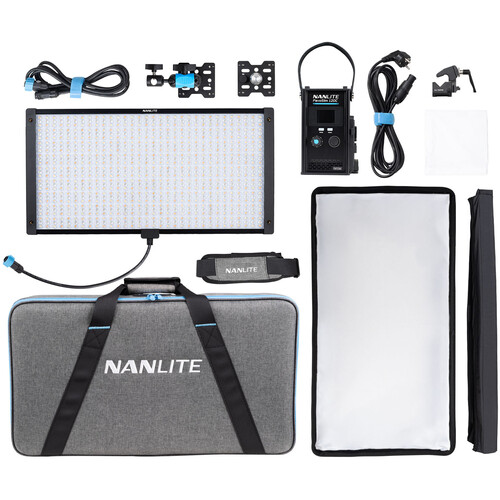

The PavoSlim 120C contains:

• PavoSlim 120C × 1
• Control unit × 1
• Universal holder × 1
• Quick release clip × 1
• Baby pin holder × 1
• DC connection cable 2.6 m × 1.
• AC power cable 4.5 m × 1
• Softbox × 1
• Diffusers × 2 (Standard Diffuser × 1 + Lite Diffuser × 1)

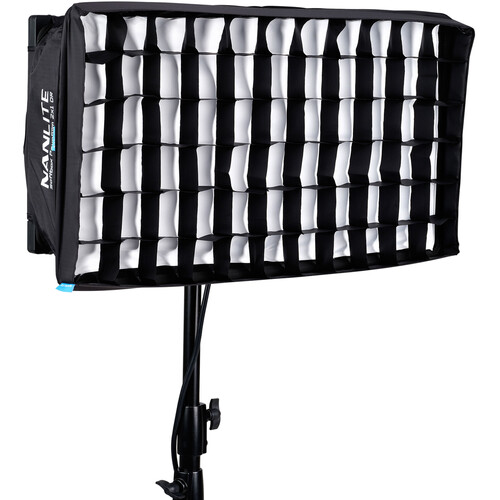

• Eggcrate × 1
• Carrying bag × 1
• User manual × 1
