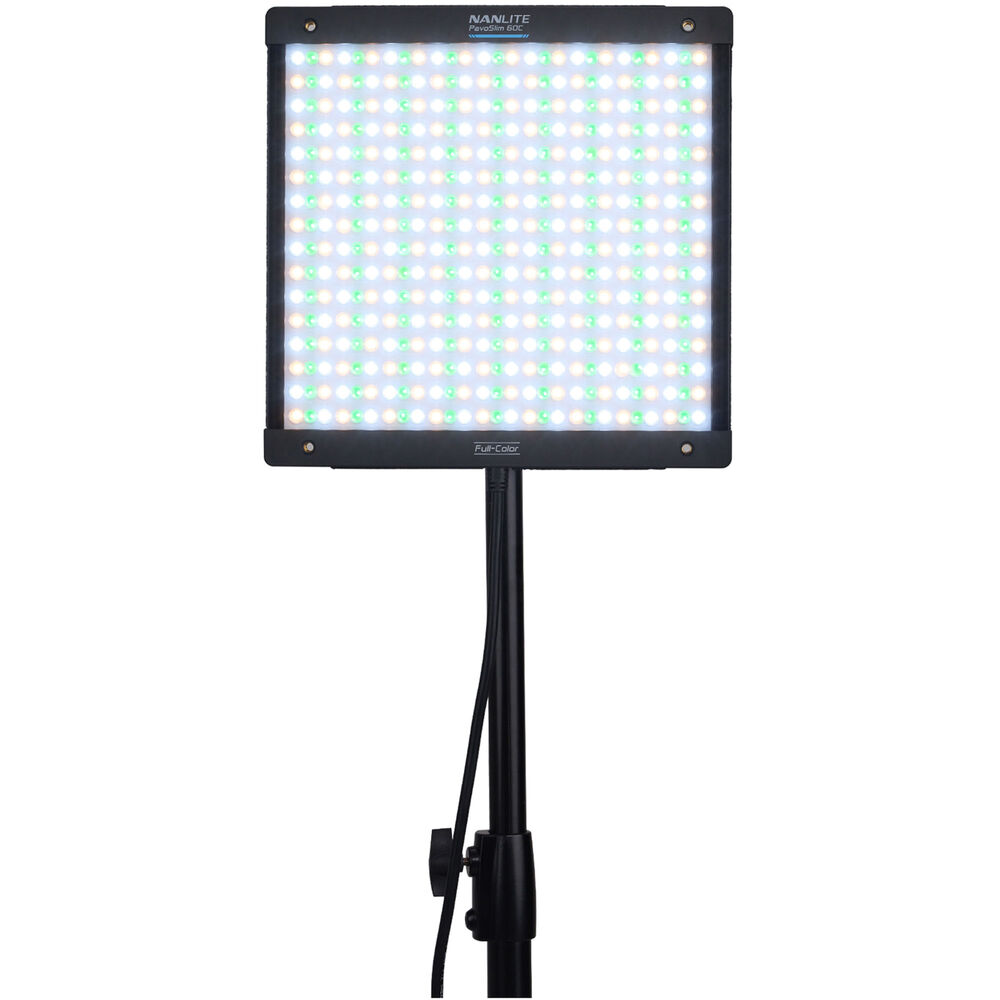

Nanlite PavoSlim 60C RGB LED Panel

Nanlite PavoSlim 60C RGB LED Panel

Nanlite has once again expanded the potential of the panel light source and introduces a new generation of LED panel light for creators: PavoSlim. PavoSlim combines a thin and lightweight design, quick and convenient installation, high luminance and accurate color rendering to provide full color PavoSlim 60C/120C. This innovation will give creators more flexible options to realize their visions.

Metal casing, efficient heat dissipation Accurate optical lens, efficiently converging light (achieving 4 times higher output compared to the average of similar products).

PavoSlim 60C

• Slim and lightweight yet robust (only 1.86 cm thick)
• Fast installation within one minute
• Wireless control Nanlink APP, LumenRadio CRMX
• Nominal power: 72W
• Weight: 0.94 kg
• Thickness: 1.86 cm

With its metal casing, PavoSlim 60C shows that slimness and robustness can coexist. Even when equipped with a full set of diffusers and installation accessories, it remains lighter and thinner than traditional light mats. This quality makes it indispensable for use in small studios, in places with low ceilings or on film and TV sets with stringent requirements.

Efficient design, maximum effect

The Nanlite team has designed a dedicated optical system for PavoSlim's single chip. By combining efficient heat dissipation with an excellent optical design, PavoSlim achieves a luminous flux that is 4 times higher than the average for similar products.

PavoSlim 60C: 7074lux@1m (light only, 5600K).

Quick installation

Every part of the PavoSlim 60C is designed for rapid deployment because every minute counts on the set. Even the accessories follow this philosophy and allow for easy and quick installation. Creators can easily complete the installation within one minute.

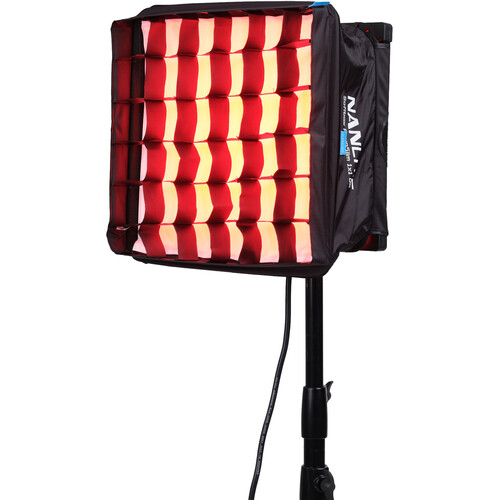

It is worth mentioning that the PavoSlim 60C softbox has an innovative compression design for quick set-up and take-down in seconds.

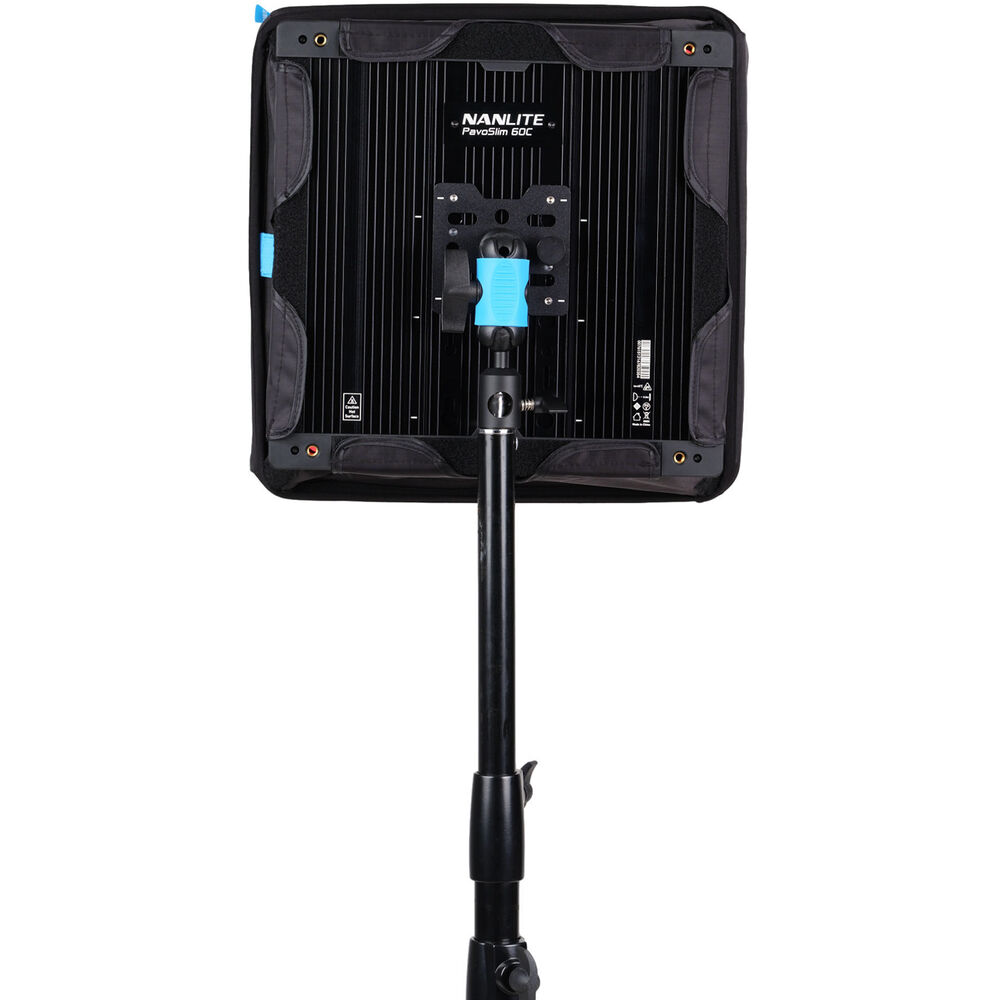

The back of the fixture has multiple sockets for flexible installation, and the controller is equipped with a quick release plate compatible with the quick release clamp (included) also used for the Forza II series fixtures (suitable for light stands and trusses). The controller can also be hung on the light stand using its strap.

Different modes

• With RGBWW color mixing technology, PavoSlim 60C provides several lighting modes.
• CCT mode: CCT range: 2700K-7500K (G/M±150) CRI: Average 96, TLCI: Average 97 TM-30 Rf: Average 94 Rg: Average 100 SSI 3200K: 83 5600K: 74
• HSI Mode: This mode allows quick adjustments to the hue, saturation and intensity of the light with a choice of 36000 colors.
• RGBW Mode: Four separate channels for red, green, blue and white color control, allowing for greater color precision.
• Gel Mode: With 151 built-in gels, this mode can recreate the colors of regular gels, eliminating the need to manually install them and providing convenience for creating ambient and emotional lighting.
• Effect mode: PavoSlim 60C is equipped with 15 effects and can simulate different lighting effects. The parameters of each effect can be adjusted on board, with more customized settings available via the Nanlink app, LumenRadio CRMX and DMX/RDM.

Professional control options

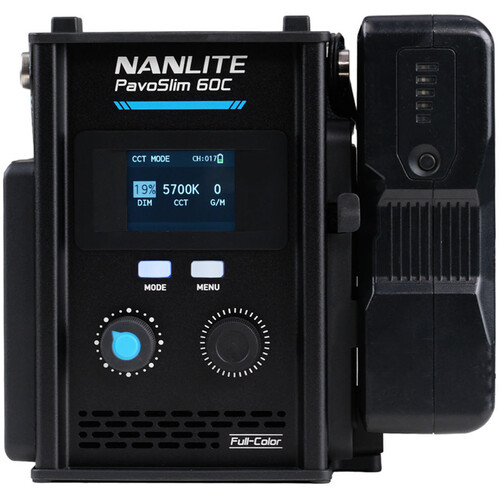

The PavoSlim 60C features an effects control unit with an intuitive two-button design, two dials and a two-inch screen.

With built-in 2.4G and Bluetooth modules, PavoSlim can be easily connected to the Nanlink app, facilitating wireless intelligent control of lighting in spaces such as studios. It can also be integrated with other Nanlite lights for varied stage lighting.

With wired DMX/RDM, PavoSlim can also be part of a standardized control system for film and TV, simplifying the implementation of lighting effects.

The PavoSlim 60C also features LumenRadio CRMX for wireless DMX/RDM reception, ensuring stability and flexibility for professional imaging.

Multiple power supply options, use anywhere

PavoSlim 60C offers different power supply methods. Both models support hot swapping between power sources, facilitating uninterrupted shooting.

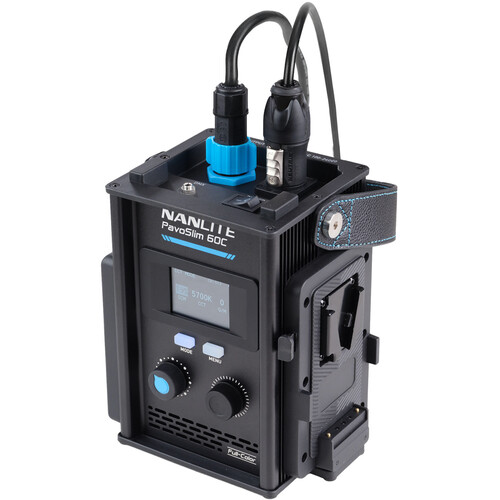

PavoSlim 60C power supply options:

• AC power supply
• 14.4-14.8V V-mounted battery
• 26V V-mounted battery

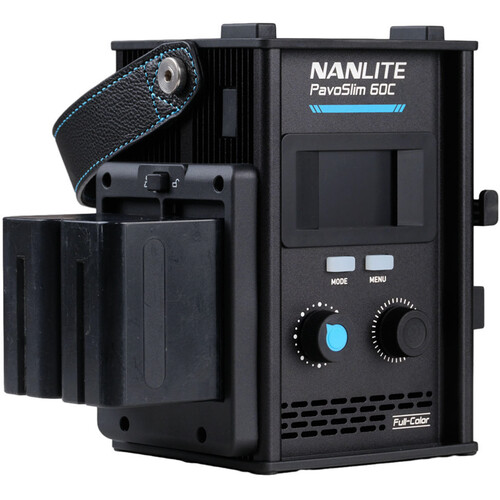

• 7.4V NP-F battery (×2)

Several accessories

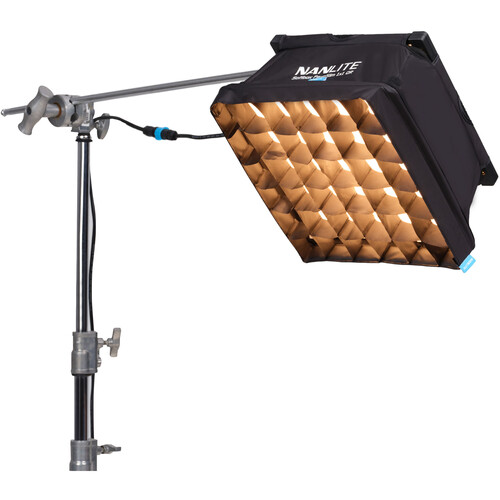

Accessories include a magnetic base adapter with 1/4"-20 thread for each corner of PavoSlim, an extension cable, softboxes in collapsible and compressible options.

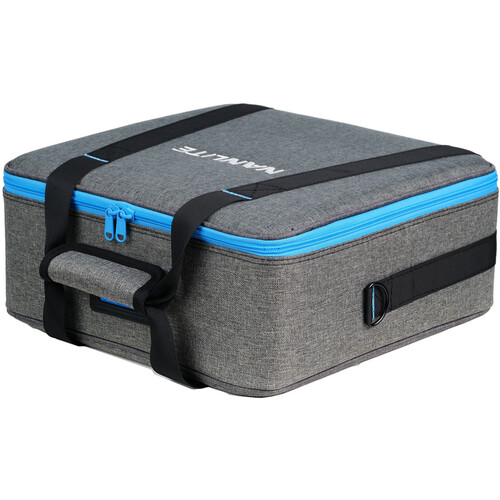

Cord & durable case

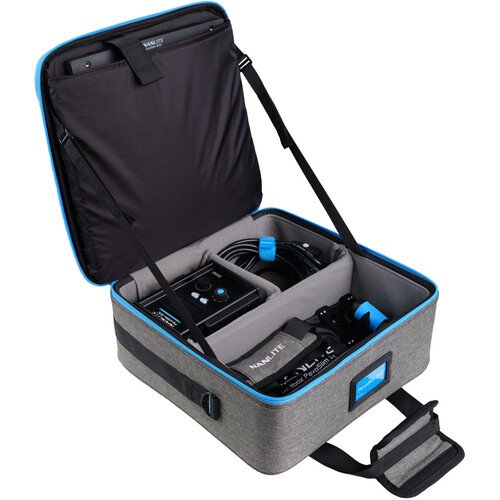

The included case is robustly designed with internal compartments for convenient storage and reinforced seams for long life.

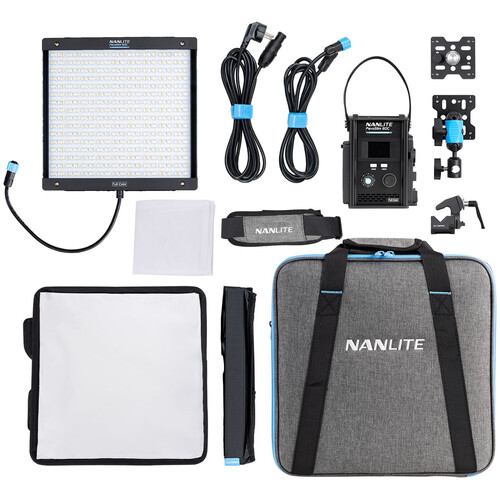

The PavoSlim 60C includes:

• PavoSlim 60C × 1
• Control unit × 1
• Universal holder × 1
• Quick release clip × 1
• Baby Pin Holder × 1
• DC connection cable 2.6 m × 1.
• AC power cable 4.5 m × 1
• Softbox × 1
• Diffusers × 2 (Standard diffuser × 1 + Lite diffuser × 1)
• Eggcrate × 1
• Carrying bag × 1
• User manual × 1
