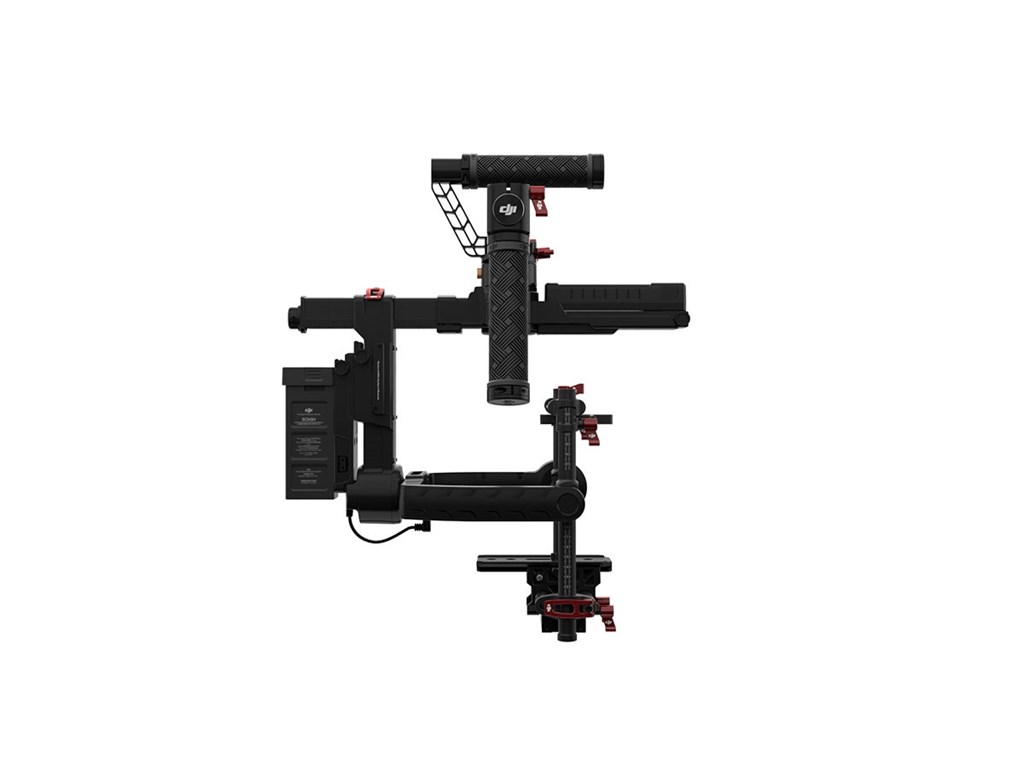

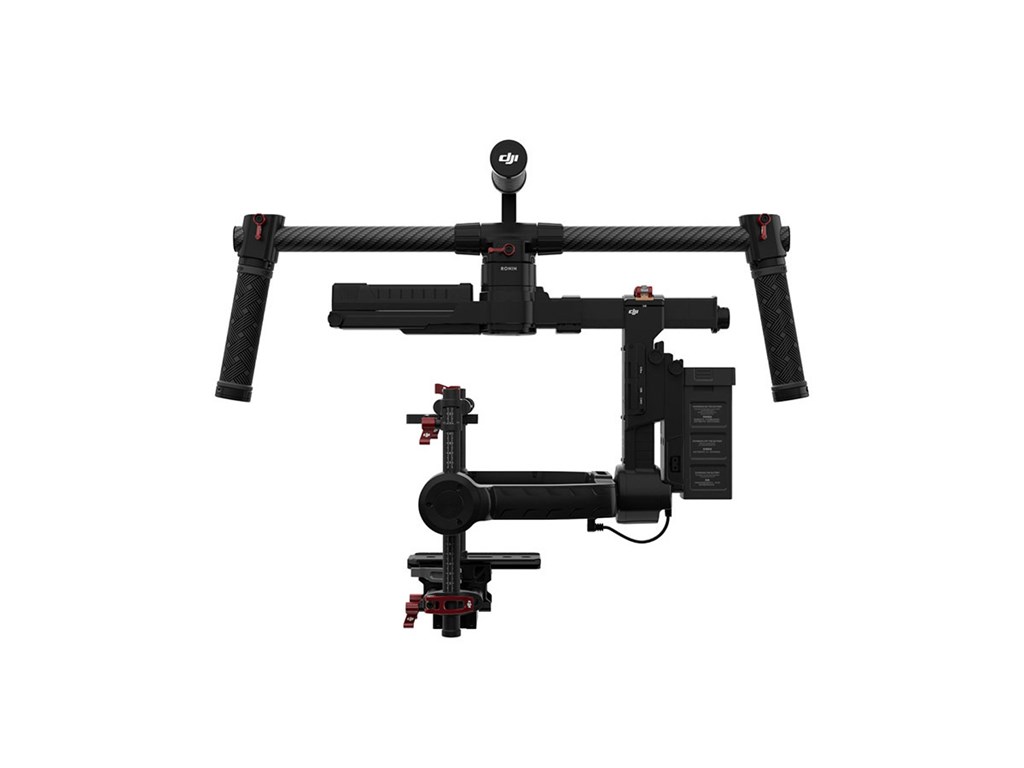

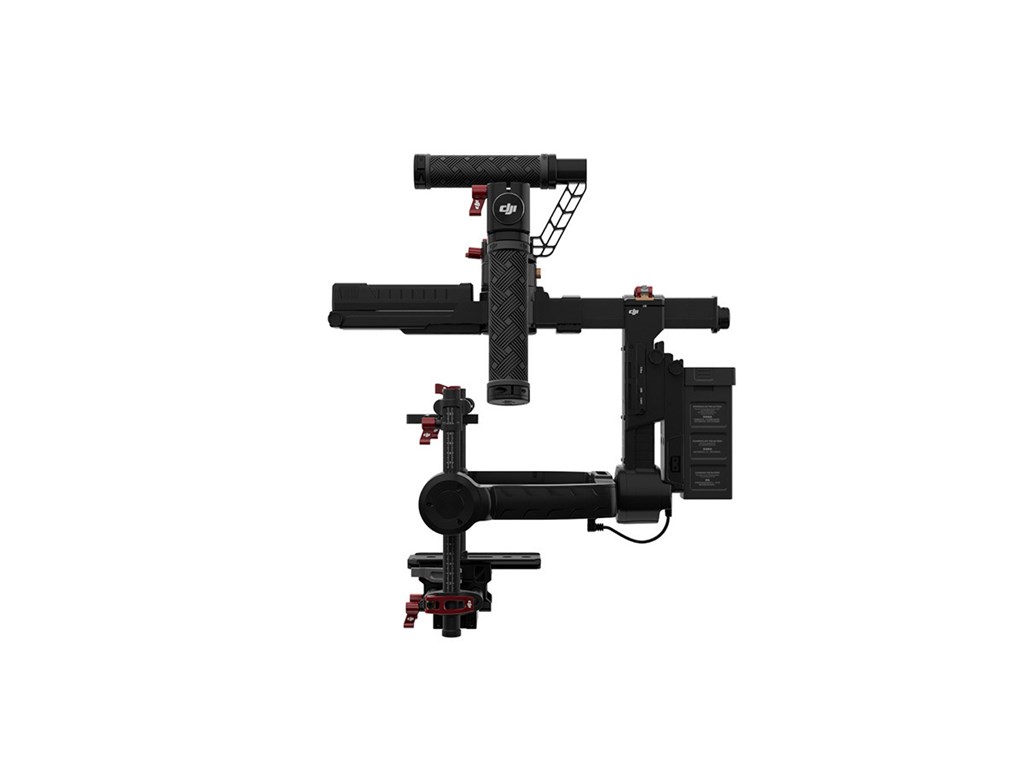

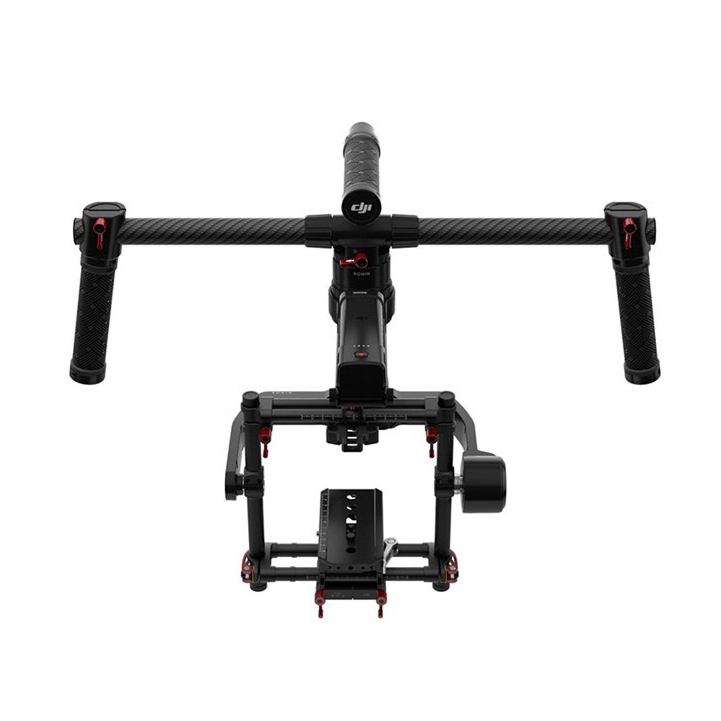

DJI Ronin-MX Gimbal Stabilizer

The Ronin-MX from DJI is dual-use gimbal suitable both for mounting on the Matrice 600 aerial platform as well as deployment closer to the ground. Improving over the Ronin-M, it features magnesium construction to yield high rigidity while keeping the weight down. The gimbal is suitable for cinema cameras, mirrorless cameras, and DSLRs weighing up to 10 pounds. Out of the box it supports two-operator operation, and includes a radio controller (transmitter) for the camera operator. There is also an optional Thumb Controller (available separately) for solo operation. When installed on the Matrice 600 aircraft, the gimbal can be controlled via the DJI GO app. An included universal mounting adapter allows it to be adapted for use with jibs, car mounts, and various other types of camera support equipment. There is also a handlebar for handheld use.
Video:


Built to Perform
Designed to resist high G-forces using powerful motors and IMUs, the Ronin-MX is engineered to maintain stability and hold horizon when mounted to an aircraft or a vehicle. When mounted to the Matrice 600 aerial system, it communicates directly with DJI's flight controller. When attached to vehicles, it connects to an optional GPS module that allows it to stabilize actively for a smoother shot

Wireless Control and Transmission
The Ronin-MX is compatible with Lightbridge 2, providing long-range HD video transmission from the air to the ground from up to 3.1 miles away. If combined with the separately available DJI Focus and Focus Expansion Module, focus or aperture can also be pulled remotely with a twist of the wrist. An optional Remote Start/Stop add-on provides the ability to control shooting on a range of airborne cameras

App Control
Using DJI Assistant and the dedicated Assistant app for iOS and Android allows complete customization of the Ronin-MX and its behavior. If connected to Lightbridge 2, the DJI GO app can be used to control the gimbal and see an HD live feed from the camera


Power

Strengthened Motors and ESCs
A combination of stronger motors and ESCs makes the Ronin-MX 50% more powerful than the Ronin-M. This additional stiffness and power allows the system to better withstand wind resistance, when mounted to moving vehicles and aircraft, as well as more rapid movements

External Camera Battery
Cameras such as the RED EPIC need an external battery for power. A dedicated position designed for an optional battery plate provides an easy, cable-free mounting point for a second DJI Intelligent Battery. This provides two 12V D-Tap power sources for powering cameras and accessories

Intelligent Batteries
Ronin-MX batteries offer a battery life of up to three hours. Over-charge and over-depletion protection are built in, as is individual cell charge balancing. Remaining power is shown by clear LEDs and in the DJI GO app

Built-In Power Distribution
A dedicated power distribution box keeps wiring to a minimum while providing power to essential accessories. Two regulated 12V D-Taps, one 500mAh full-size USB connector, and a DJI Lightbridge connector enable connectivity and power to nearly everything a filmmaker might need

Three Operation Modes
Upright Operation Mode
Upright Mode allows the gimbal to be flipped over so the camera can be operated closer to eye level without straining to lift the gimbal. This can be used in various situations, such mounting on the top of the vehicle

Underslung (Suspended) Operation Mode
Suspended Operation Mode is the standard operation mode for Ronin-M. Low slung, close to the ground, or simply holding the gimbal in front of you offers stabilized handheld footage. This mode would also be used when mounted the gimbal on a flying platform such as a multirotor RC helicopter

Briefcase Mode
When a slimmer gimbal profile is needed – such as when moving through doorways or narrow paths – Briefcase Mode is ideal. It allows the gimbal to be held to the side and close to the legs, much like a briefcase

Included:
DJI Ronin-MX 3-Axis Gimbal Stabilizer
Handle Bar
2.4 GHz Remote Control
Tuning Stand
2 x Intelligent Battery
Charger
Cable Pack
Micro-USB Cable
Camera Mounting Plate
Upper Mounting Plate
Vibration Absorber
2 x Camera Screw A (1/4"-20)
2 x Camera Screw B (3/8")
2 x Camera Screw C (1/4"-20)
2 x Camera Screw D (3/8")
Lens Support
4 x Allen Wrench
