Aputure Spotlight Mount Set 19° Lens

Aputure Spotlight Mount Set 19° Lens

A whole new class

The world’s first Bowens spotlight mount. Achieve a greater degree of control with the Spotlight Mount’s internal shutter blades for sharp cuts. Acquire pinpoint accuracy when projecting your light with your choice of 3 different lenses.

PRECISION OPTICS

In addition to allowing the 120d II to produce 10 times its original output, the high-resolution lenses produce an even beam of light, with minimal light falloff on the edges, while maintaining a shift in color temperature of less than 200 degrees Kelvin.

MINIMAL EDGE FRINGING

The Spotlight Mount’s new lens technology minimizes chromatic aberrations around the edge of the illumination circle. Compared to similar ellipsoidal fixtures, the Spotlight Mount significantly decreases its edge color fringing to a mere 1mm.

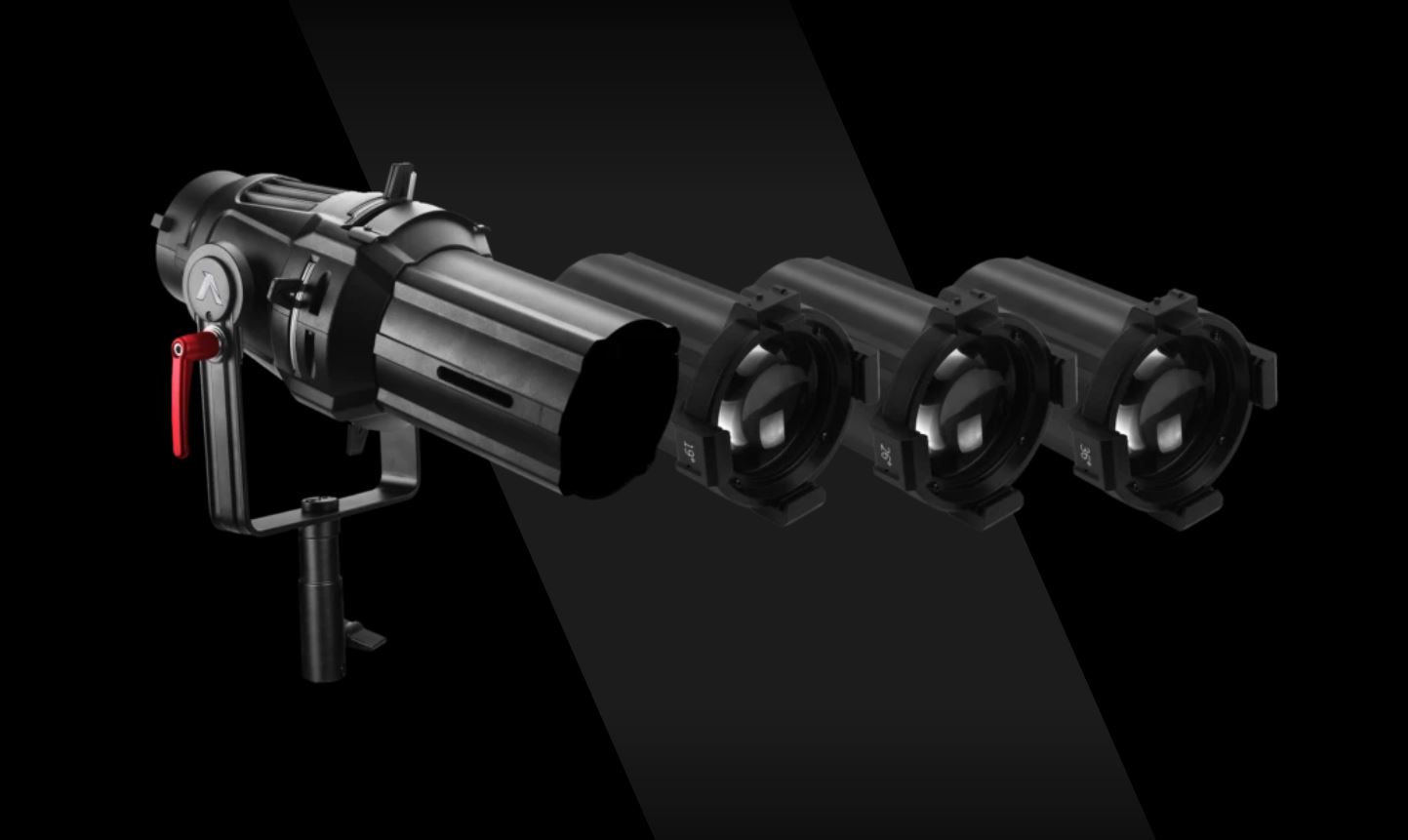

LIGHT SHAPING CONTROL

The Spotlight Mount also offers simple user-interchangeability between Aputure’s 19°, 26°, and 36° lenses. Combined with the internal shutters, filmmakers will be able to gain more control of the shape of their light.

ADD FLAIR TO YOUR SET

With the included B-size Gobos, Gobo Holder, and gel frame the Spotlight Mount allows for even further light manipulation, to easily project any shape or color you can think of.

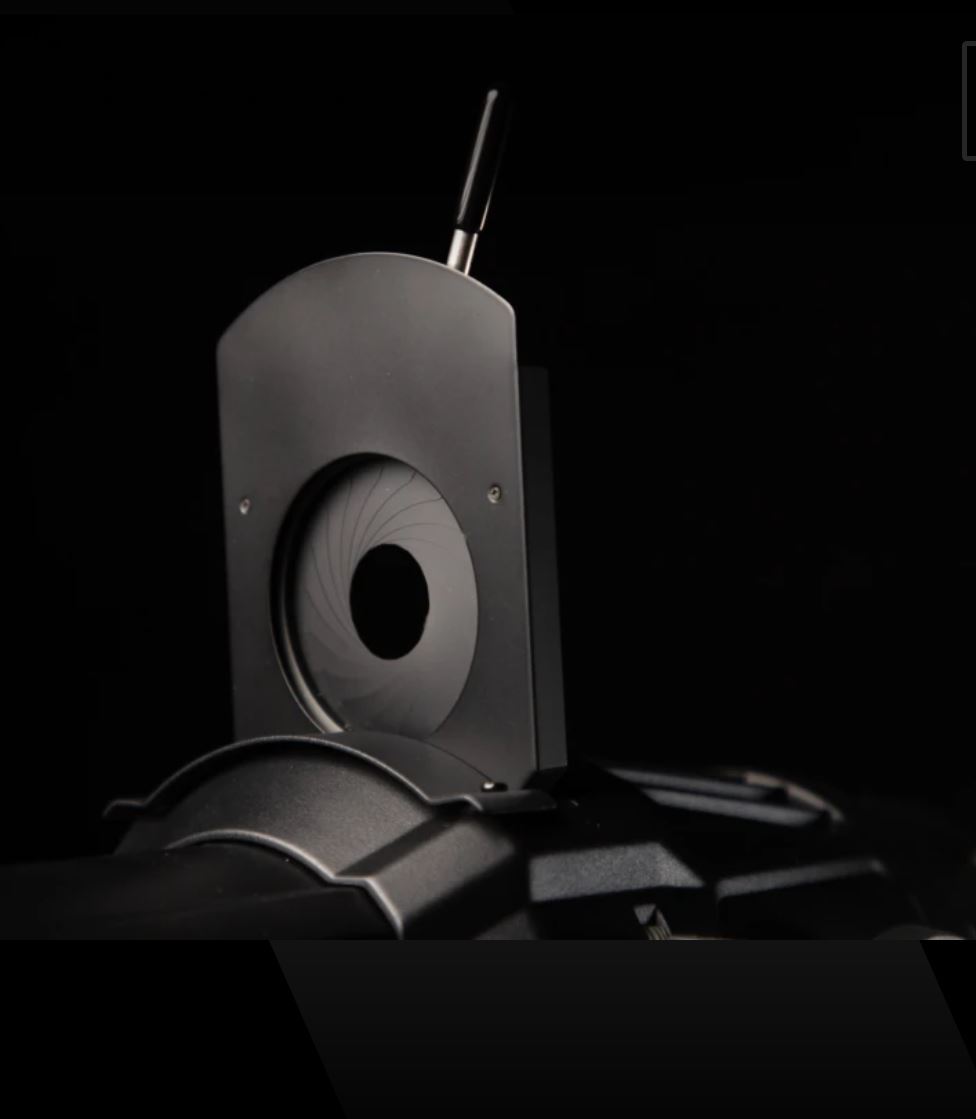

OPTIONAL IRIS

The optional 18-bladed iris also allows filmmakers to further hone in the shape and size of the Spotlight Mount’s light output.

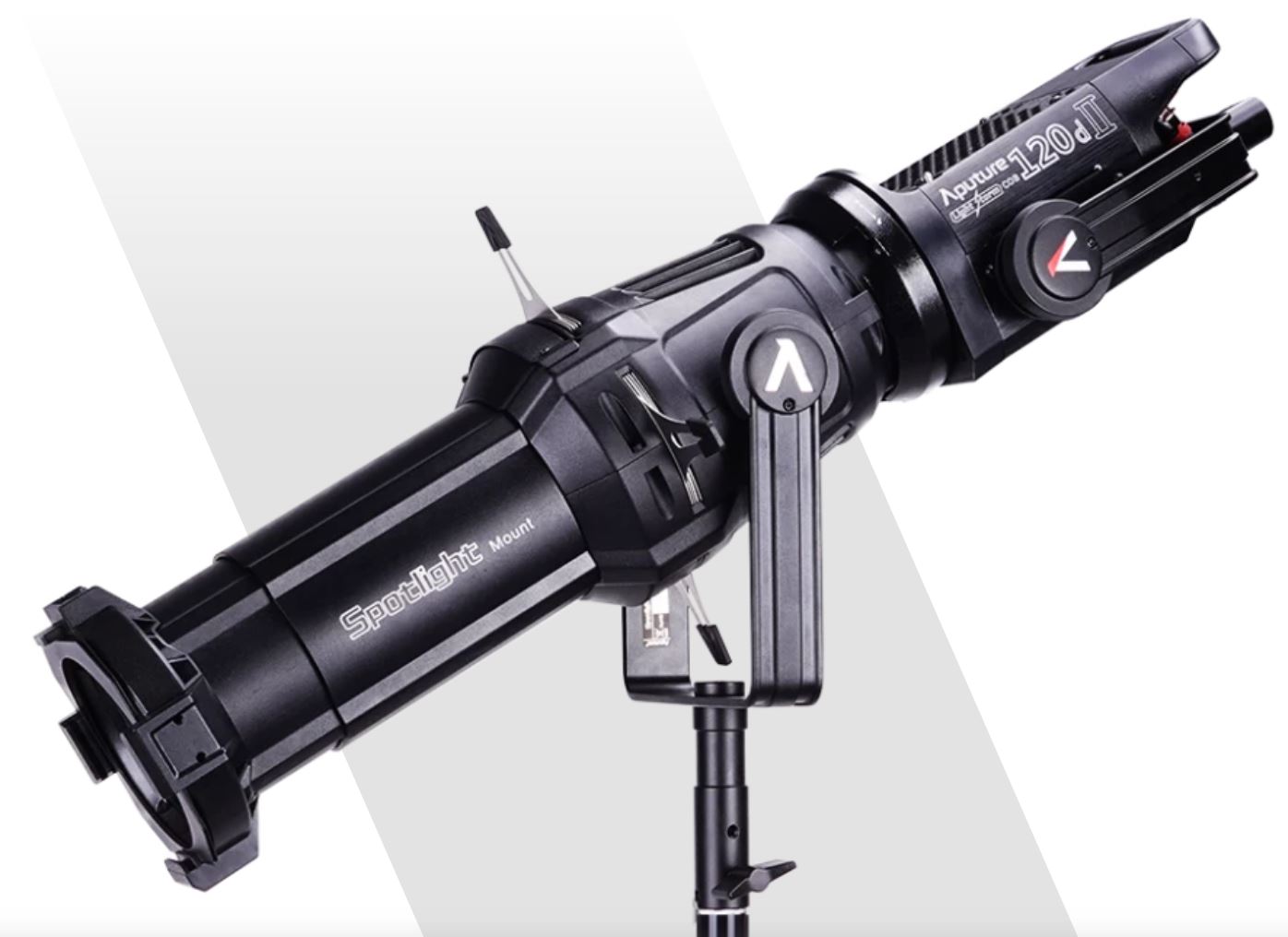

MODULAR DESIGN

The Spotlight Mount maintains our philosophy of versatility and modularity by utilizing the Bowens mount for use with our 120d Mark II and 300d lights.

DUAL JUNIOR/BABY MOUNT

The Spotlight Mount was designed with rigging in mind. We gave the Aputure Spotlight a dual Junior/Baby mounting pin so it can be attached to anything from a C-Stand to a Combo Stand or underslung from a lighting grid.

DURABLE METAL BODY

With an aluminum alloy die-cast metal body, the Spotlight Mount maintains Aputure’s standards for durability while utilizing a more lightweight design than typical tungsten ellipsoidal lights.

SPECIFICATIONS

Distance    Model            Lux (No modifier)    19° (Lux/Beam Diameter)    26° (Lux/Beam Diameter)    36° (Lux/Beam Diameter)
1m    C120d II    6100    62200 / 25cm    37500 / 42cm    19620 / 60cm
C120d    3900    37300 / 25cm    24450 / 42cm    12970 / 60cm
C300d    9050    60000 / 25cm    46600 / 42cm    32500 / 60cm

1.5m    C120d II    2464    23590 / 42cm    13900 / 66cm    8040 / 90cm
C120d    1742    15740 / 42cm    9910 / 66cm    5870 / 90cm
C300d    3770    24330 /42cm    20100 / 66cm    12350 / 90cm

3m    C120d II    711    6280 / 90cm    3620 / 133cm    2175 / 180cm
C120d    457    3860 / 90cm    2387 / 133cm    1376 / 180cm
C300d    1109    5970 / 90cm    4910 / 133cm    3250 / 180cm
5m    C120d II    300    2283 / 154cm    1280 / 220cm    772 / 300cm
C120d    187    1435 / 154cm    855 / 220cm    509 / 300cm
C300d    460    2300 / 154cm    1872 / 220cm    1270 / 300cm

10m    C120d II    105.3    554 / 314cm    318 / 440cm    196.8 / 600cm
C120d    72.9    372 / 314cm    232 / 440cm    144.5 / 600cm
C300d    161.3    569 / 314cm    498 / 440cm    332.7 / 600cm
SIZE
Product Dimensions    434.5x218.7x357mm/17.1x8.6x14.1"
Box Dimensions    455X290x260mm/17.9x11.4×10.2″
WEIGHT
19°    4.59kg / 10.1lbs
26°    5.02kg / 11.1lbs
36°    5.11kg / 11.3lbs
