Kupo KCP-654 2"""" Coupler w/ A Swivel Camera Mounting Plate
- Leasing online direkt i kassan via SveaCheckout
- Vi prismatchar! Maila oss på contact@voosestore.com för förfrågan.
- VarumärkeKupo
Beskrivning
Art.nr: 26277

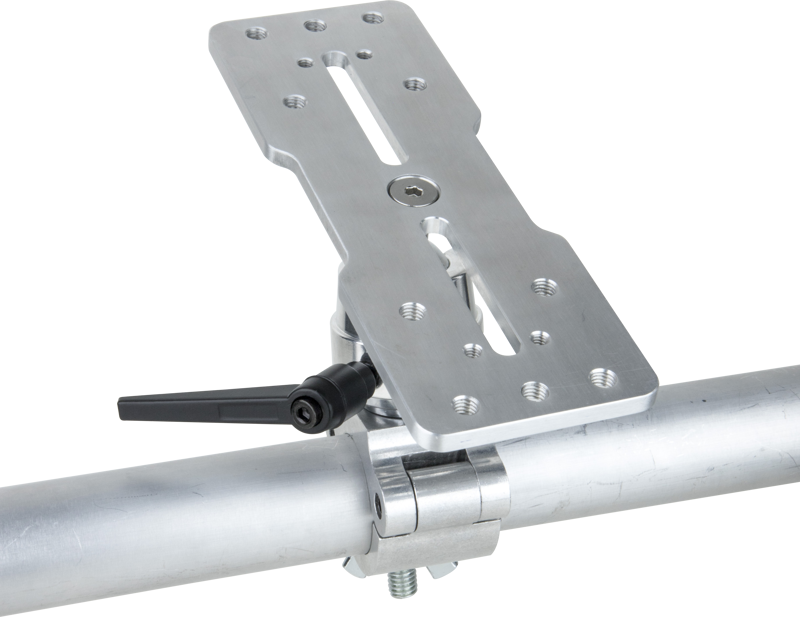

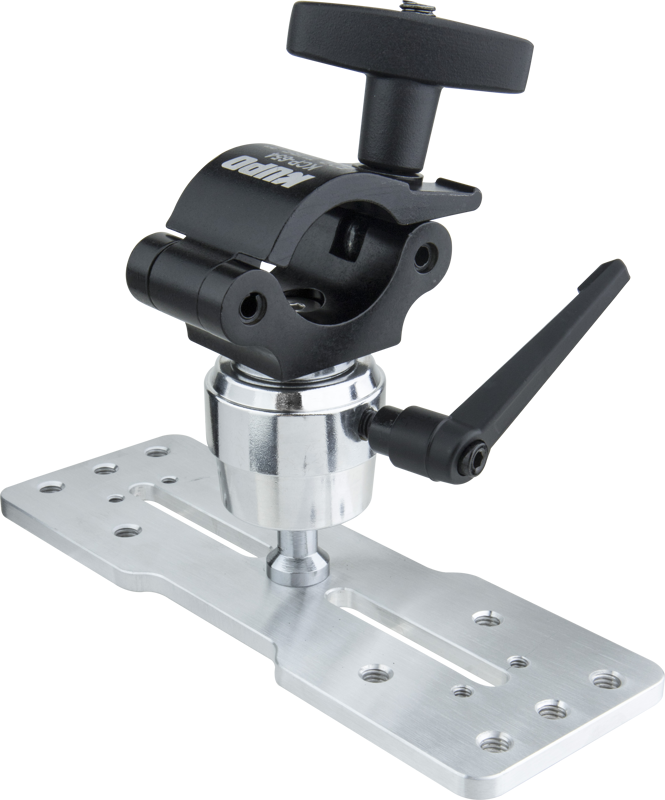

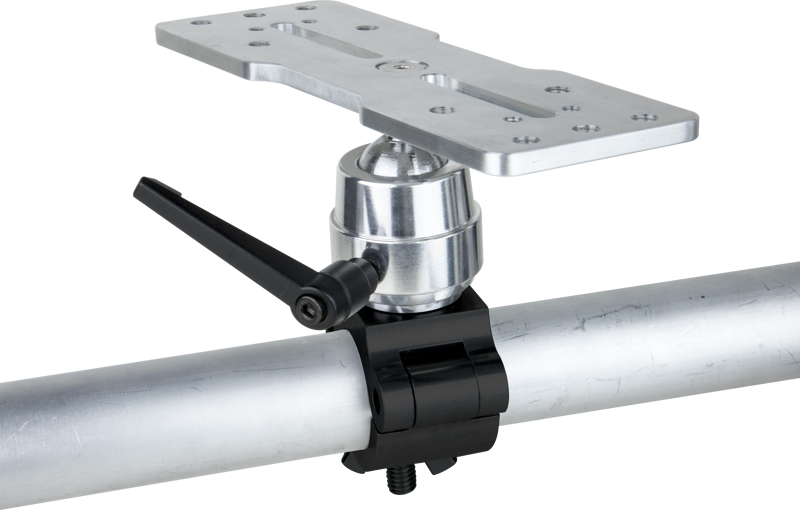

Kupo KCP-654 2" Coupler with Swivel Camera Mounting Plate — 2" Tube Mount for Fast Car Rigging
Kupo KCP-654 kombinerar en svängbar kamerafästeplatta med en robust 2" rörcoupler. Den monterar videokameror snabbt och möjliggör snabb och enkel bilmontering. Tillverkad av kraftigt stål och aluminium med hög draghållfasthet, förenar denna enhet hållbara material med flexibla justeringsmöjligheter.
Key features
- Heavy-duty steel construction for the ball head and camera mounting plate.
- High tensile-strength aluminum coupler designed for 2" (48–51mm) tubes.
- Swivel ball head plus ratchet handle for precise camera positioning.

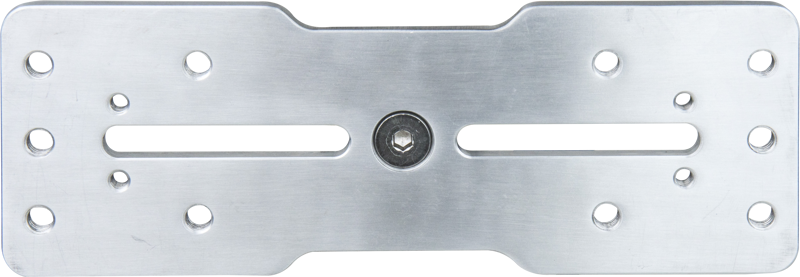

- Camera plate with a standard hole pattern, threaded bore, and slots to accept dovetail slide plates or direct camera attachment.
- Designed with car-mount rigging and other on-location mounting needs in mind.
How it mounts and adjusts
Couplern fästs på 2" (48–51mm) rör och säkras via aluminiumkroppen med hög draghållfasthet. Det monterade kulleden har ett spärrhandtag för att låsa kameran på plats efter justering. Eftersom kameraplattan inkluderar ett standard hålmönster, gängad borrning och spår, kan du fästa en dovetail-glidplatta eller montera en kamera direkt utan extra adaptrar.
Use cases
Använd KCP-654 när du behöver en snabb, tillförlitlig monteringspunkt på ett 2" rör för bilriggar, locationinspelningar eller någon annan applikation som kräver ett svängbart kamerafäste. Kombinationen av spärrhandtaget och kulleden gör att du kan ställa in kameran i varierande cirkulära vinklar samtidigt som du behåller ett säkert lås.
Benefits at a glance
- Fast setup for vehicle or pipe-mounted camera installations.
- Flexible positioning with a ratchet-locking ball head.
- Direct compatibility with dovetail slide plates and common camera mounting patterns.
- Durable materials suited to field use.
Specifications
| Specification | Value |
|---|---|
| Model | KCP-654 |
| Coupler tube size | 2" (48–51mm) |
| Construction material (ball head / plate) | Heavy-duty steel |
| Coupler material | High tensile-strength aluminum |
| Mounting plate features | Standard hole pattern, threaded bore and slots for dovetail slide plate or direct camera mount |
| Adjustment | Ball head with ratchet handle |
| Weight | 1.85kg |
FAQ
Question: Will this coupler fit standard 2" tubing?
Answer: Yes. The KCP-654 is designed to fasten on 2" (48–51mm) tubes and secures via its high tensile-strength aluminum coupler.
Question: Can I mount a dovetail slide plate or attach the camera directly?
Answer: Yes. The camera plate includes a standard hole pattern with a threaded bore and slots, allowing a dovetail slide plate to be attached or a camera to be mounted directly.
Question: How do I secure the camera once I've positioned it?
Answer: Use the ratchet handle in combination with the ball head. First position the camera using the swivel ball head, then lock it in place with the ratchet handle for a secure hold.
Question: Is this product suitable for car mount rigging and field use?
Answer: Yes. The combination of heavy-duty steel components and a high tensile-strength aluminum coupler makes the KCP-654 well suited for car mounts and other on-location mounting applications that require reliable adjustment and durability.
